APB Configuration Interface
UG0331 User Guide Revision 15.0 788

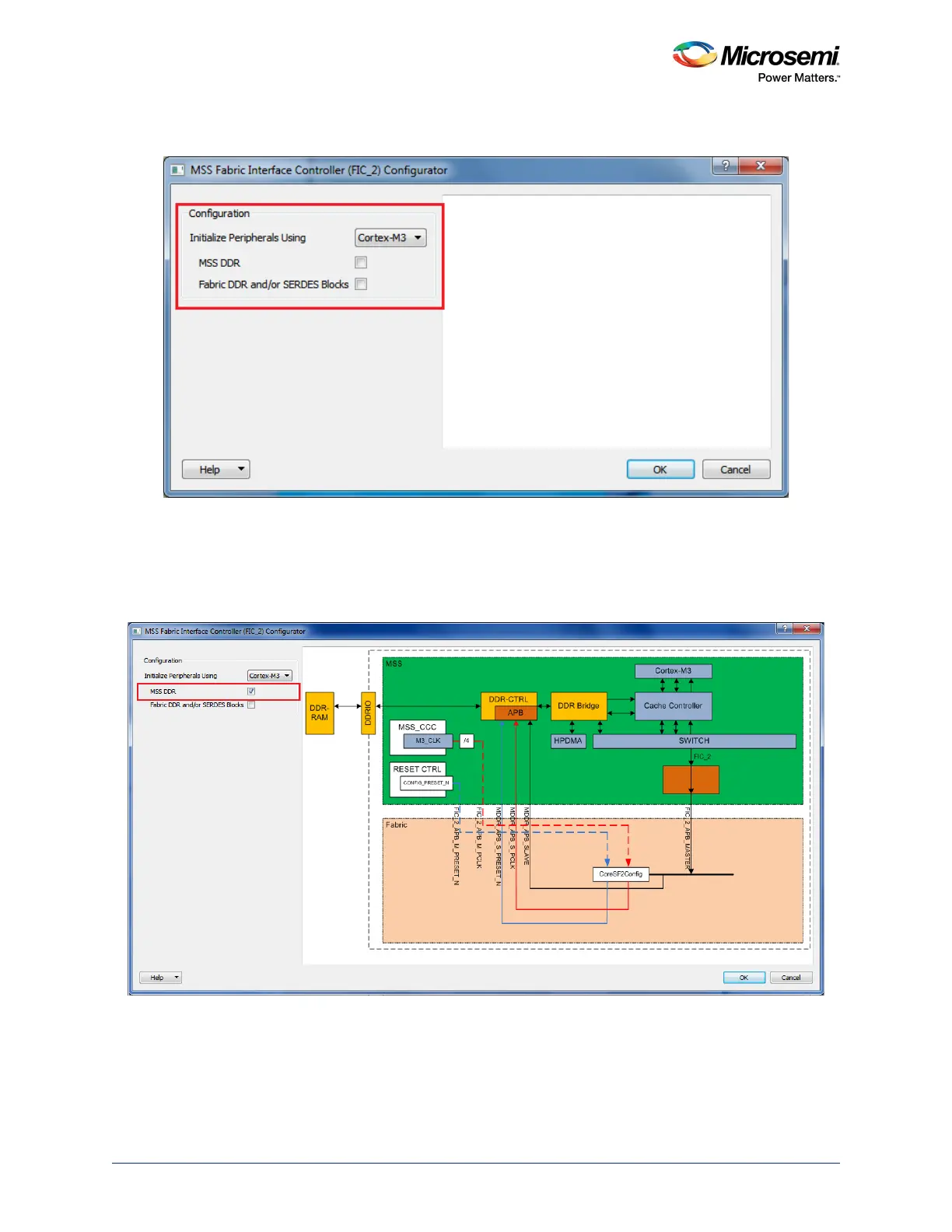

The following figure shows the FIC_2 configurator.
Figure 359 • FIC_2 Configurator
25.2.1.3 Step 3
Select either or both check boxes as required. If MSS DDR is selected, the FIC_2 Configurator shows
the graphical illustration of the connectivity between the FIC_2 APB master and MSS DDR APB slave
through CoreSF2Config, as shown in the following figure.
Figure 360 • FIC_2 Configuration for MSS DDR
