Cortex-M3 Processor (Reference Material)
UG0331 User Guide Revision 15.0 53
3.6.3.4.3 LSL
Logical shift left by n bits moves the right-hand 32 - n bits of the register Rm , to the left by n places, into the
left-hand
32 - n bits of the result. And it sets the right-hand n bits of the result to 0. See Figure 20, page 54.
You can use he
LSL #n operation to multiply the value in the register Rm by 2
n
, if the value is regarded as
an unsigned integer or a two’s complement signed integer. Overflow can occur without warning.
When the instruction is
LSLS or when LSL #n , with non-zero n , is used in Operand2 with the instructions
MOVS , MVNS , ANDS , ORRS , ORNS , EORS , BICS , TEQ or TST , the carry flag is updated to the last bit shifted
out, bit[
32 - n ], of the register Rm . These instructions do not affect the carry flag when used with LSL #0 .
•If
n is 32 or more, then all the bits in the result are cleared to 0.
•If n is 33 or more and the carry flag is updated, it is updated to 0.

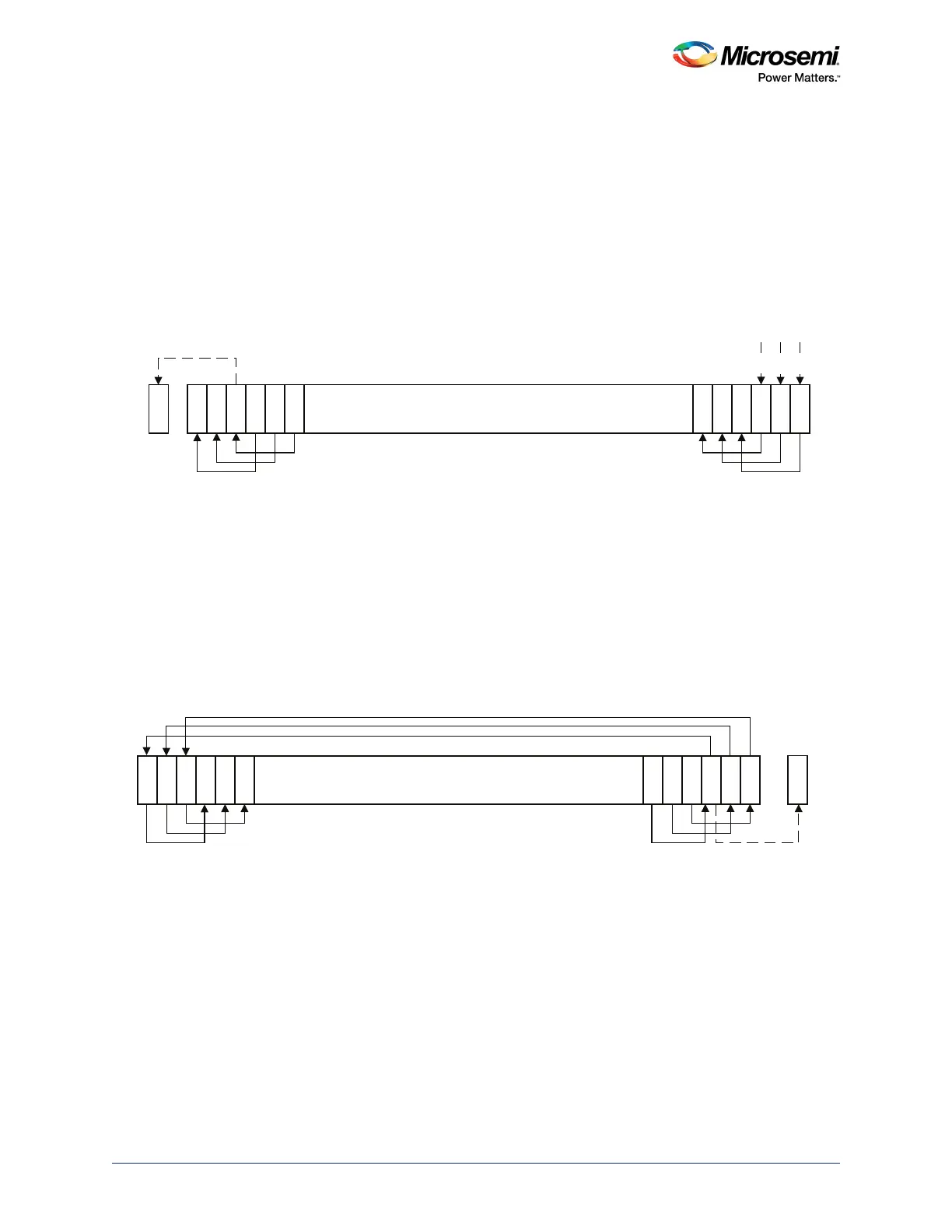

Figure 20 • LSL
3.6.3.4.4 ROR
Rotate right by n bits moves the left-hand 32 - n bits of the register Rm , to the right by n places, into the
right-hand 32 - n bits of the result. And it moves the right-hand n bits of the register into the left-hand n bits
of the result. See the following figure.
When the instruction is
RORS or when ROR #n is used in Operand2 with the instructions MOVS , MVNS , ANDS ,
ORRS , ORNS , EORS , BICS , TEQ or TST , the carry flag is updated to the last bit rotation, bit[ n -1], of the
register Rm .
•If
n is 32, then the value of the result is same as the value in Rm , and if the carry flag is updated, it is
updated to bit[31] of Rm .
•
ROR with shift length, n , more than 32 is the same as ROR with shift length n -32.
Figure 21 • ROR
031 5 4 3 2 1
Carry
Flag
00
0
Carry
Flag
031 5 4 3 2 1
