If a remote command is sent to the instrument that uses one of the Transducer Units
as a terminator, the instrument treats it as though DBUV had been sent as the
terminator.
When a Correction is turned on that uses a Transducer Unit, the Y Axis Unit changes
to that Transducer Unit. All of the selections in the Y-Axis Unit dropdown are then
grayed-out, except the Transducer Unit selection. The unit being used is shown on
this selection in square brackets, and appears on the control in square brackets
preceded by Xducer Unit.

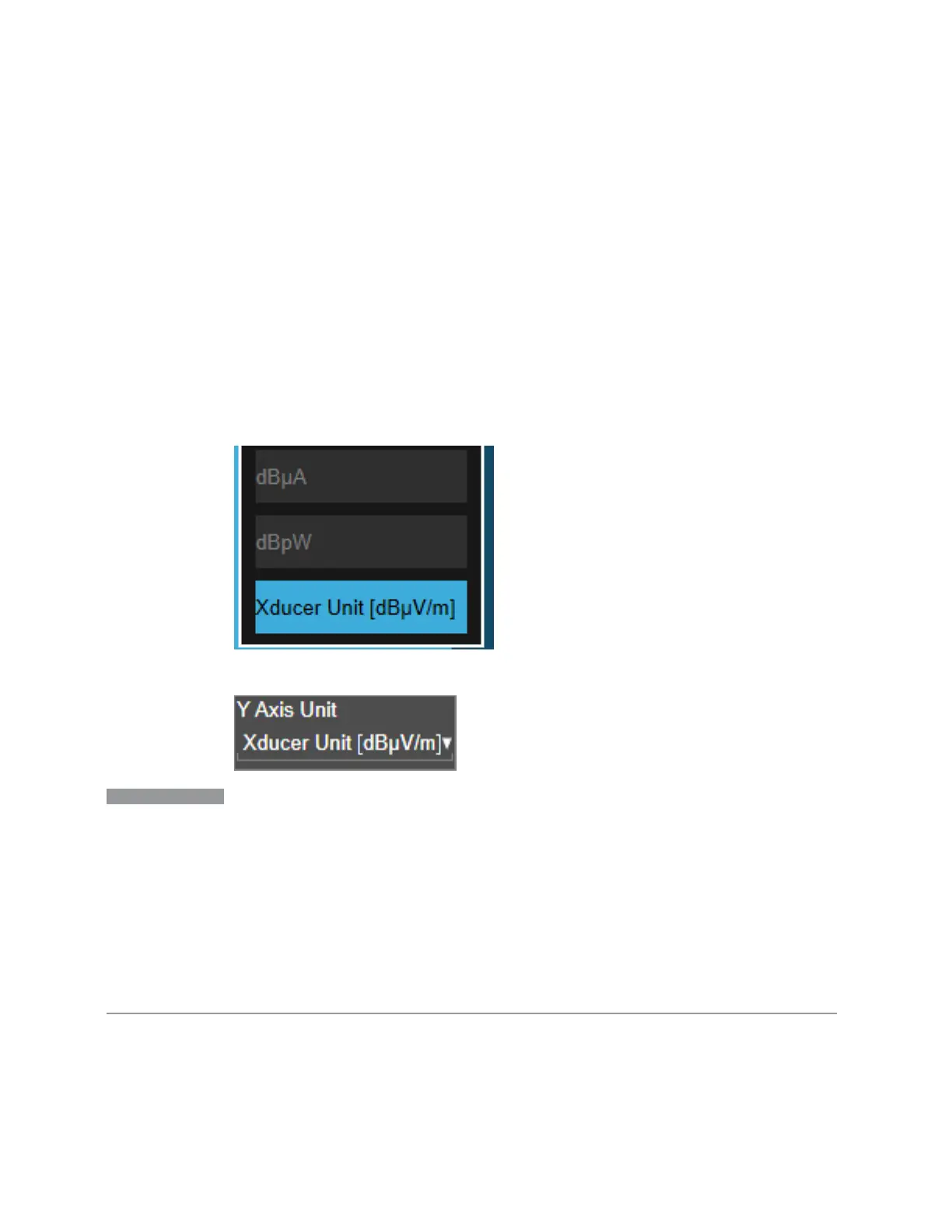

Example:
If the Transducer Unit in the Correction is dBmV/m, then the selection in the
dropdown looks like this:
And on the control it looks like this:
NOTE
If a Transducer Unit is set, it is displayed as Xducer Unit in the Y Axis Unit
dropdown. However, you can only
change
the Transducer Unit via the Edit
Correction dialog in the Input/Output, Corrections menu. In that dialog, tap
Settings then Transducer Unit. You can also turn off Transducer Unit from the
same menu, by selecting None.
If a Transducer Unit is set, it is displayed as Xducer Unit in the Y Axis Unit
dropdown. However, you can only
change
the Transducer Unit via the Edit
Correction dialog in the Input/Output, Corrections menu. In that dialog, tap
Settings then Transducer Unit. You can also turn off Transducer Unit from the
same menu, by selecting None.
The Transducer Units are:
