Keysight x-series User Manual

6 Input/Output
6.9 Calibration
6.9.1.1 Cal Group
This is the same as "Cal Group" on page 2518 in the Calibration tab.
6.9.1.2 Calibrate Checked Rows
Executes the Cals within the currently selected Cal Group that have the Calibrate
box checked in the RCal Configuration Table.

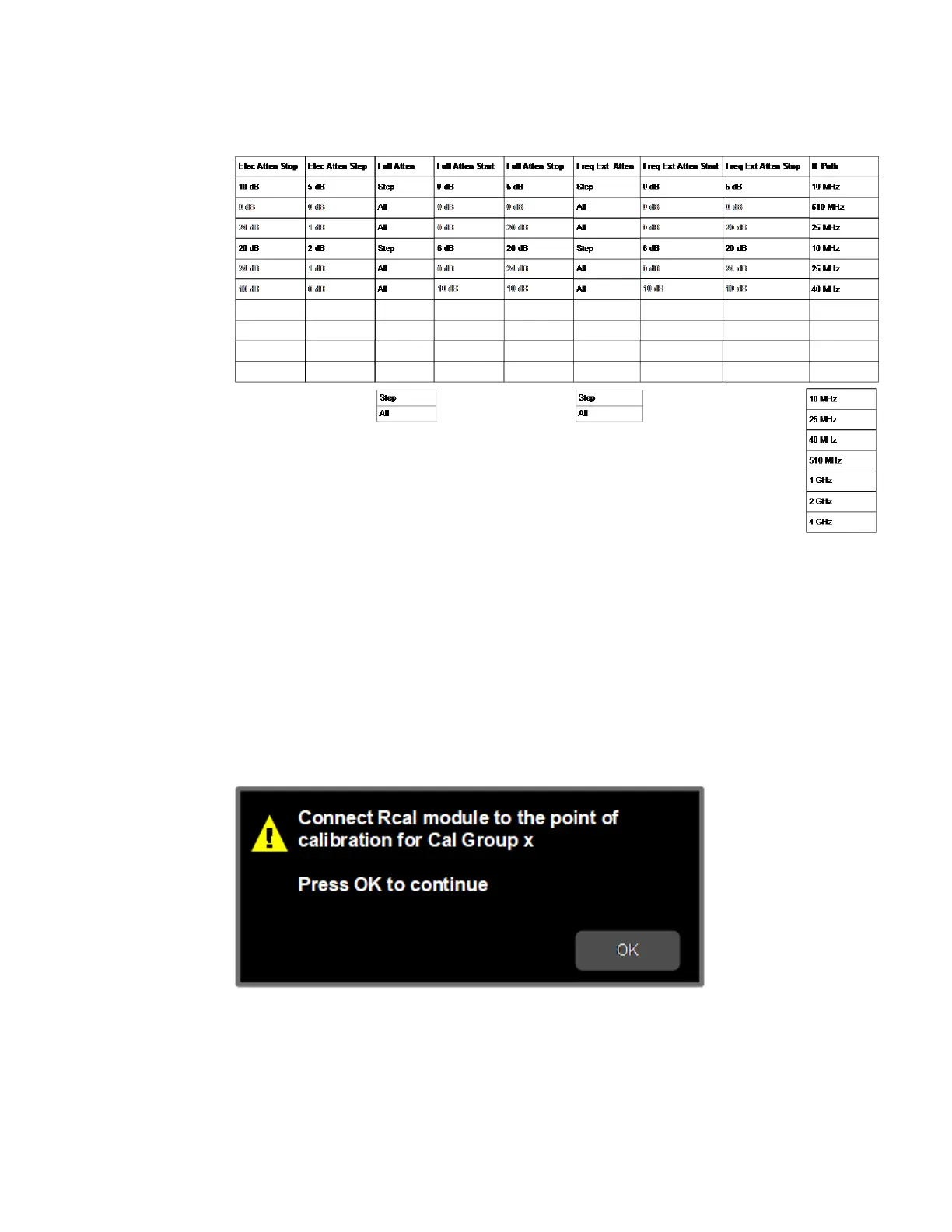

Once selected, the following dialog box is displayed;
When you click OK, the following dialog is displayed;
Spectrum Analyzer Mode User's &Programmer's Reference 2485

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
