Keysight x-series User Manual

3 Spectrum Analyzer Mode
3.9 SEM Measurement
3.9.12.2 Table

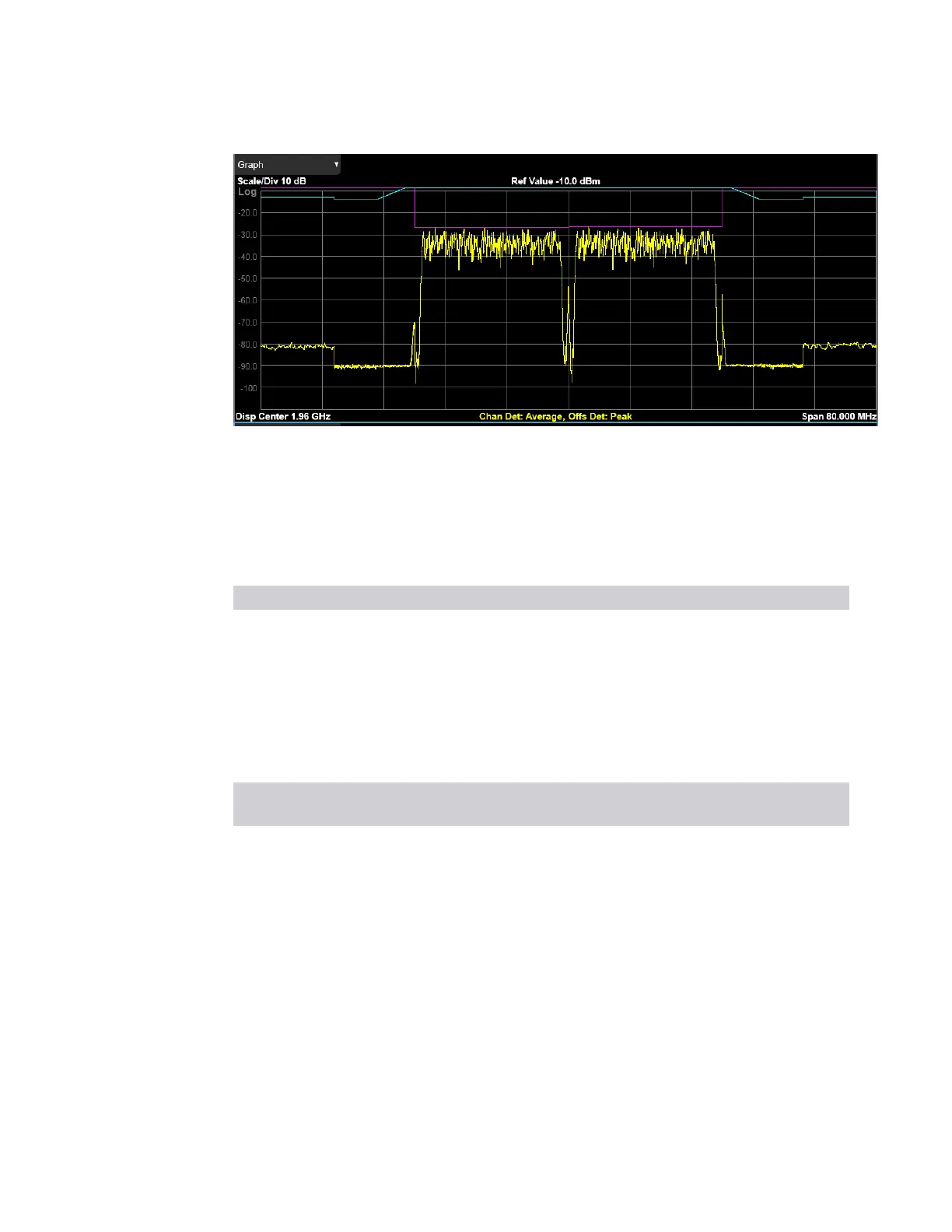

Displays textual results for the measurement. The Table differs depending on which
View you are in.
The views differ depending on the setting of "Measurement Type" on page 1700.
View Size Position
Abs Pwr Freq Two fifth, full width Bottom
Rel Pwr Freq Two fifth, full width Bottom
Integrated Power Two fifth, full width Bottom
Gate View One third, full width Bottom
Table Window in Abs Pwr Freq View
Name (Measurement
Type)
Unit, if any Corresponding Results
Power n = 1 2nd element
Absolute power at the reference area
Reference In multi-carrier applications, this column displays
which carrier is reference carrier
PSD Ref (PSD Ref) n = 5 1st element
Power spectral density
reference at the reference
area
Spectrum Peak ref
(Spectrum Pk Ref)
n = 5 1st element
Spectrum peak power
reference at the reference
area
1544 Spectrum Analyzer Mode User's &Programmer's Reference
