3 Spectrum Analyzer Mode
3.9 SEM Measurement
Remote
Command

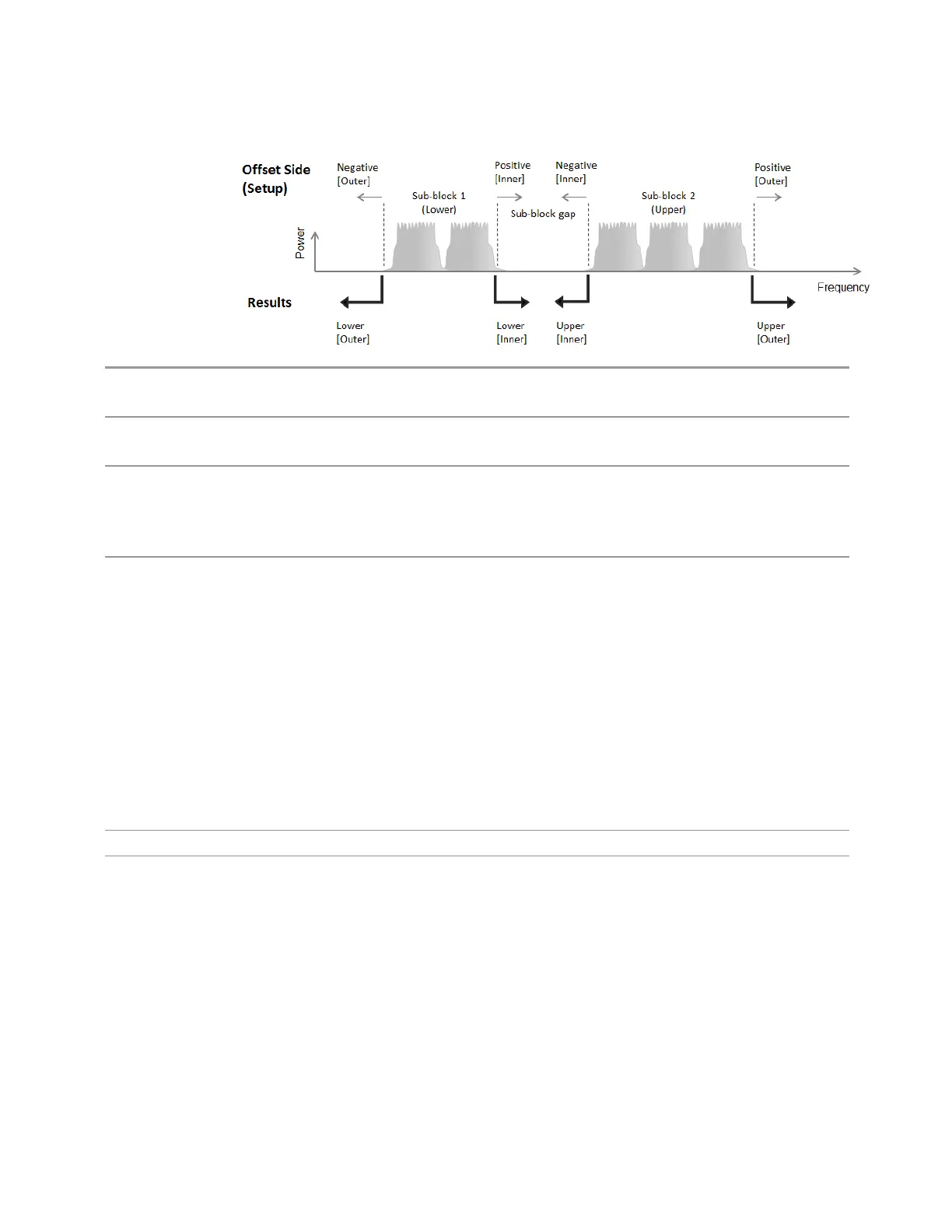

[:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:SIDE BOTH | NEGative | POSitive, …
[:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:SIDE?
Example
:SEM:OFFS:LIST:SIDE BOTH, NEG, NEG, POS, POS, POS
:SEM:OFFS:LIST:SIDE?
Notes Comma-separated list of values
OFFSet1 is for BTS, 2 for MS. Default is BTS
Note that Offset sub op code 2 is supported only in Modes other than SA. In SA Mode, Offset sub op
code 1 is used for both BTS and MS
Preset Modes LTEAFDD,LTEATDD, 5G NR, MSR:
BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH |
BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH
When the max number of offsets is 14:
Mode WLAN:
BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH,
BOTH
All Other Modes:
When the max number of offsets is 6:
BOTH, BOTH, BOTH, BOTH, BOTH, BOTH
When the max number of offsets is 12:
BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH, BOTH
State Saved Saved in instrument state
Range
BOTH|NEGative|POSitive
Limits
Enables you to set the power limits for start and stop frequencies of the selected
offsets.
Start Freq
Same as "Start Freq" on page 1631 under Offset (Bandwidth).
1648 Spectrum Analyzer Mode User's &Programmer's Reference
