Keysight x-series User Manual

7 Save/Recall/Print
7.5 Page Setup
7.5 Page Setup

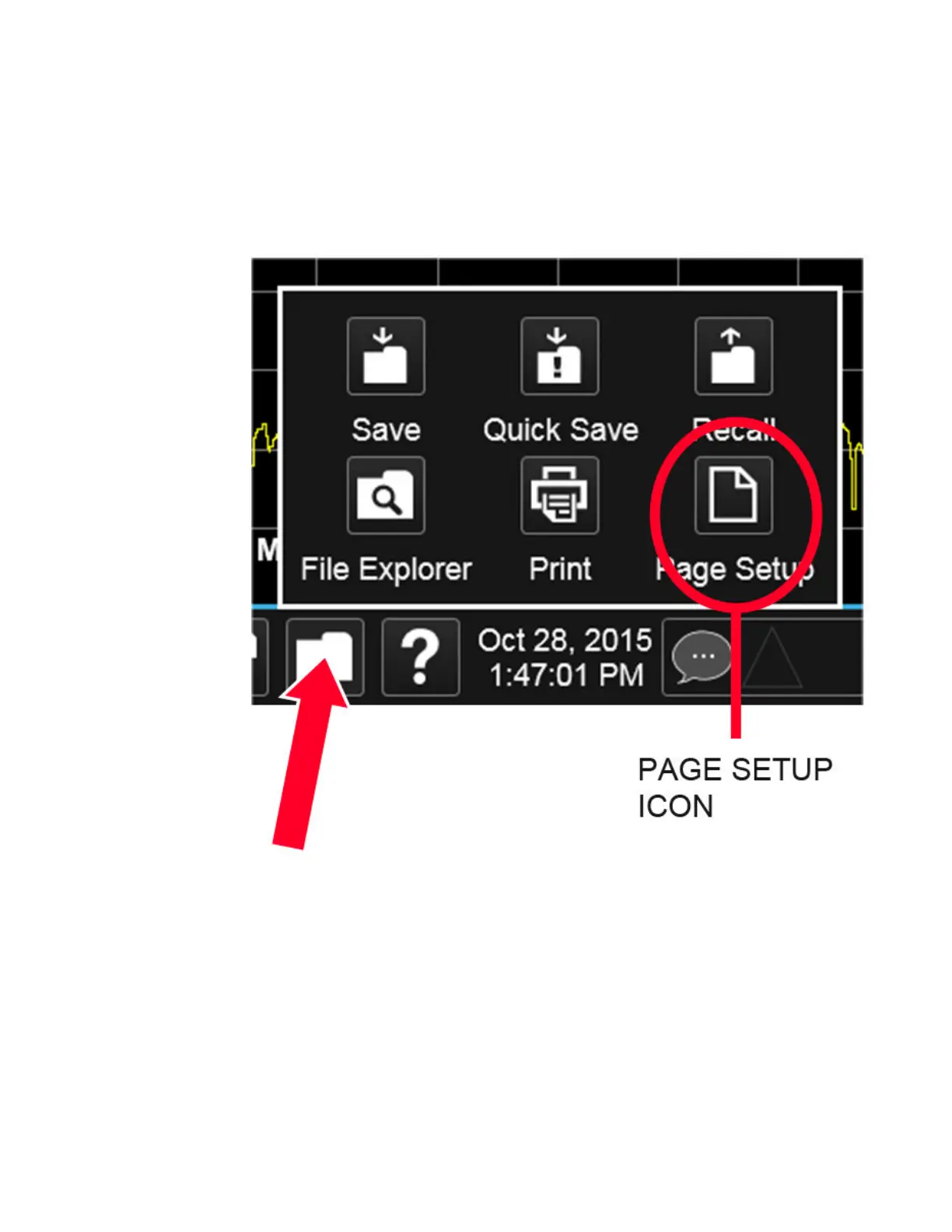

Opens a Windows Page Setup dialog that allows you to control aspects of the pages
sent to the printer when the PRINT hardkey is pressed.
Depending on the abilities of the attached printer, paper size, paper source, page
orientation and margins may all be set. There are no SCPI commands for controlling
these parameters.
The dialog also has a dropdown control to let you select the Display Theme to use
when printing. Page Setup themes are the same as those for Screen Image"Theme"
on page 2622.
The Theme control has a corresponding SCPI command:
Spectrum Analyzer Mode User's &Programmer's Reference 2630

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
