3 Spectrum Analyzer Mode
3.2 Swept SA Measurement

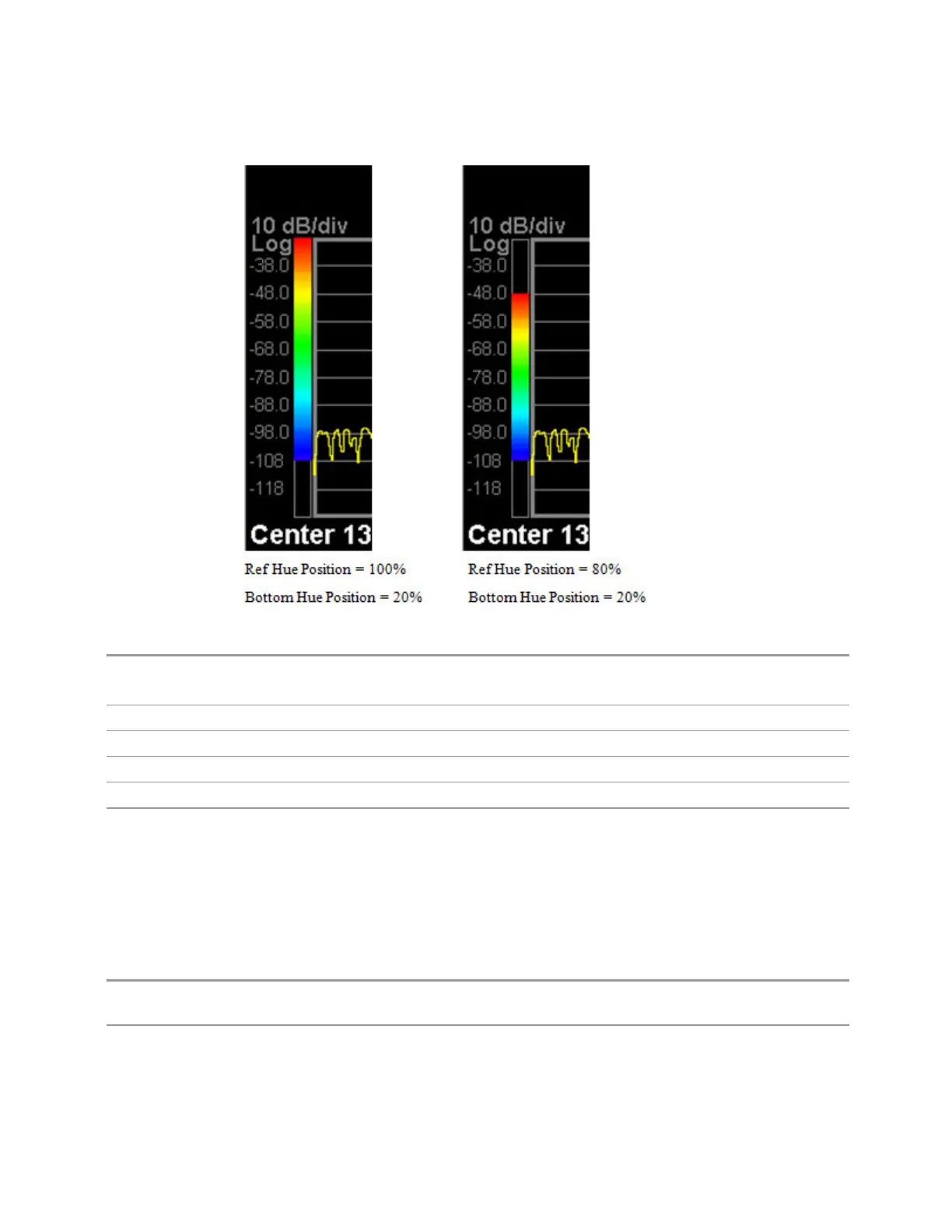

See "Color Adjust" on page 261 for more examples
Remote
Command
:DISPlay:VIEW:SPECtrogram:BOTTom <integer>
:DISPlay:VIEW:SPECtrogram:BOTTom?
Example
:DISP:VIEW:SPEC:BOTT 40
Preset 0
State Saved Saved in instrument state
Min 0
Max Cannot go any higher than 90%, or "Reference Hue Position" on page 267 – 10, whichever is lower
Auto Adjust Hue Position
Sets "Reference Hue Position" on page 267 to the highest amplitude value found in
the Spectrogram, and sets "Bottom Hue Position" on page 268 to the lowest
amplitude value found in the Spectrogram.
Remote
Command
:DISPlay:VIEW:SPECtrogram:AADJust
Example
:DISP:VIEW:SPEC:AADJ
Spectrum Analyzer Mode User's &Programmer's Reference 269

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
