Keysight x-series User Manual

3 Spectrum Analyzer Mode
3.5 ACP Measurement

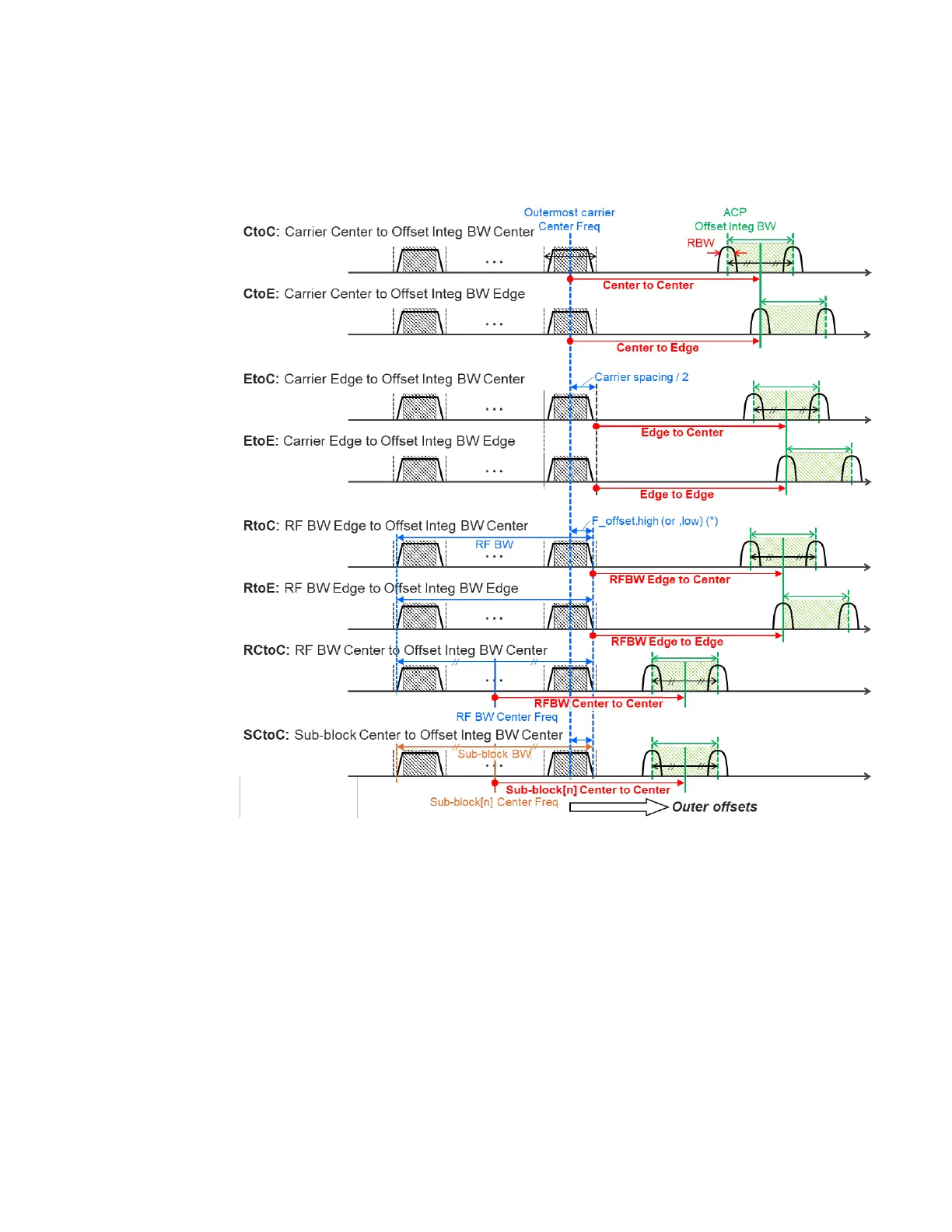

Diagram for MSR, LTEAFDD, LTEATDD, 5G NR
Note:
RF BW Edge and Outermost Carrier Edge are not always the same.
e.g.) 5G NR (3GPP) defines BW_channel, CA which calculates F_offset,high and F_
offset,low asymmetrically with SCS shift.
(*) For MSR, F_offset,high (or ,low) = F_offset,RAT,high (or ,low)
Offset Freq
Determines the frequency difference between the center of the main channel and
the center of the carrier.
Each Offset Freq state value is entered individually by selecting the desired carrier.
Spectrum Analyzer Mode User's &Programmer's Reference 1023

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
