2 User Interface

2.1 Screen Tabs

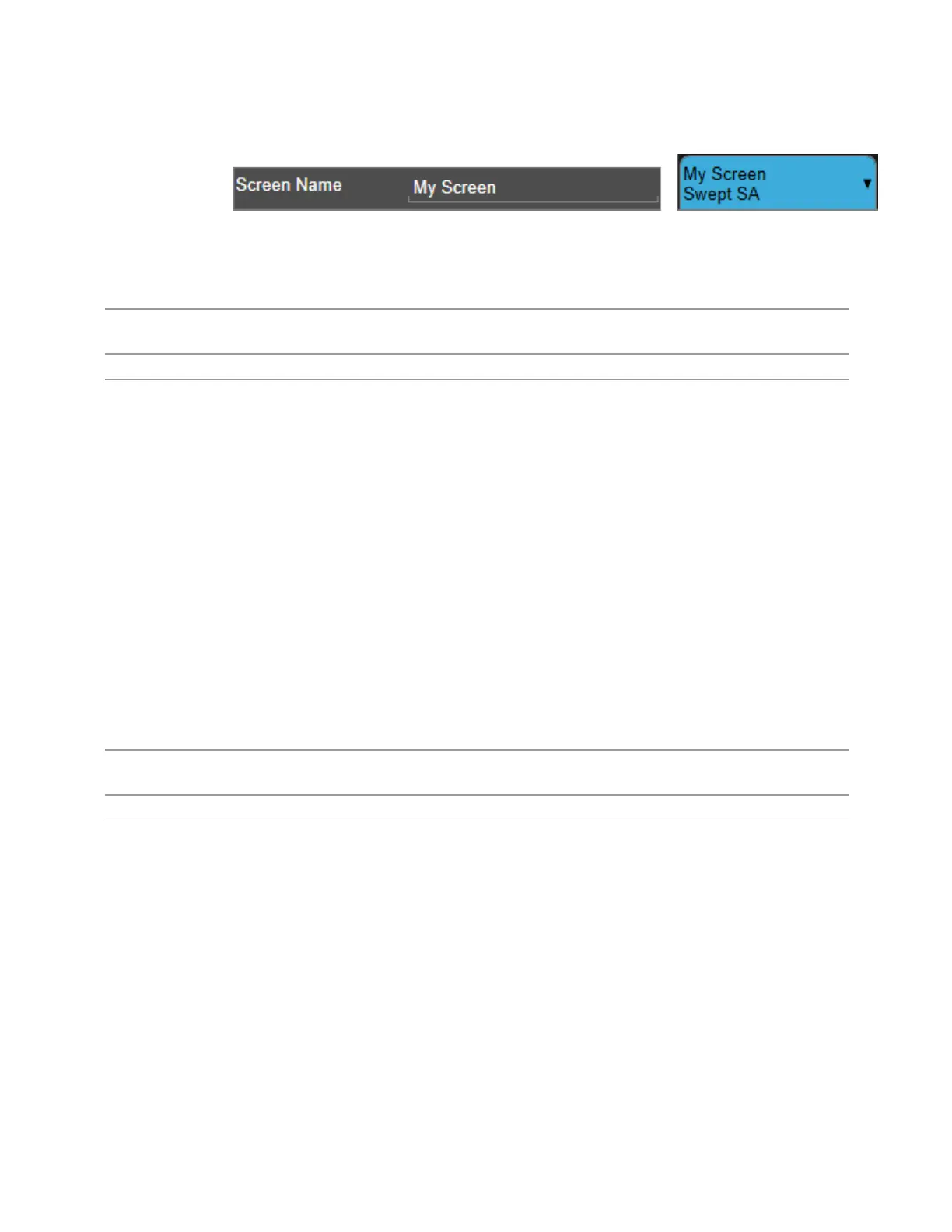

To reset the name, delete the screen name entirely.

Each Screen Name must be unique; you cannot give the same name to more than

one screen.

Remote

Command

:INSTrument:SCReen:REName <alphanumeric>

Example

:INST:SCR:REN “Baseband”

Notes The currently active screen is renamed.

If the <alphanumeric> specifying the new name is already present in the list of screen names, the

error message “-224, Illegal parameter value; New name <name> already exists” appears

If the display is disabled (via :DISP:ENAB OFF) then the error message “-221, Settings conflict;

Screen SCPI cannot be used when Display is disabled” appears

2.1.1.7 Delete This Screen

Pressing this button deletes the current Screen (the one with the blue tab). Deleting

a screen removes it from view and selects the next lower screen in the list of screens.

If only one screen is configured, it cannot be deleted.

If you press the Delete This Screen button, a prompt appears:

“This function will delete the current screen and its settings. This action cannot be

undone. Do you want to proceed?”

Pressing OK or Enter deletes the screen, pressing Cancel or ESC does not.

Remote

Command

:INSTrument:SCReen:DELete

Example

:INST:SCR:DEL

Notes The currently active screen is deleted

If the screen you are attempting to delete is the only configured screen, the error message “-221,

Settings conflict; Last screen cannot be deleted” is displayed

If the display is disabled (via :DISP:ENAB OFF) then the error message “-221, Settings conflict;

Screen SCPI cannot be used when Display is disabled” is generated

2.1.1.8 Delete All But This Screen

Pressing this control deletes all the Screens except the current Screen (the one with

the blue tab).

If you press the Delete All But This Screen button, a prompt appears:
