Keysight x-series User Manual

2 User Interface
2.17 View Editor
When you do this, you get the View Editor screen, which appears as below. The
menu panel switches to the View menu. Here we see that we are in the Predefined
View called “Basic”.
Each window has two arrows containing + signs. Pressing either of the “+” symbols
adds a new window on that side. For example, let’s say you press the + symbol on
the right of the lower left window:

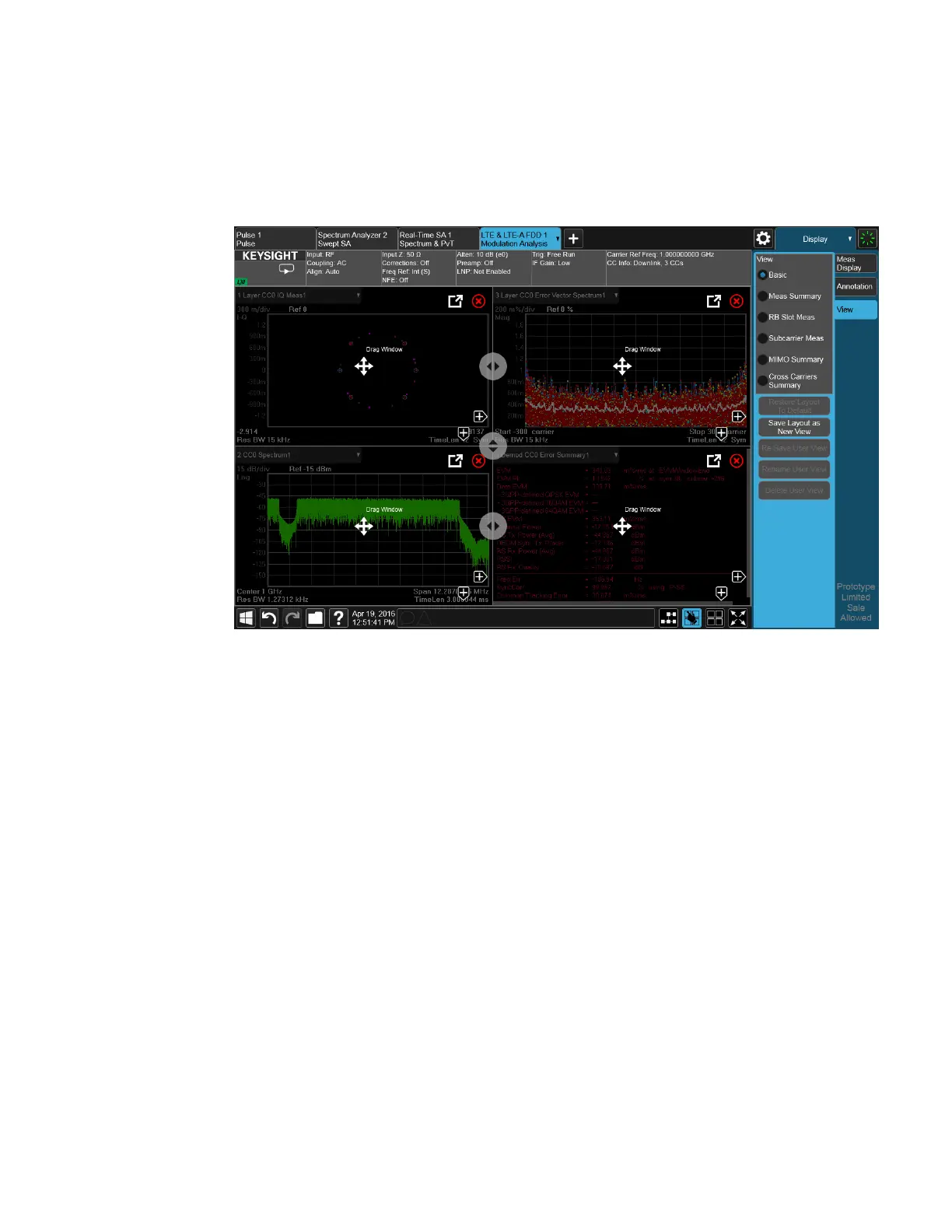

You would then see this:
Spectrum Analyzer Mode User's &Programmer's Reference 160

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
