7 Save/Recall/Print

7.3 Save

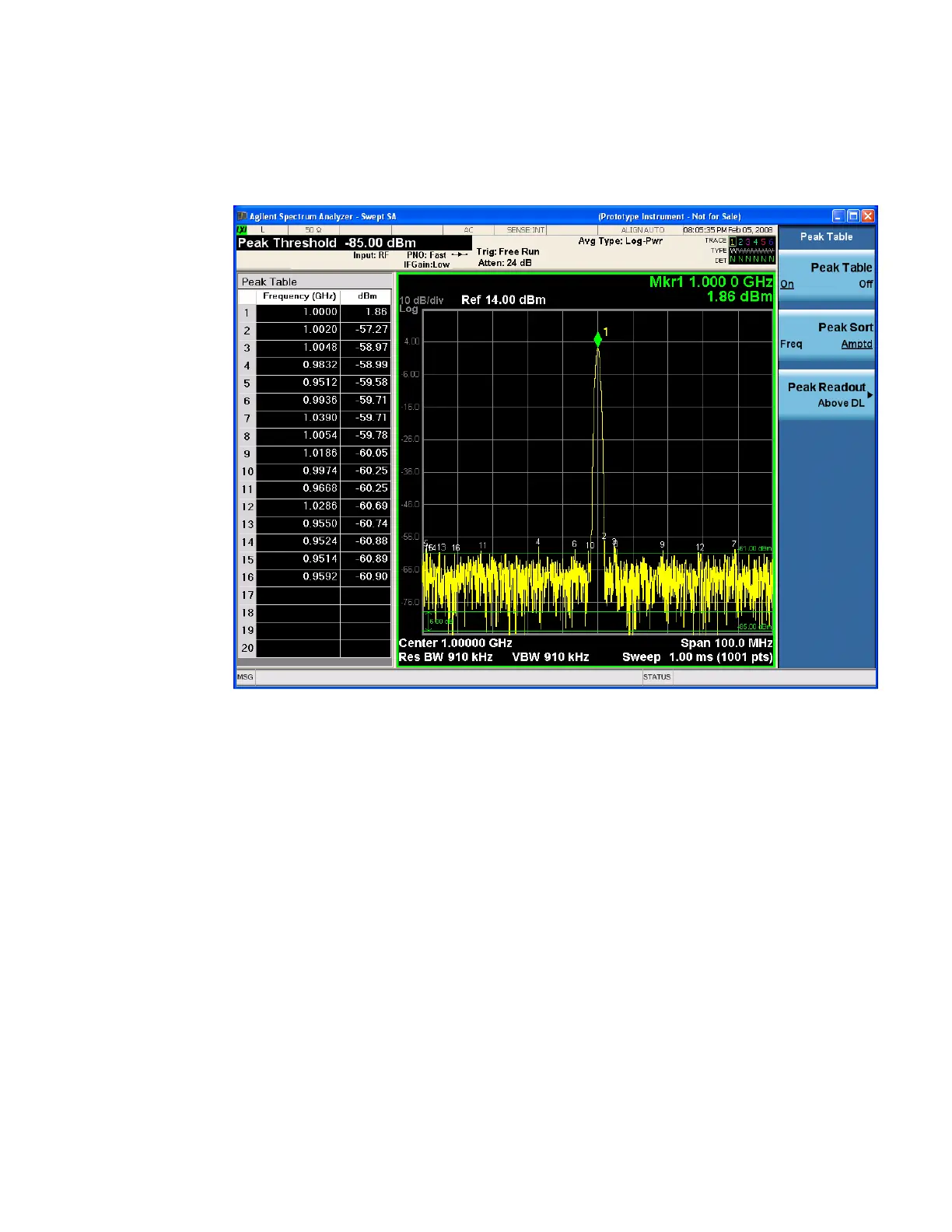

Suppose that, at the point where a Marker Table Meas Result is requested, the

following screen is showing:

Then the Meas Results file, when opened, would show the header data (the same as

for the Marker Table except that the Result Type is Peak Table) ending with a few

fields of specific interest to Peak Table users:

–

Peak Threshold

–

Peak Threshold State (On|Off)

–

Peak Excursion

–

Peak Excursion State (On|Off)

–

Display Line

–

Peak Readout (All|AboveDL|BelowDL)

–

Peak Sort (Freq|Amptd)

These fields are then followed by the data for the Peak Table itself.

Note that the label for the Frequency column changes to Time in 0 span.

2571 Spectrum Analyzer Mode User's &Programmer's Reference
