Keysight x-series User Manual

3 Spectrum Analyzer Mode
3.2 Swept SA Measurement
Dependencies Only appears when the Waterfall window is visible, and either the Waterfall or Spectrum window is
selected
If the command is sent at any other time, it is accepted without error, but you will not see the result
until you once again display the Waterfall window
Examples

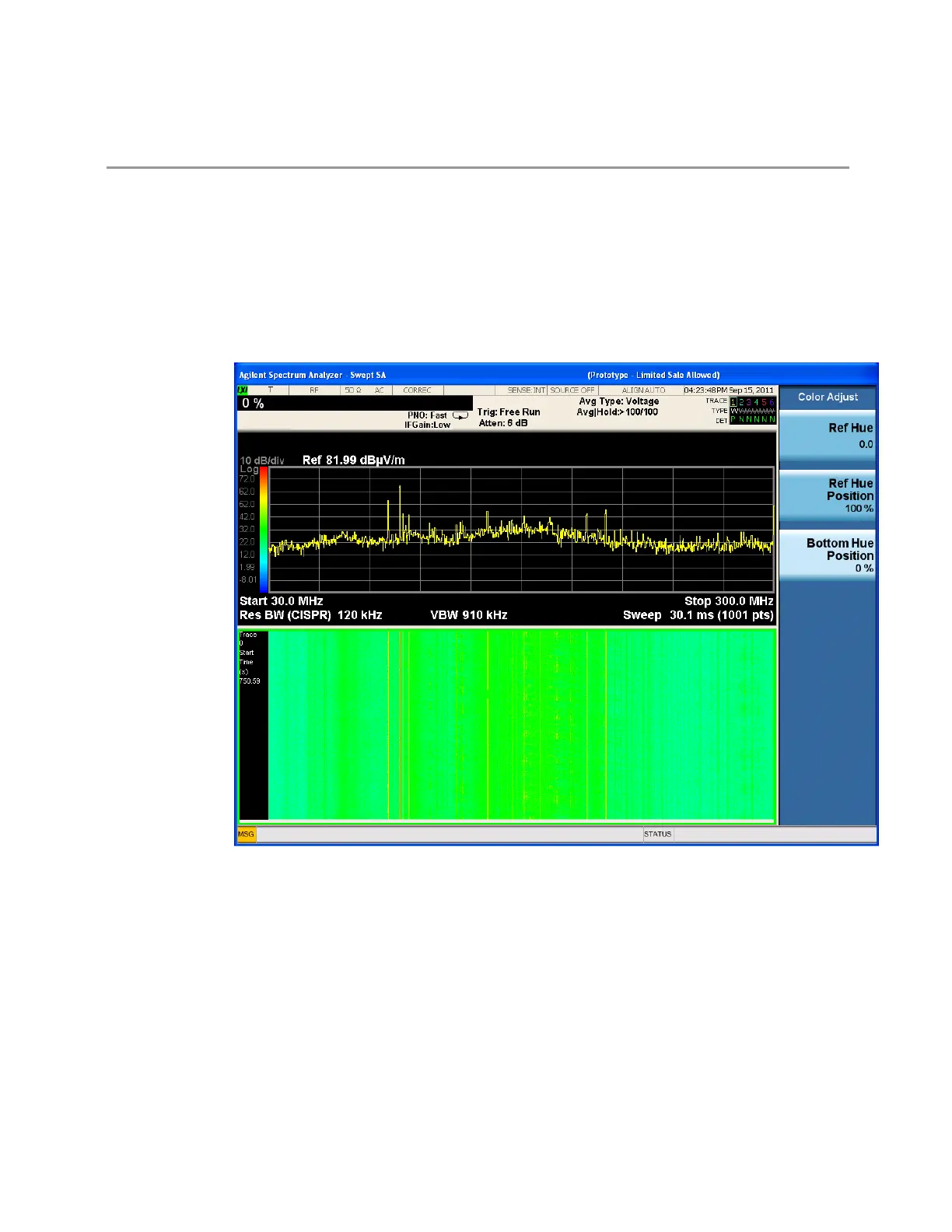

An example of Ref Hue in action appears below. Here is a typical Spectrogram
display:
Here is the same display with "Reference Hue" on page 265 adjusted for better
contrast:
Spectrum Analyzer Mode User's &Programmer's Reference 263

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
