Keysight x-series User Manual

3 Spectrum Analyzer Mode
3.4 Occupied BW Measurement

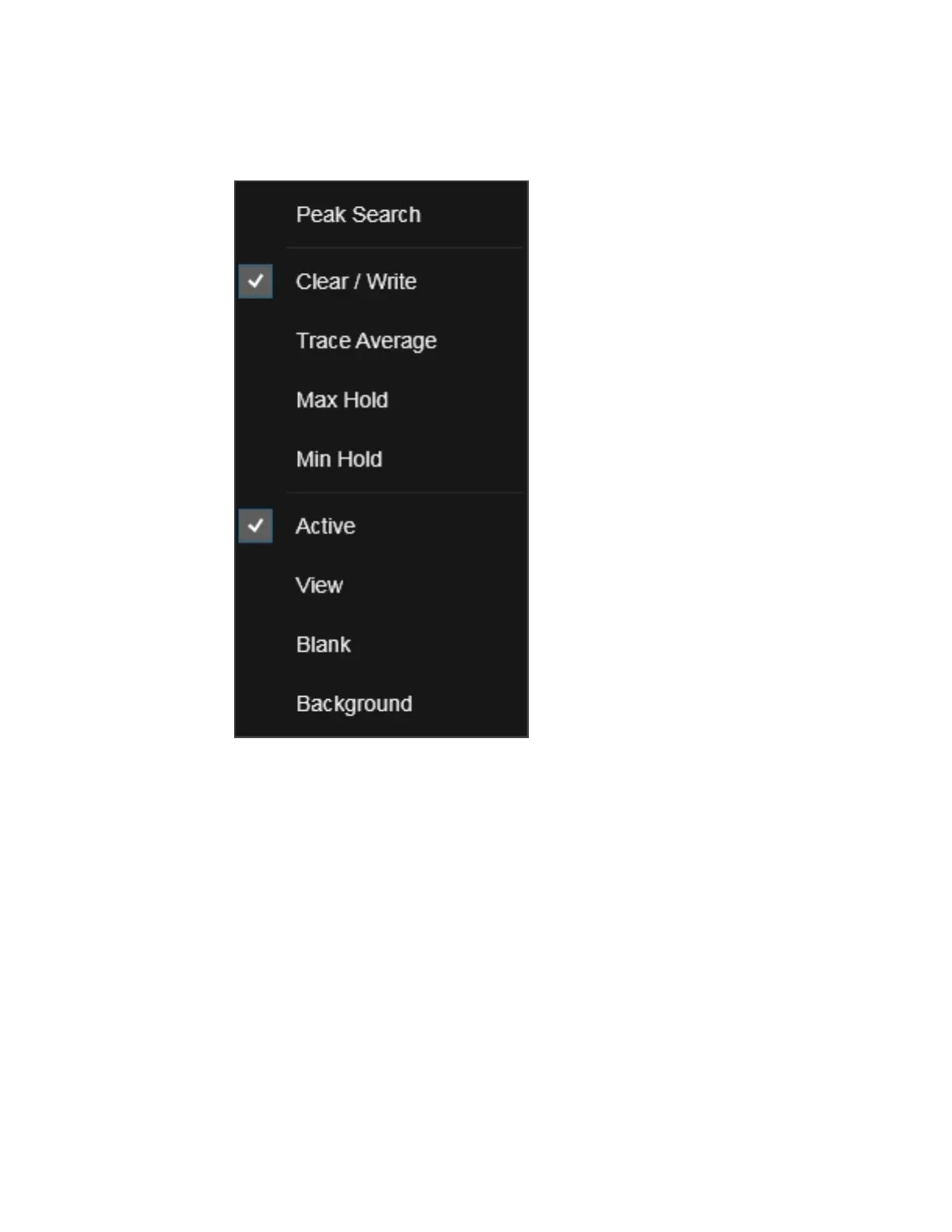

If you now tap or click on one of the items in this menu, the instrument will perform
the corresponding function. Peak Search finds the highest peak on the selected
Trace. Clear/Write, Trace Average, Max Hold and Min Hold set the "Trace Type" on
page 1927. Active, View, Blank, and Background set the "View/Blank" on page 1740
type.
Waterfall Window
If you right-click on the trace (or touch and hold the trace and wait for the circle to
close) in the Waterfall window (for example, in the Spectrogram View) you will see
the Waterfall Trace Right-Click Menu:
Spectrum Analyzer Mode User's &Programmer's Reference 845

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
