6 Input/Output
6.4 Data Source

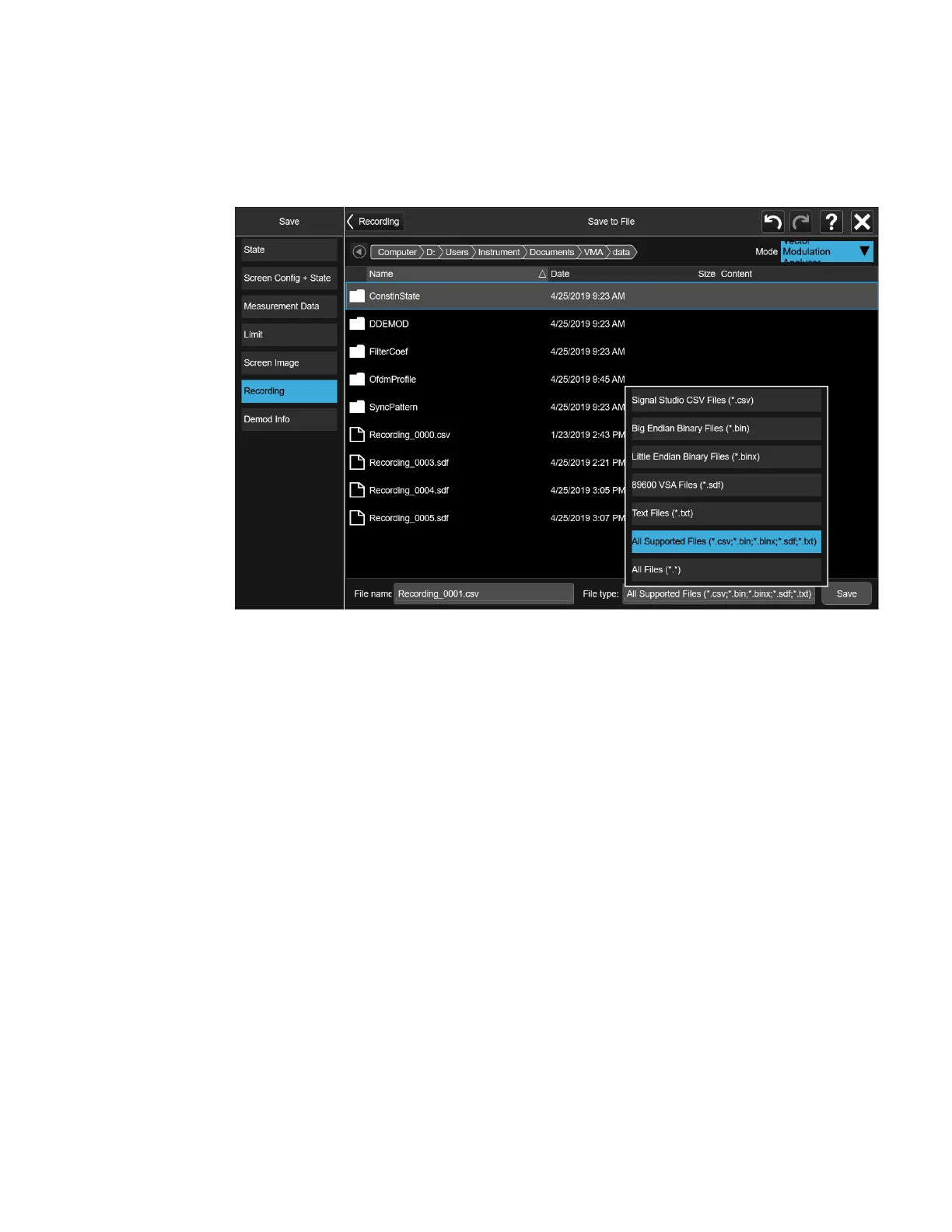

Then press Save As and choose the file type you would like to use for the Save (CSV,
SDF, TXT, BIN, BINX). You can find details of the file formats in Save > Recording.
Then press Save to save the raw I/Q data of the current measurement.
After the Save, you will see that the data on the Recording panel has changed to
describe the data in the file you just saved. You should note this data in case you
need to refer to it when you recall the file, particularly as not all file formats include
the Sample Rate that was used to save the data. In particular, BIN and BINX files do
not include sampling rate information inside the file, so after recalling one of these
file types, you will need to set the Sample Rate manually in the Sweep, Playback
menu.
Spectrum Analyzer Mode User's &Programmer's Reference 2409
