ADSP-21368 SHARC Processor Hardware Reference A-103

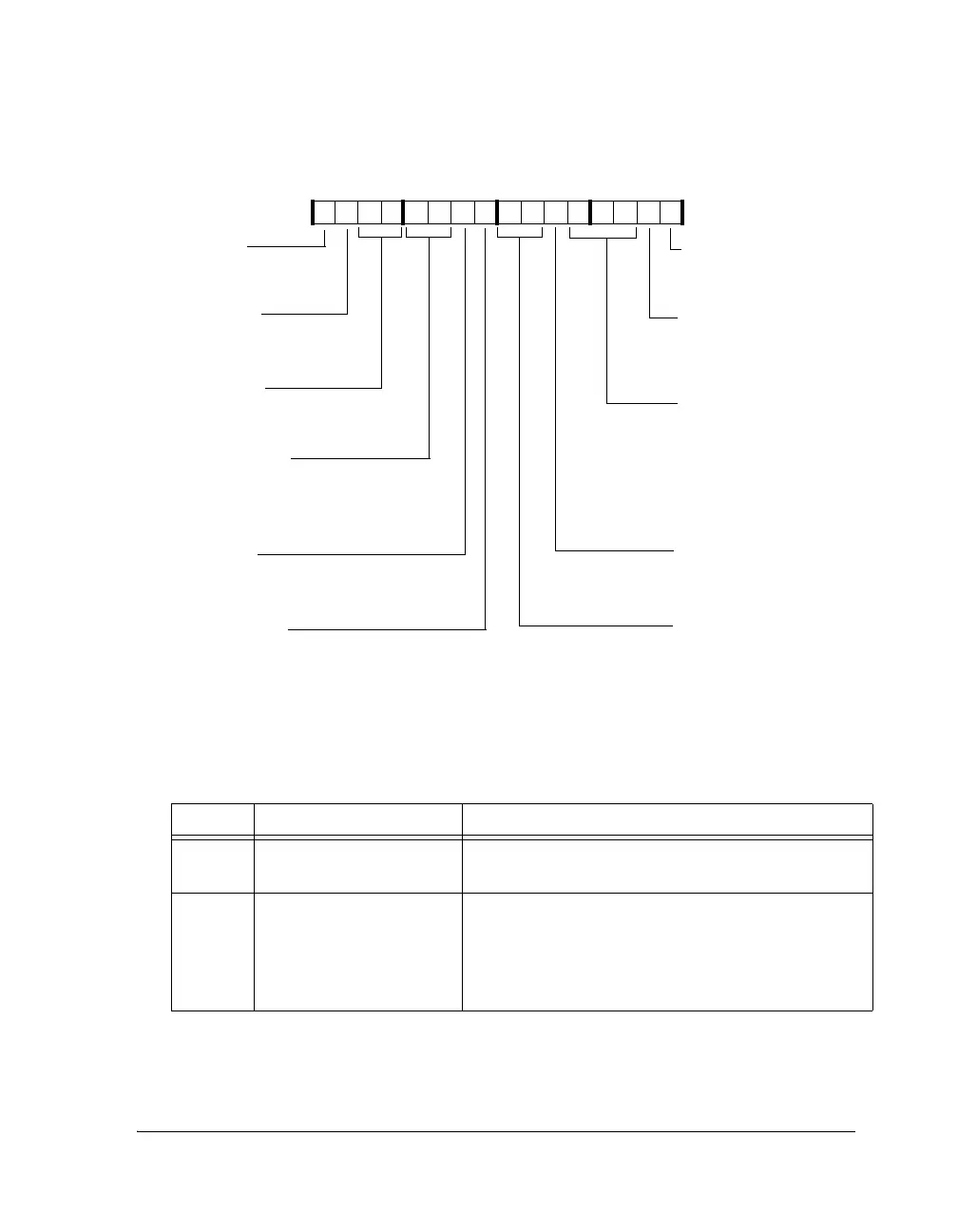

Figure A-39. SRCCTL1 Register (Bits 0–15)

Table A-43. SRCCTL1 Register Bit Descriptions

Bit Name Description

0 SRC2_HARD_MUTE Hard Mute. Hard mutes SRC 2.

1 = Mute (default)

1 SRC2_AUTO_MUTE Auto Hard Mute. Auto hard mutes SRC 2 when one of

the non-audio bits is asserted by the SPDIF receiver. See

Table A-39 on page A-95.

0 = No mute

1 = Mute (default)

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

0000000000000000

SRC2_HARD_MUTE

SRC2_RESET

SRC0, 2 Reset

1=SRC enabled

0=SRC disabled

SRC 2 Hard Mute Enable

1=Enabled

0=Disabled

SRC2_AUTO_MUTE

SRC 2 Auto Hard Mute

Enable (from SPDIF RX)

1=Enabled

0=Disabled

SRC2_BYPASS

SRC 2 Deemphasis Filter

1=Enabled

0=Disabled (default)

SRC 2 Bypass Mode

1=Bypass enabled

0=Bypass disabled

SRC2_DEEMPHASIS

SRC2_MPHASE

SRC 2 Matched-Phase Mode

1=Enabled

0=Disabled

SRC2_LENOUT

SRC 2 Output Word Length

00=24-bit, 01=20-bit

10=18-bit, 11=16-bit

SRC2_SMODEOUT

SRC 2 Serial Output Format

00=Left-justified (default)

01=I

10=TDM

11=Right-justified

SRC2_DITHER

SRC 2 Dither Enable

1=Enable

0=Disable

SRC 2 Soft Mute Enable

1=Mute (default)

0=No mute

SRC2_SOFTMUTE

SRC2_SMODEIN

SRC 2 Serial Input Format

000=Left-justified (default)

001=I

010=TDM

100=24-bit right-justified

101=20-bit right-justified

110=18-bit right-justified

111=16-bit right-justified

SRCCTL1 (0x2491)
