January 2007
4-53
WorkCentre 7132
REP 6.1.1
Repairs/Adjustments
Reversion 4.0
REP 6.1.1 Exit2 + OCT2
Parts List on PL 8.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Open the L/H Upper Cover.
2. Remove the Exit2 + OCT2. (Figure 1)
1. Lift up the front and rear levers and remove the Exit2 + OCT2.

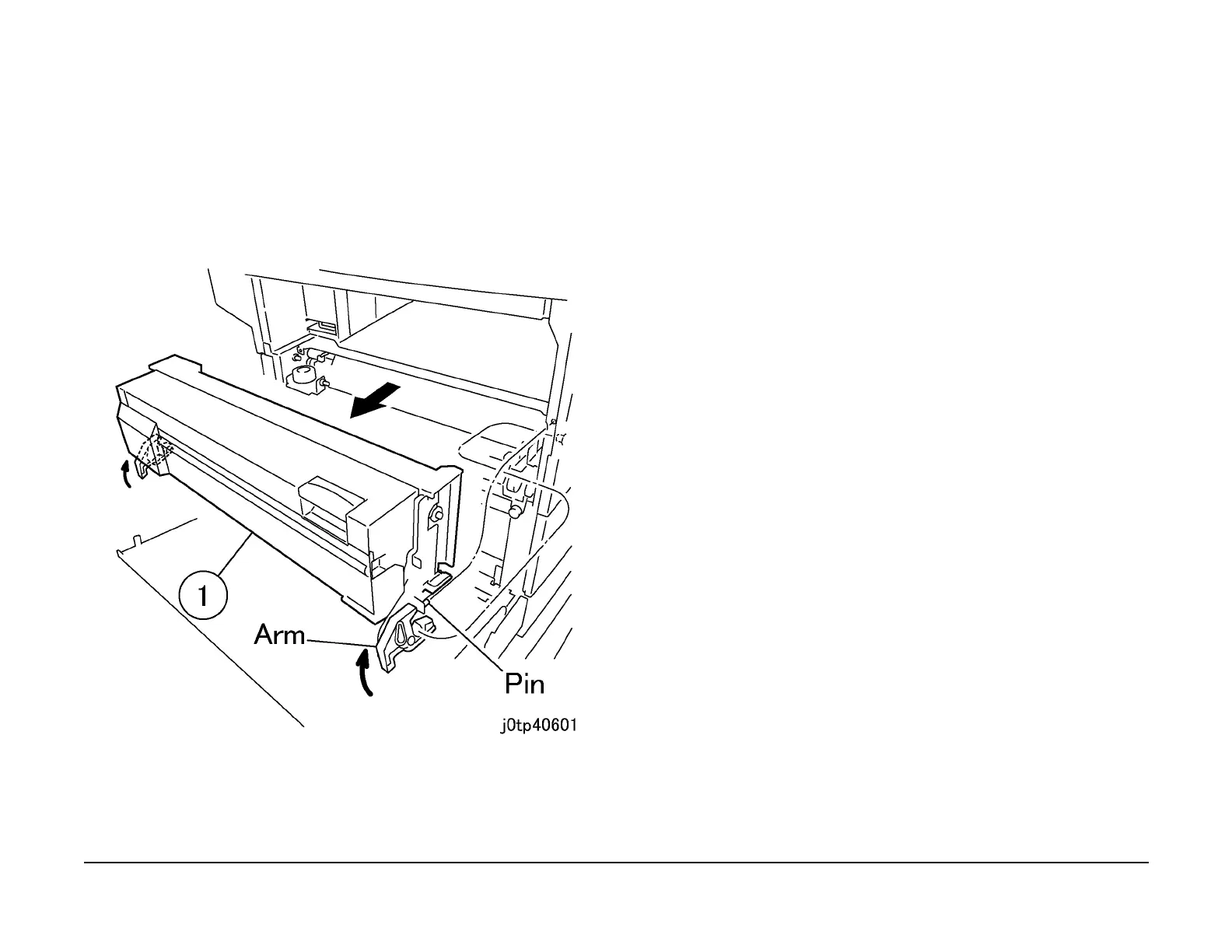

Figure 1 Removing the Exit2+OCT2 (j0tp40601)
Replacement
1. To install, carry out the removal steps in reverse order.
