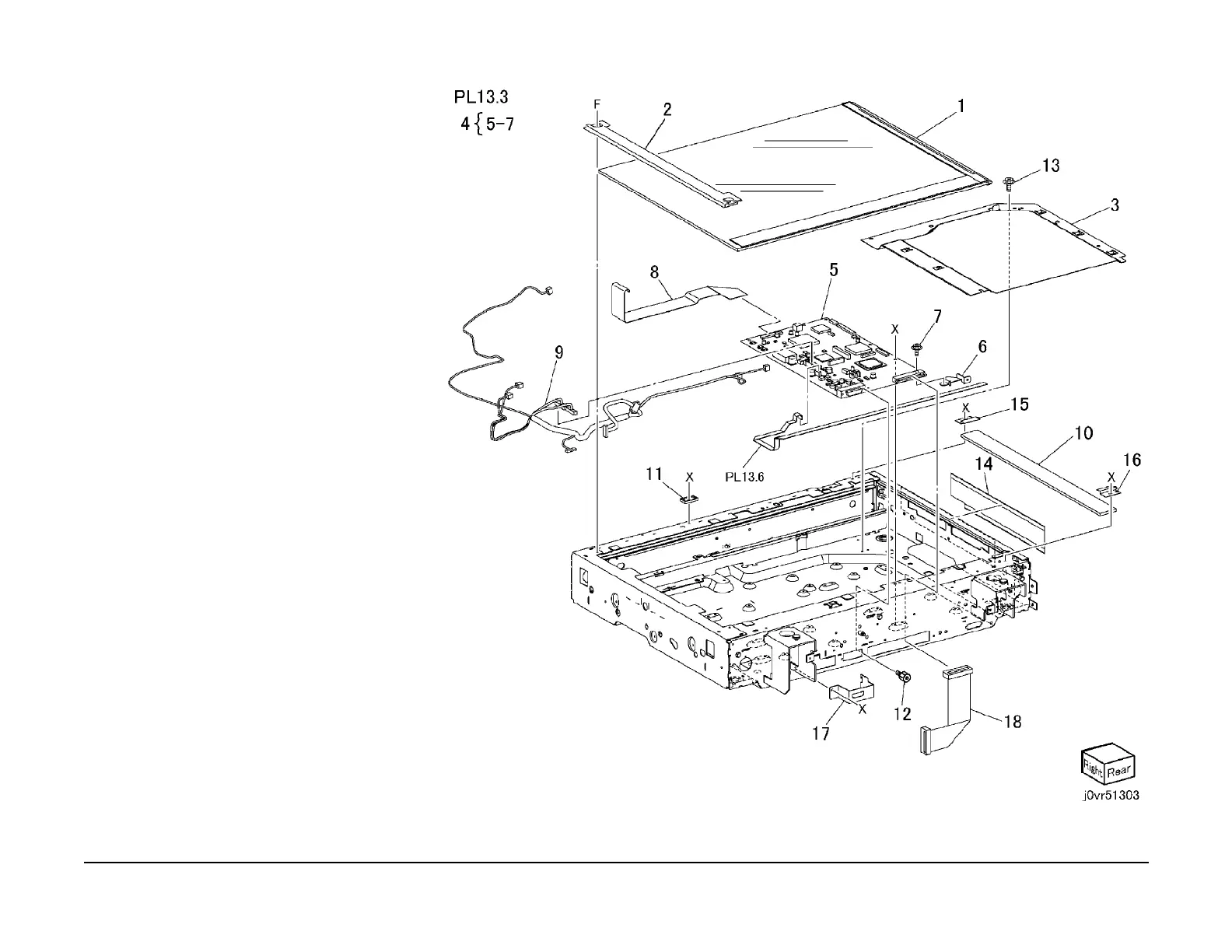

PL 13.3 Platen Glass
Item Part Description
1 090K02332 Platen Glass (REP 11.3.1)
2 – Right Side Plate (P/O PL 13.1 Item
12)
3 – IPS Cover (P/O PL 13.1 Item 12)
4 960K16486 IIT/IPS PWB (REP 11.3.2)
5 – IIT/IPS PWB (P/O PL 13.3 Item 4)
6 – IIT/IPS Bracket (P/O PL 13.3 Item
4)
7 – Screw (P/O PL 13.3 Item 4)
8 117E26161 FFC CCD
9 – IIT Harness (P/O PL 13.1 Item 12)
10 090K93011 Platen Cover
11 – Support Glass (P/O PL 13.1 Item
12)
12 – Lock Screw (P/O PL 13.1 Item 12)
13 – Screw (P/O PL 13.1 Item 12)
14 – Filter
15 – Front Support Bracket (P/O PL 13.1
Item 12)
16 – Rear Support Bracket (P/O PL 13.1
Item 12)
17 – Bracket (P/O PL 13.1 Item 12)
18 117K37241 ESS Cable
