Xerox WorkCentre 7132 Service Documentation

January 2007
5-65
WorkCentre 7132
PL 16.2
Parts-list
Reversion 4.0

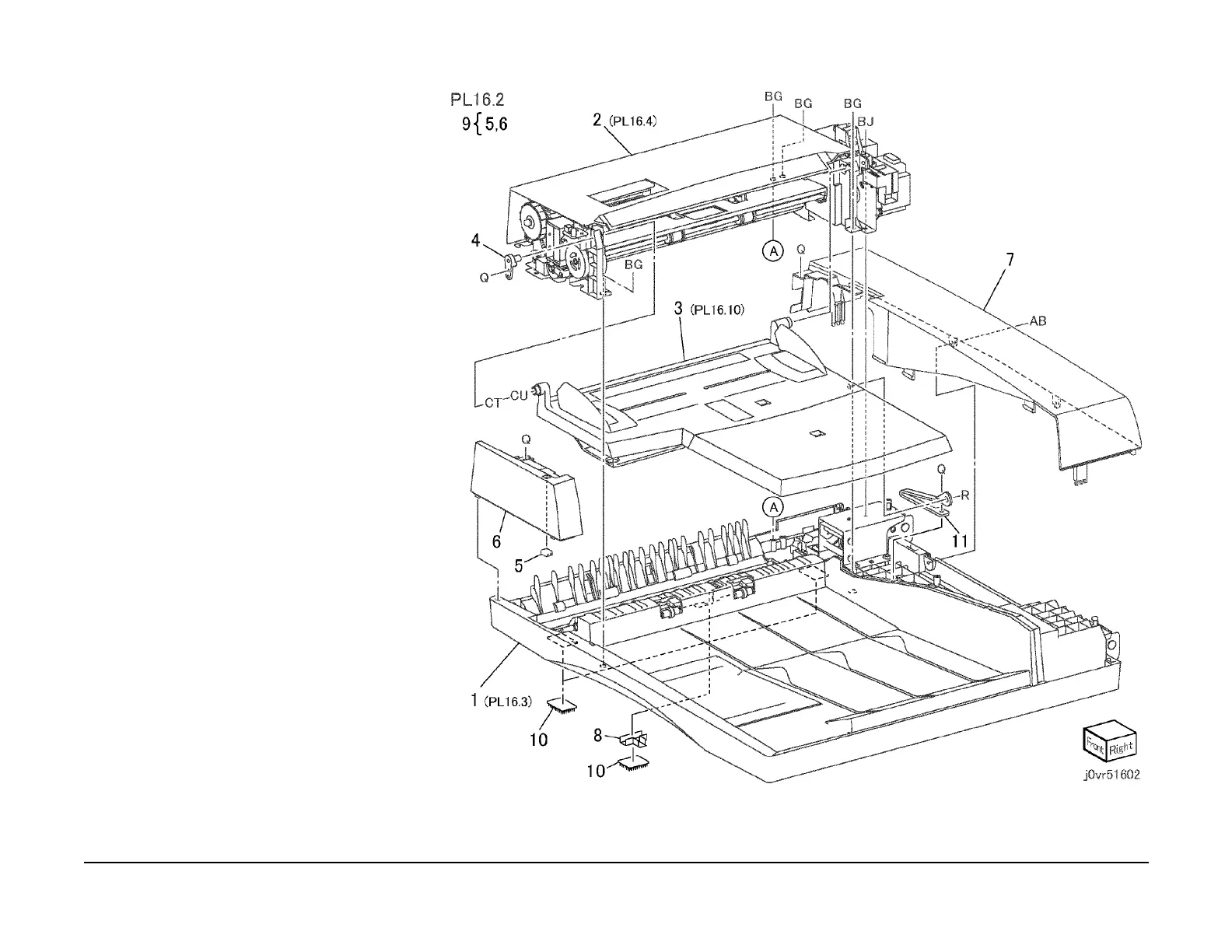

PL 16.2 DADF Component Cover
Item Part Description
1 – DADF Base Assembly (P/O PL
16.1 Item 3)
2 – DADF Feeder Assembly (P/O PL
16.1 Item 3) (REP 15.2.2)
3 050K56180 DADF Document Tray (REP 15.2.1)
4 – Tray Hinge (P/O PL 16.1 Item 3)
5 – LED Cap (P/O PL 16.2 Item 9)
6 – DADF Front Cover (P/O PL 16.1
Item 3) (REP 15.2.3)
7 – DADF Rear Cover (P/O PL 16.1
Item 3) (REP 15.2.4)
8 – Solenoid Cover (P/O PL 16.1 Item
3)
9 – DADF Front Cover (P/O PL 16.1
Item 3)
10 – Fastener Tape (P/O PL 16.1 Item 3)
11 849E38720 Tray Support
