Xerox WorkCentre 7132 Service Documentation

January 2007
4-210
WorkCentre 7132
REP 22.5.5
Reversion 4.0
Repairs/Adjustments
(2)Remove Belt from Pulley.
(3)Remove Transport Motor.

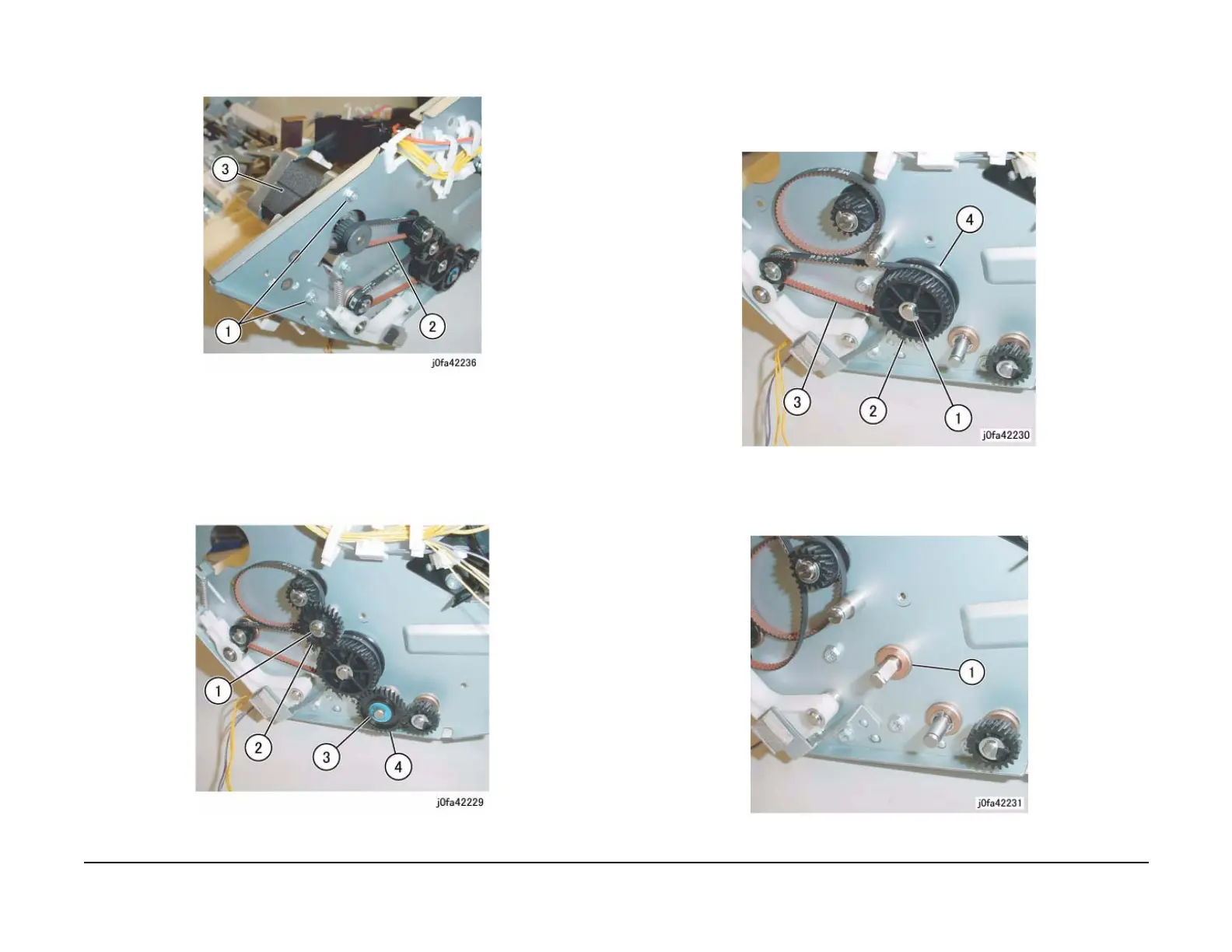

Figure 2 Removing the Transport Motor (j0fa42236)
7. Remove the Gear. (Figure 3)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove KL-Clip.
(4)Remove Gear.
Figure 3 Removing the Gear (j0fa42229)
8. Remove the Gear Pulley. (Figure 4)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove Pulley from Belt.
(4)Remove Flange.
Figure 4 Removing the Gear Pulley (j0fa42230)
9. Remove the Bearing. (Figure 5)
(1)Remove the Bearing.
Figure 5 Removing the Bearing (j0fa42231)
