Xerox WorkCentre 7132 Service Documentation

January 2007
5-9
WorkCentre 7132
PL 2.1
Parts-list
Reversion 4.0

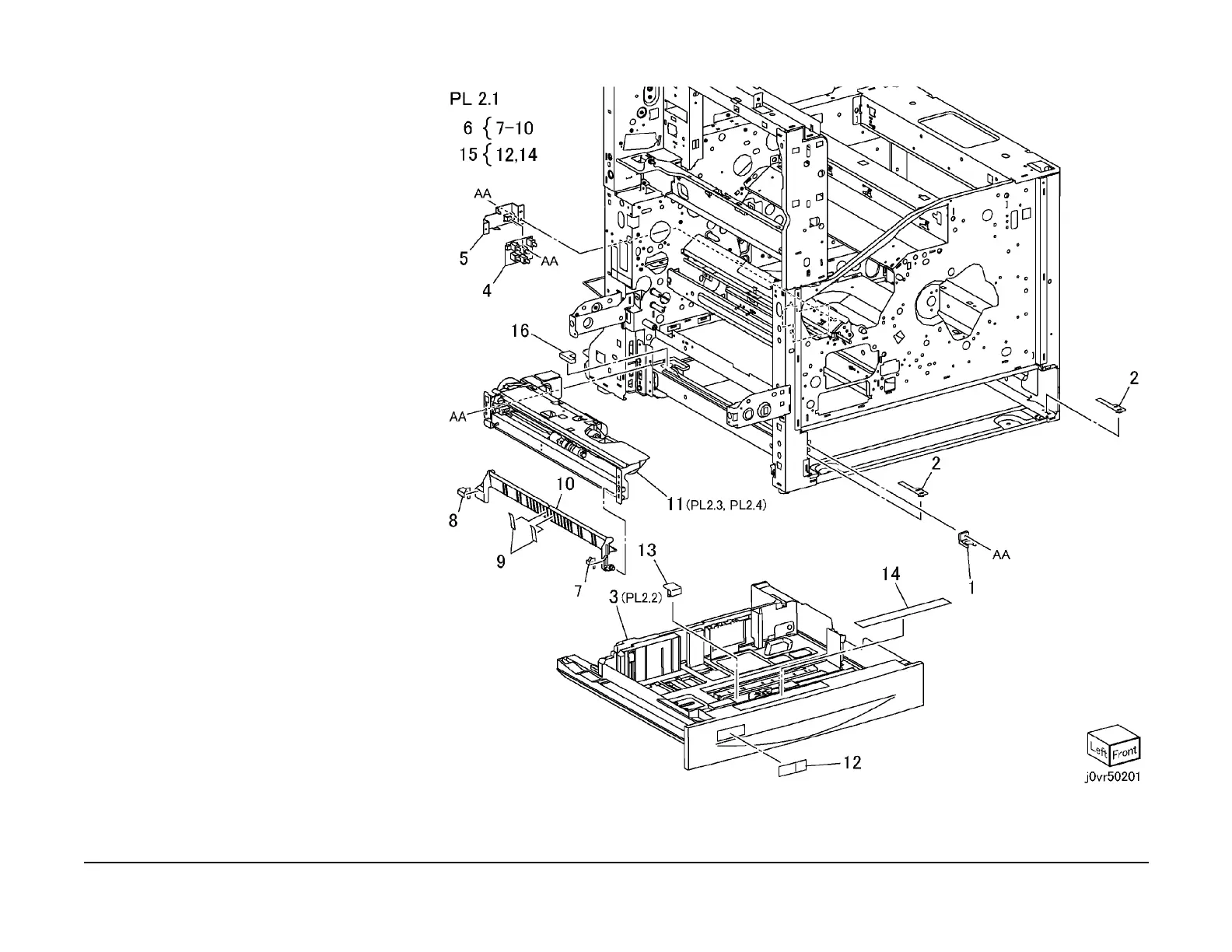

PL 2.1 Tray, Feeder Assembly
Item Part Description
1 003E61510 Tray Stopper
2 – Tray Spacer (Not Spared)
3 050K53945 Tray Assembly
4 110K12100 Tray Paper Size Switch
5 – Bracket (Not Spared)
6 054K27051 Feeder Chute Assembly (REP
2.1.1)
7 – Pad (P/O PL 2.1 Item 6)
8 – Pad (P/O PL 2.1 Item 6)
9 – Paper Guide (P/O PL 2.1 Item 6)
10 054K27520 Feed Out Chute
11 059K42524 Tray 1 Feeder Assembly (REP
2.1.1)
12 – Tray No. 1 Label (P/O PL 2.1 Item
15)
13 – Slide Lock Block (Not Spared)
14 – Label (Instruction) (P/O PL 2.1 Item
15)
15 604K20550 Tray Label Kit
16 – Cushion (Not Spared)
