January 2007
4-96
WorkCentre 7132
REP 11.6.1
Reversion 4.0
Repairs/Adjustments
REP 11.6.1 Exposure Lamp
Parts List on PL 13.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Open the Platen Cover or DADF.
2. Remove the Platen Glass. (REP 11.3.1)
3. Move the Full Rate Carriage to the frame notch.
4. Remove the Exposure Lamp. (Figure 1)
1. Disconnect the connector.
2. Remove the screw.
3. Remove the Exposure Lamp.

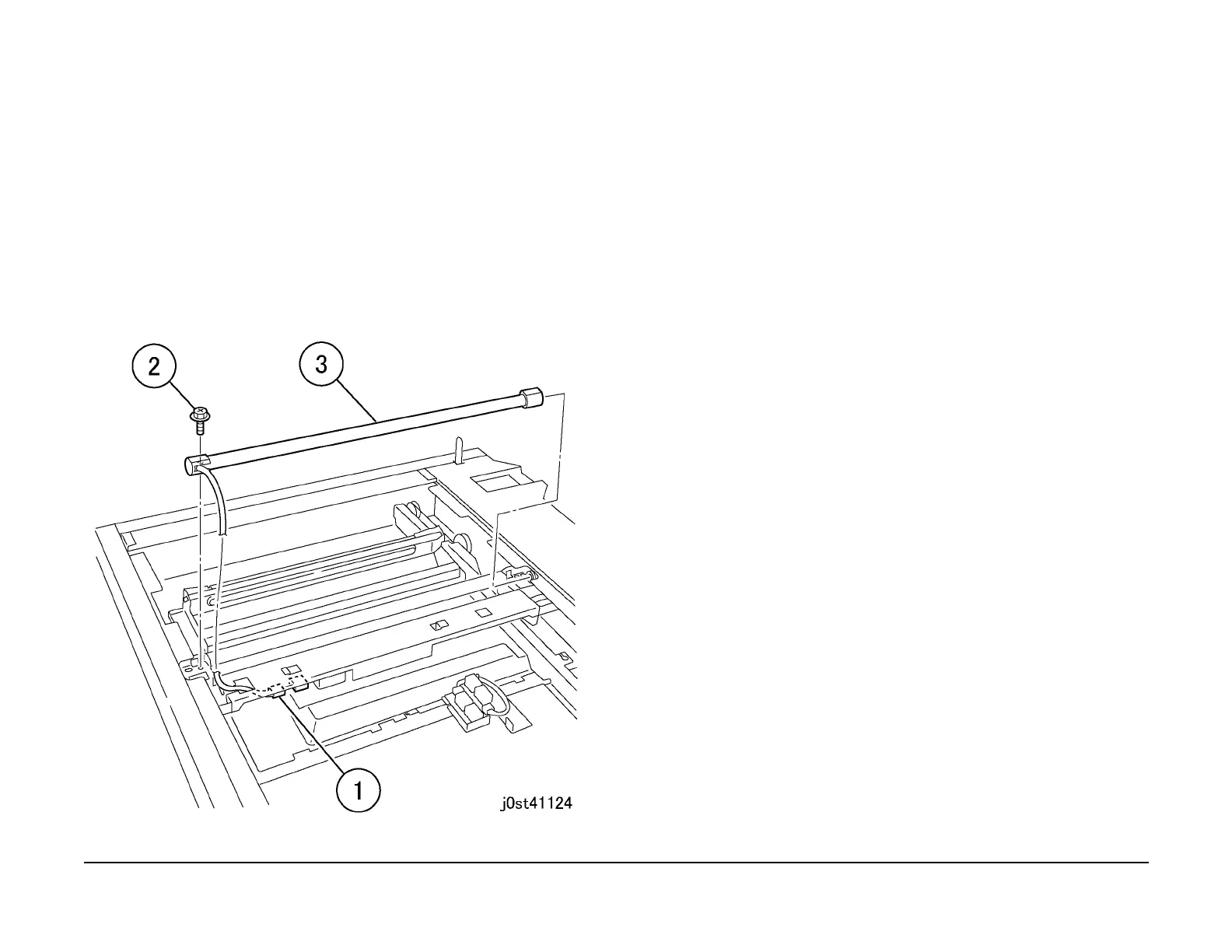

Figure 1 Removing the Exposure Lamp
Replacement
1. To install, carry out the removal steps in reverse order.
