Xerox WorkCentre 7132 Service Documentation

January 2007
5-41
WorkCentre 7132
PL 13.2
Parts-list
Reversion 4.0

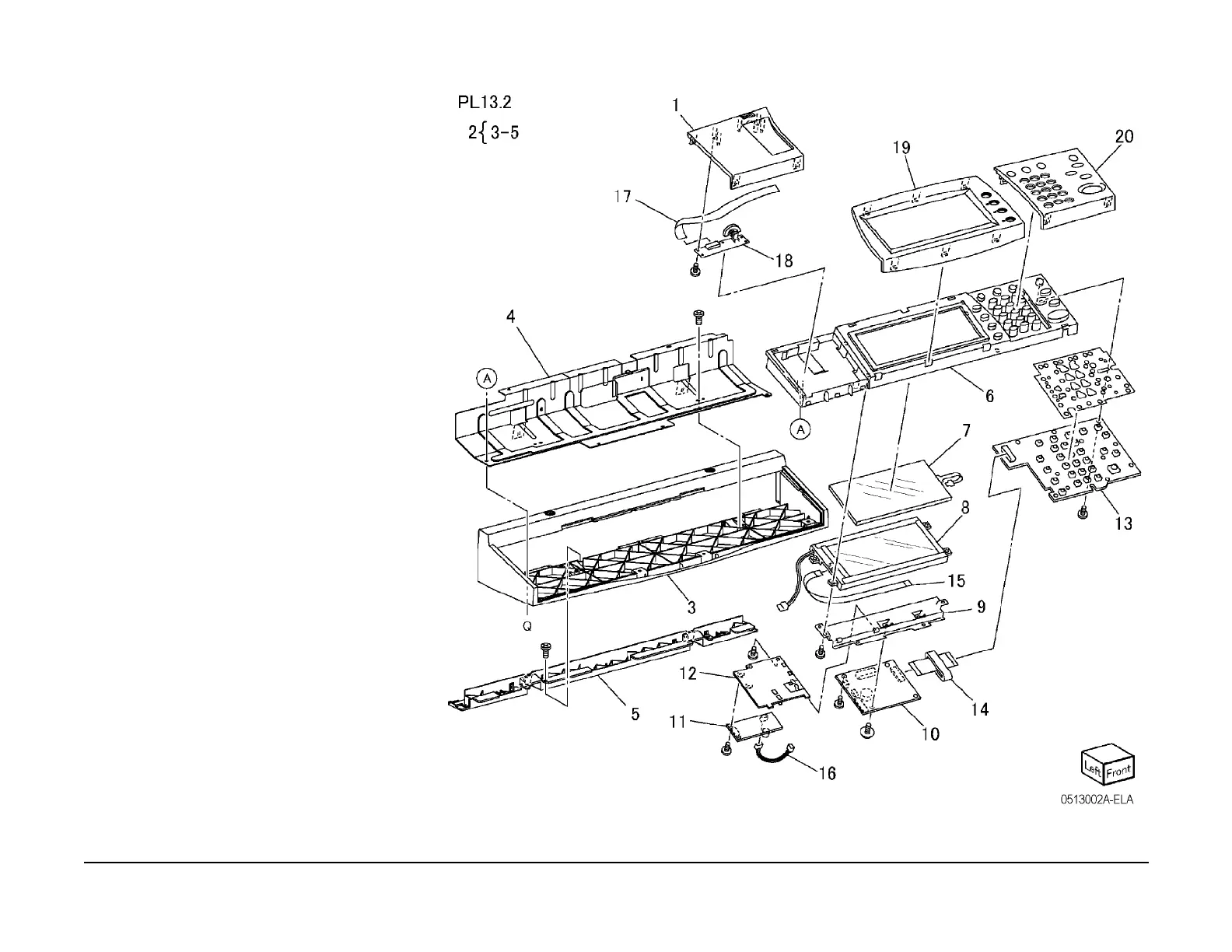

PL 13.2 Control Panel
Item Part Description
1 802K60062 Panel (Left)
2 – Case 560 Panel Assembly (P/O PL
13.1 Item 13)
3 – Case 560 Panel (P/O PL 13.2 Item
2)
4 – UI560 Plate (P/O PL 13.2 Item 2)
5 – Base Case Panel (P/O PL 13.2
Item 2)
6 – Base Case Panel (P/O PL 13.1
Item 13)
7 110K11610 Touch Panel
8 123K94951 Display
9 – PWB Support Bracket (P/O PL 13.1
Item 13)
10 160K91631 Inverter PWB
11 960K02444 IF PWB
12 – Support (P/O PL 13.1 Item 13)
13 – Control Panel PWB (P/O PL 13.1
Item 13)
14 – Wire Harness (P/O PL 13.1 Item
13)
15 – Wire Harness (P/O PL 13.1 Item
13)
16 – Wire Harness (P/O PL 13.1 Item
13)
17 – Wire Harness (P/O PL 13.1 Item
13)
18 – Contrast PWB (P/O PL 13.1 Item
13)
19 802E91581 Panel (Center)
20 802E55532 Panel (Right)
