January 2007
5-64
WorkCentre 7132
PL 16.1
Reversion 4.0
Parts-list

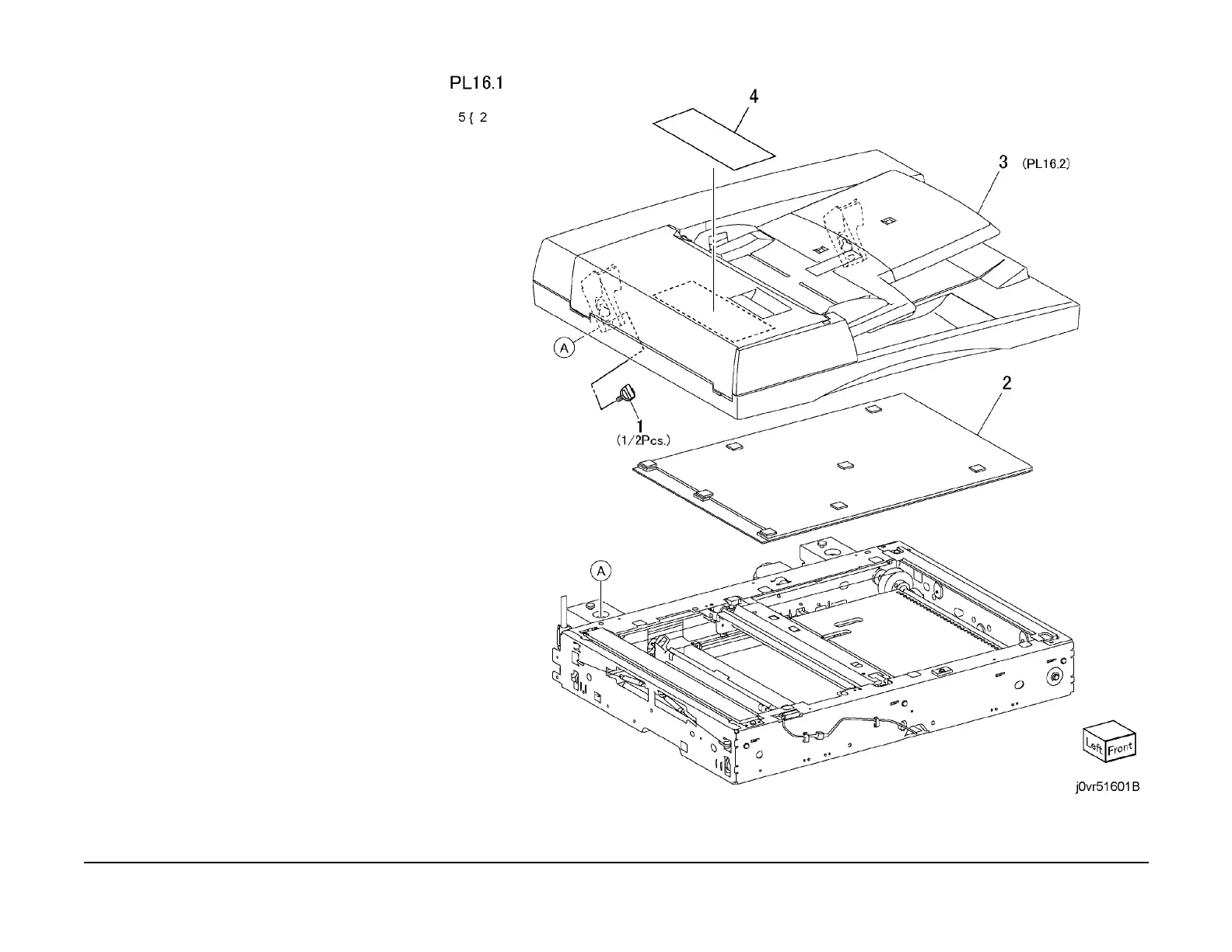

PL 16.1 DADF Accessory
Item Part Description
1 003K91881 Knob Screw
2 – DADF Platen Cushion (P/O PL 16.1
Item 5) (REP 15.1.2)
3 059K45205 Feeder Assembly (REP 15.1.1)
4 – Label (Not Spared)
5 604K25430 Frame Side Velcro Kit
