7. Remove the Compile Exit Sensor. (Figure 4)
(1)Release Clamps (2) and remove the wire.
(2)Disconnect Connector.
(3)Remove Compile Exit Sensor.

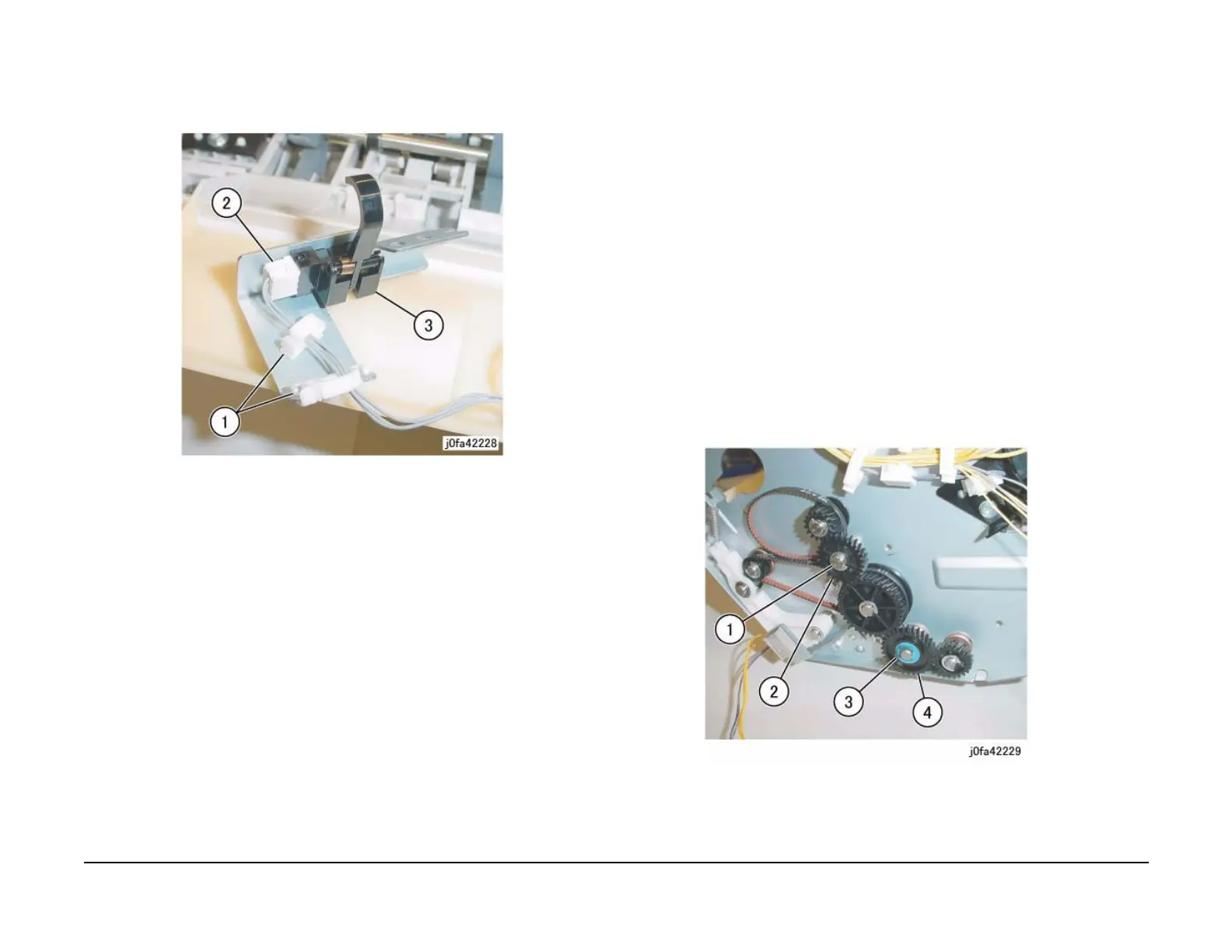

Figure 4 Removing the Compile Exit Sensor (j0fa42228)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.5.4 Main Paddle Shaft Assembly
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Before turning OFF the power switch, note the following to prevent loss of customer data.
[with the FAX function]
Check that the “Job in Memory” lamp is off. Press the “Job Status” button and check that no job
is in progress.
[with the Printer function]
Check that “Ready to print/send” is displayed on the Control Panel.
1. Remove the A-Finisher from the machine.
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Gear. (Figure 1)
(1)Remove E-Clip.
(2)Remove Gear.
(3)Remove KL-Clip.
(4)Remove Gear.
Figure 1 Removing the Gear (j0fa42292)
