January 2007
4-203
WorkCentre 7132
REP 22.4.4
Repairs/Adjustments
Reversion 4.0
Figure 2 Removing the Upper Chute Assembly (af422100)
7. Remove the Exit Roll Assembly. (Figure 3)
(1)Remove E-ring and Bearing.
(2)Remove E-ring and Bearing.
(3)Remove the Exit Roll Assembly.

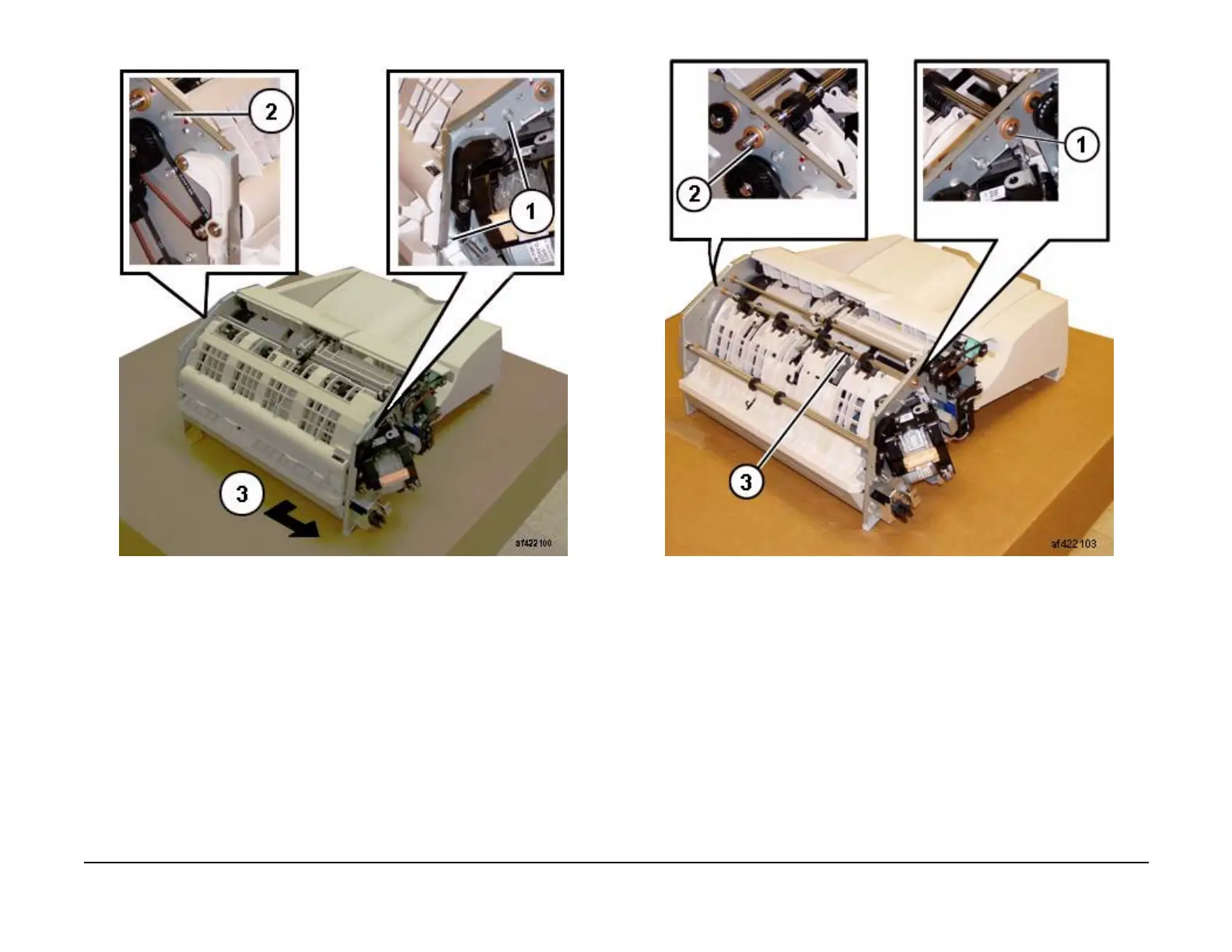

Figure 3 Removing the Exit Roll Assembly (af422103)
Replacement
1. Reverse the removal procedure for replacement.
NOTE: Ensure that the Paper Guides on the Upper Chute (PL 22.6) are not folded back
on top of the Exit Roll Assembly (PL 22.5).
