Xerox WorkCentre 7132 Service Documentation

January 2007
4-158
WorkCentre 7132
REP 16.4.2
Reversion 4.0
Repairs/Adjustments
REP 16.4.2 Rear Cover
Parts List on PL 17.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the Left Panel. (Figure 1)
1. Remove the Left Panel.

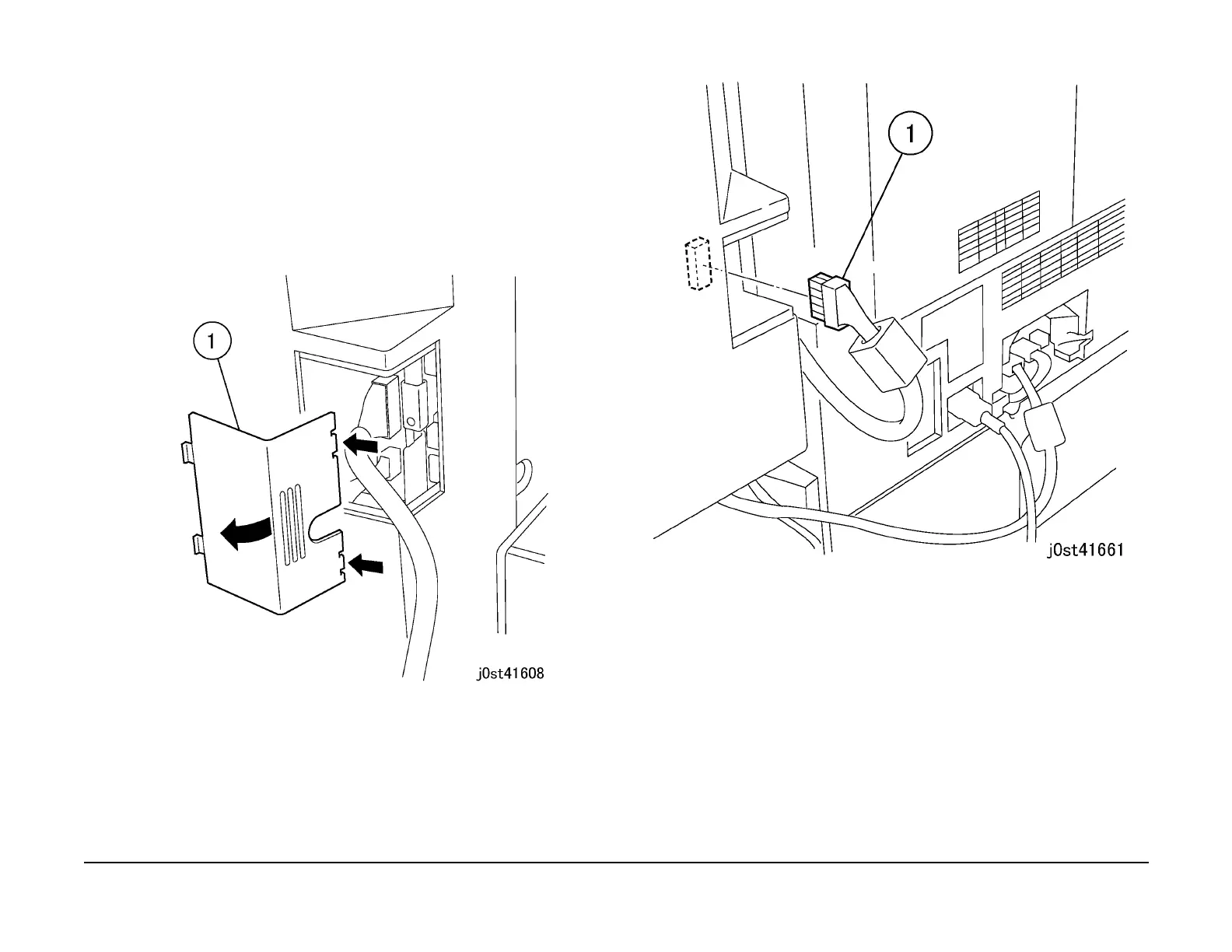

Figure 1 Removing the Left Panel
2. Remove the connector. (Figure 2)
1. Remove the connector.
Figure 2 Removing the connector
3. Remove the Rear Cover. (Figure 3)
1. Remove the screws (x4).
2. Remove the Rear Cover.
