Xerox WorkCentre 7132 Service Documentation

January 2007
5-83
WorkCentre 7132
PL 17.10
Parts-list
Reversion 4.0

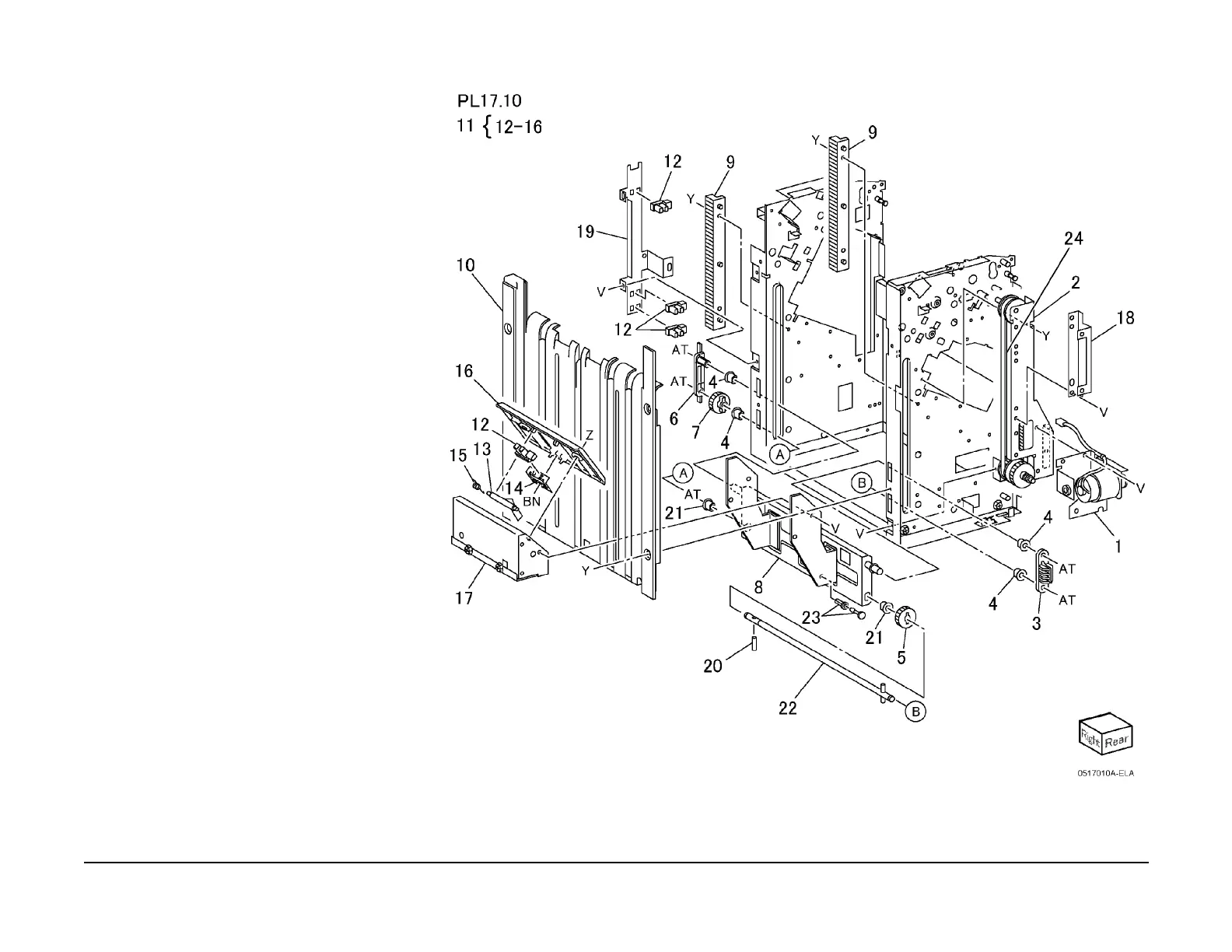

PL 17.10 Elevator
Item Part Description
1 127K39910 Stacker Motor Assembly (REP
16.10.1)
2 – Elevator Bracket (Front) (Not
Spared)
3 – Clamp (Not Spared)
4 – Bearing (Not Spared)
5 007E67830 Gear (Rear)
6 – Actuator (Not Spared)
7 007E67840 Gear (Front)
8 – Stacker Tray Bracket Assembly
(Not Spared)
9 – Rack (Not Spared)
10 – Tray Guide (Not Spared)
11 015K51640 Stack Paper Sensor Assembly
12 130K88770 Stack Paper Sensor, Stacker Upper
Limit/Stack A/Stack B Sensor
13 – Actuator (P/O PL 17.10 Item 11)
14 – Bracket (P/O PL 17.10 Item 11)
15 – Spring (P/O PL 17.10 Item 11)
16 – Cover (P/O PL 17.10 Item 11)
17 – Bracket (Not Spared)
18 – Bracket (Not Spared)
19 – Bracket (Not Spared)
20 – Pin (Not Spared)
21 – Bearing (Not Spared)
22 – Shaft (Not Spared)
23 – Rivet (Not Spared)
24 – Elevator Belt (Not Spared) (REP
16.10.2)
