Xerox WorkCentre 7132 Service Documentation

January 2007
5-26
WorkCentre 7132
PL 8.2
Reversion 4.0
Parts-list

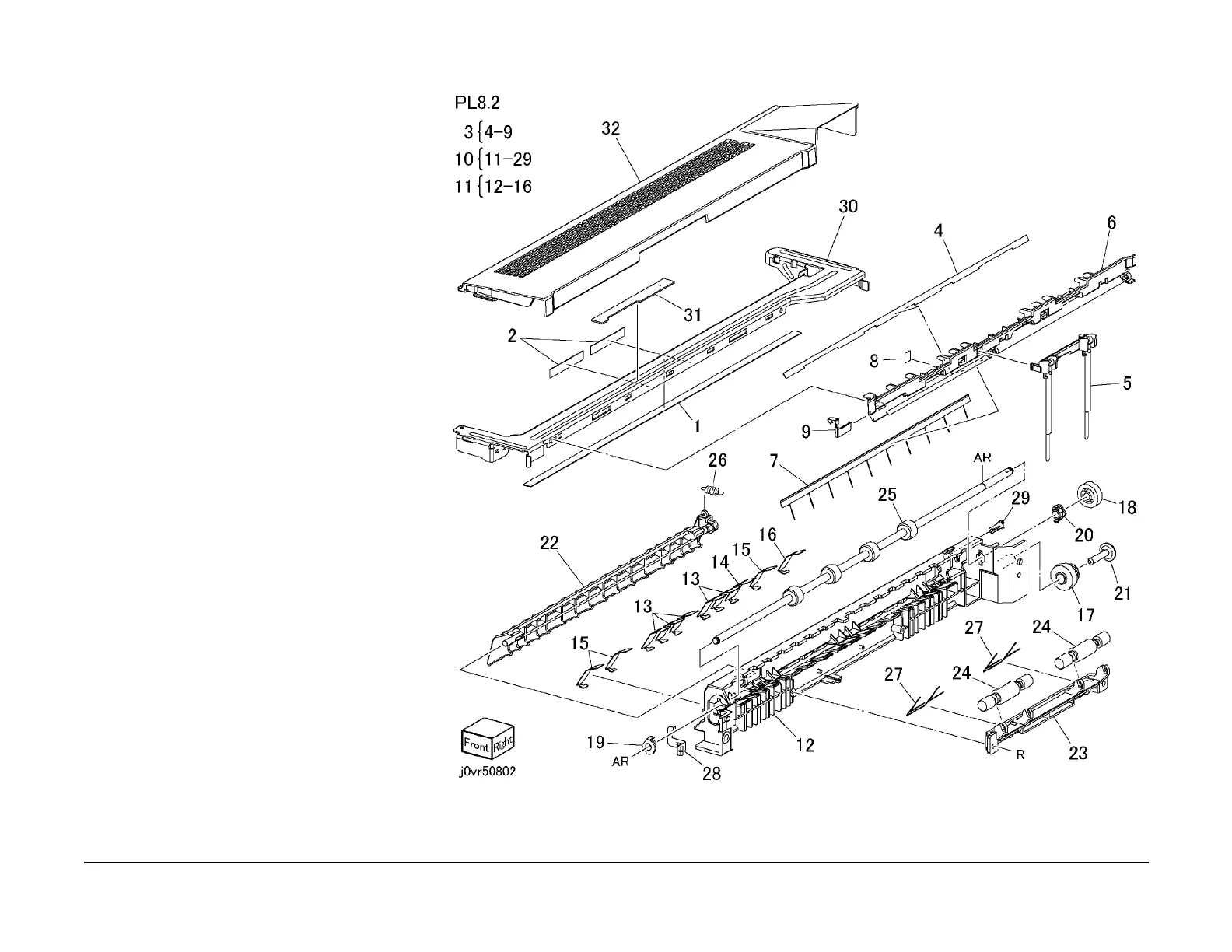

PL 8.2 Exit 1
Item Part Description
1 – Pad-Exit A (Not Spared)
2 – Pad-Exit B (Not Spared)
3 038K89120 Exit 1 Guide Assembly
4 – Pad-Exit C (P/O PL 8.2 Item 3)
5 – Paper Weight (P/O PL 8.2 Item 3)
6 – Exit 1 Tray Guide (P/O PL 8.2 Item
3)
7 – Exit 1 Static Eliminator (P/O PL 8.2
Item 3)
8 – Gasket (P/O PL 8.2 Item 3)
9 – Earth Plate (P/O PL 8.2 Item 3)
10 059K44011 Exit 1 Transport Assembly
11 – Low Chute Assembly
12 – Low Chute (P/O PL 8.2 Item 12)
13 – Seal-V1 (P/O PL 8.2 Item 11)
14 – Seal-V2 (P/O PL 8.2 Item 11)
15 – Seal-V3 (P/O PL 8.2 Item 11)
16 – Seal-V4 (P/O PL 8.2 Item 11)
17 – Exit Gear (P/O PL 8.2 Item 10)
18 – Gear (19Z) (P/O PL 8.2 Item 10)
19 013E25550 Bearing
20 – Bearing (P/O PL 8.2 Item 10)
21 – Cap (P/O PL 8.2 Item 10)
22 – Exit 1 Gate (P/O PL 8.2 Item 10)
23 – Exit 1 Support (P/O PL 8.2 Item 10)
24 059E02150 Pinch Exit Roller
25 059K43000 Exit 1 Roller
26 – Gate Spring (P/O PL 8.2 Item 10)
27 – Pinch Exit Spring (P/O PL 8.2 Item
10)
28 – Earth Plate (P/O PL 8.2 Item 10)
29 – Gate Stopper (P/O PL 8.2 Item 10)
30 – Exit 2 Bracket (Not Spared)
31 – Exit 1 Label (Not Spared)
32 – Top Exit Cover (Not Spared)
