Xerox WorkCentre 7132 Service Documentation

January 2007
5-91
WorkCentre 7132
PL 22.4
Parts-list
Reversion 4.0

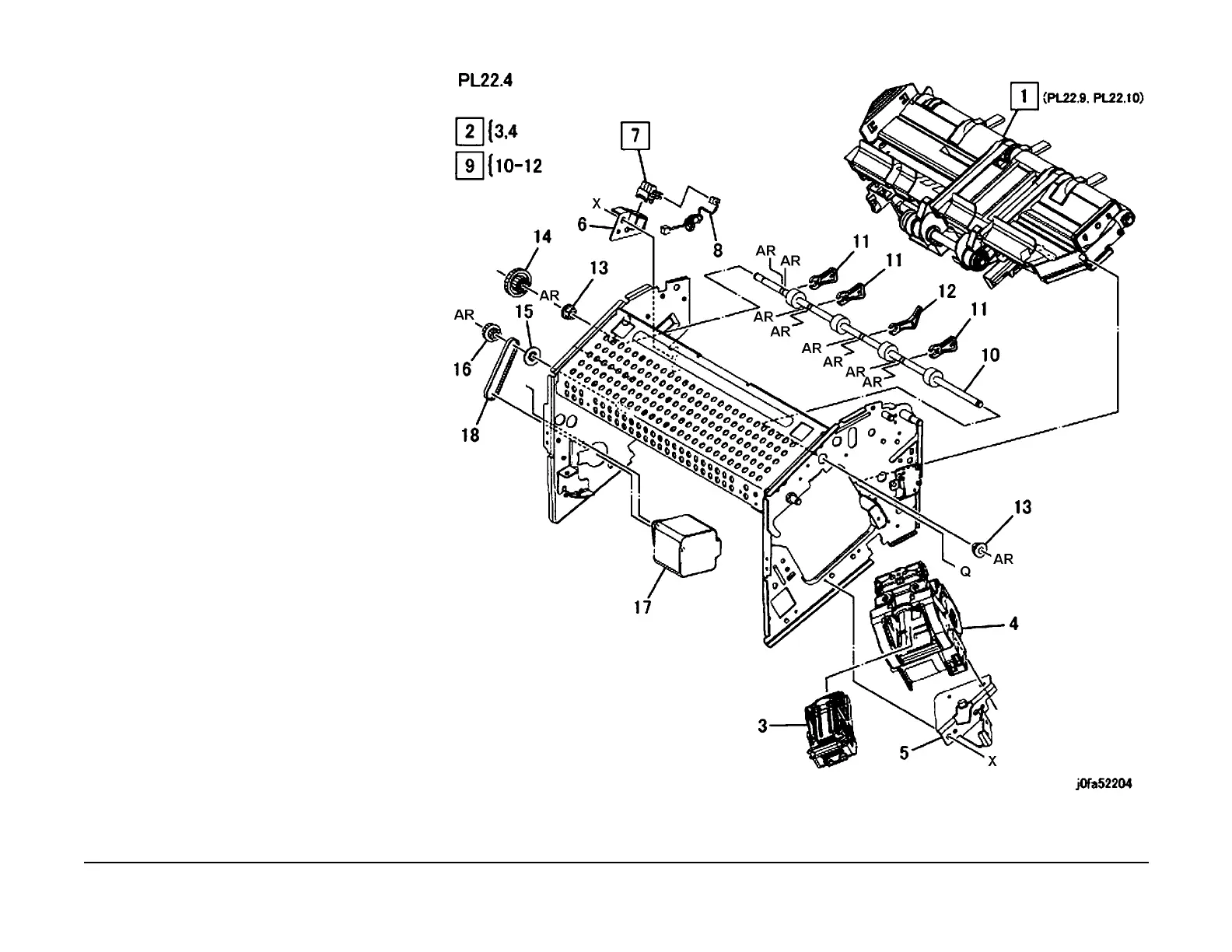

PL 22.4 Stacker Base Assembly (Part
2 of 5)
Item Part Description
1 050K55880 Compile Assembly (REP 22.9.1)
2 029K92350 (SCC) Staple Assembly (REP
22.4.2)
3 – Cartridge (P/O PL 22.4 Item 2)
4 – Stapler (P/O PL 22.4 Item 2)
5 – Bracket (Not Spared)
6 – Support (Not Spared)
7 930W00111 Set Clamp Home Sensor (REP
22.4.3)
8 962K44980 Wire Harness
9 022K72790 Exit Roll Assembly (REP 22.4.1)
10 – Exit Roll (P/O PL 22.4 Item 9)
11 004E15340 Damper
12 004E15330 Center Damper
13 – Bearing (Not Spared)
14 007K94220 Oneway Gear
15 005E89470 Collar
16 807E13230 Gear Pulley (16T/18T)
17 127K49800 Finisher Transport Motor
18 423W06954 Belt
