January 2007
5-81
WorkCentre 7132
PL 17.8
Parts-list
Reversion 4.0

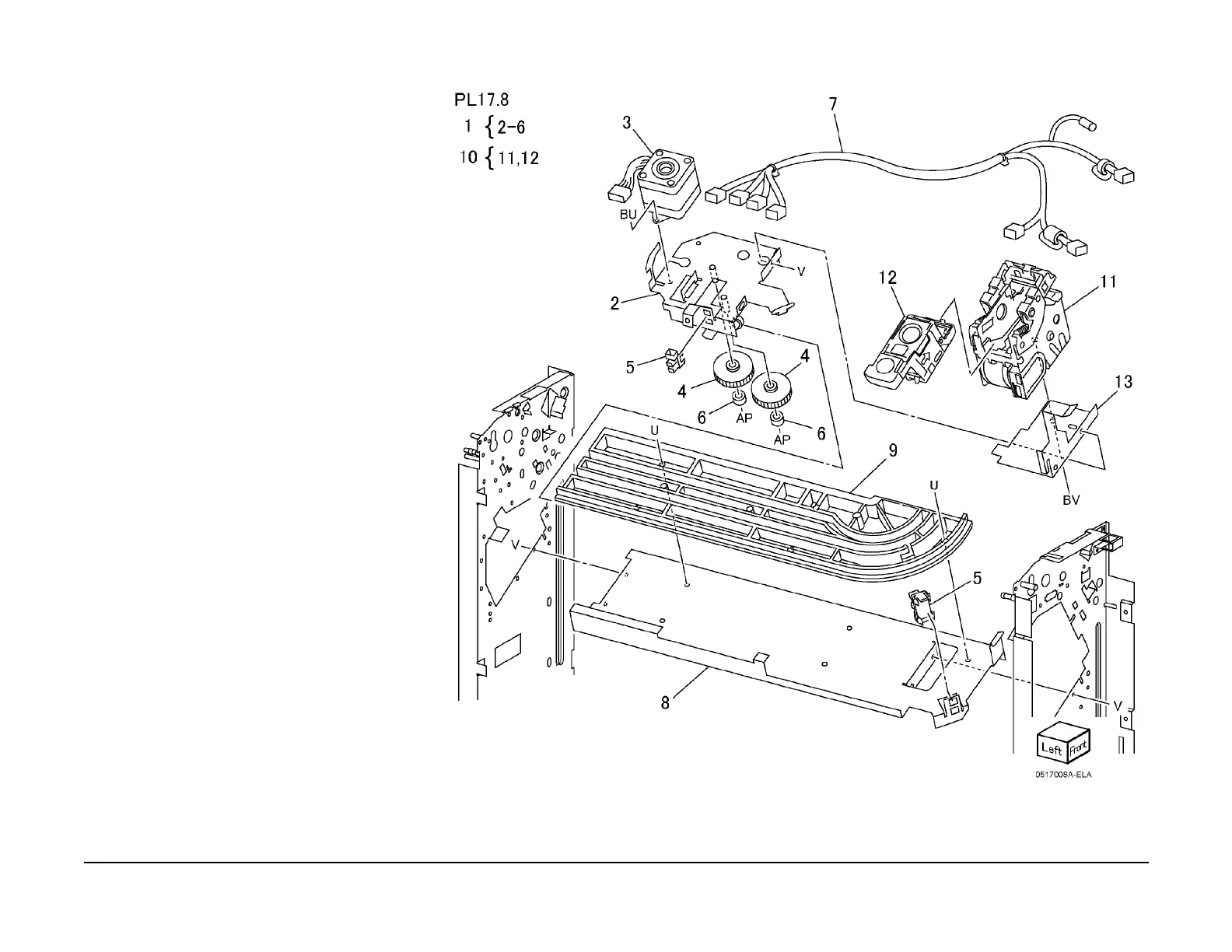

PL 17.8 Staple Unit
Item Part Description
1 041K94260 Carriage Assembly
2 – Bracket Assembly (P/O PL 17.8
Item 1)
3 127K32860 Staple Move Motor
4 – Gear (P/O PL 17.8 Item 1)
5 130K88780 Staple Move Sensor, Staple Front
Corner Sensor
6 – Roll (P/O PL 17.8 Item 1)
7 – Wire Harness (Not Spared)
8 – Plate (Not Spared)
9 – Staple Unit Rail (Not Spared) (REP
16.8.1)
10 029K03720 Staple Assembly (REP 16.8.2)
11 – Staple (P/O PL 17.8 Item 10)
12 050K48750 Staple Cartridge
13 – Bracket (Not Spared)
