January 2007
5-94
WorkCentre 7132
PL 22.7
Reversion 4.0
Parts-list

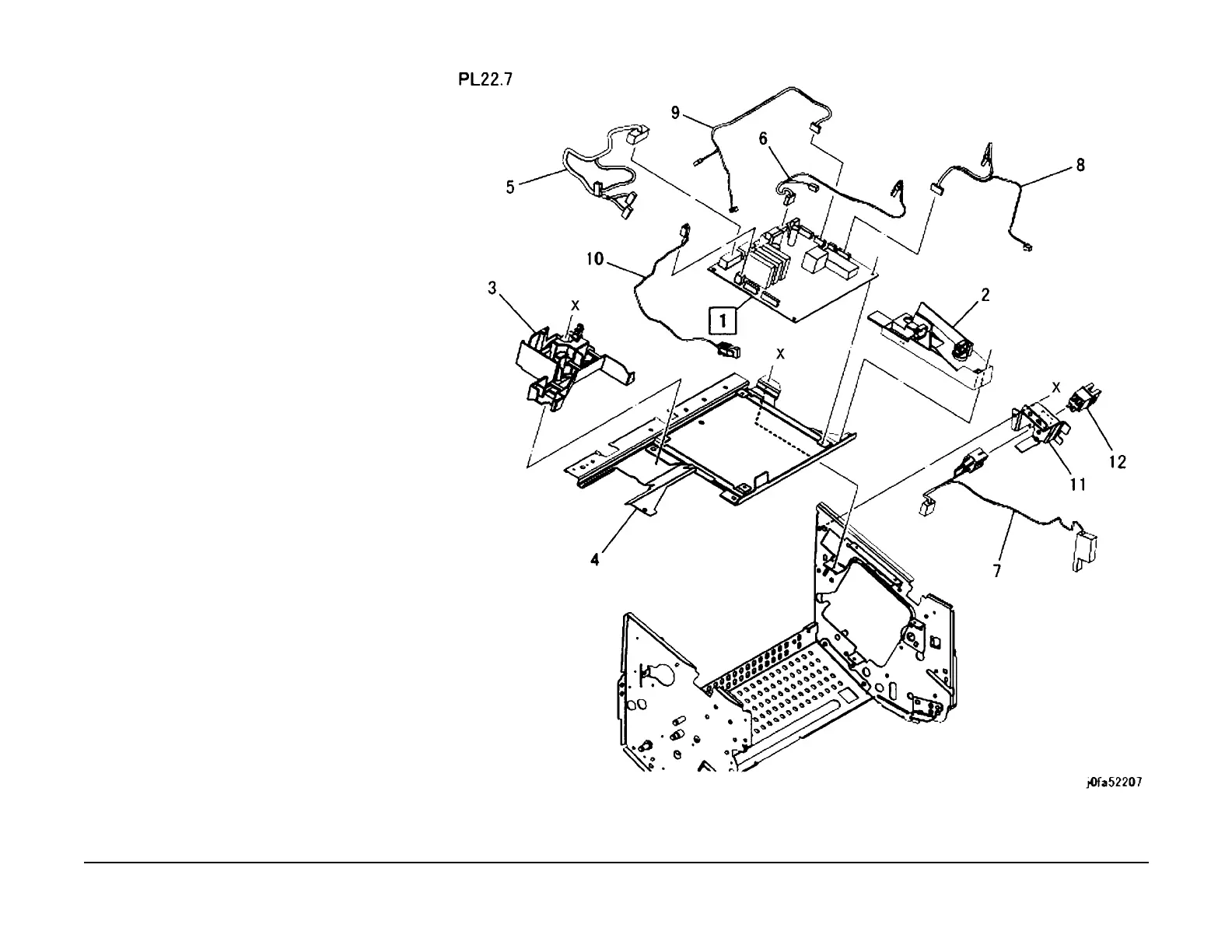

PL 22.7 Stacker Base Assembly (Part
5 of 5)
Item Part Description
1 960K26062 Finisher PWB (REP 22.7.1)
2 055K30850 Connector Bracket
3 – Harness Guide (Not Spared)
4 – PWB Bracket (Not Spared)
5 – Wire Harness (Drive)
6 – Wire Harness (Stapler)
7 – Wire Harness (Interlock)
8 – Wire Harness (Front Sensor)
9 – Wire Harness (Compile)
10 – Wire Harness (Stacker)
11 – Bracket (Not Spared)
12 110E97990 Finisher Front Interlock Switch
