January 2007
5-48
WorkCentre 7132
PL 14.3
Reversion 4.0
Parts-list

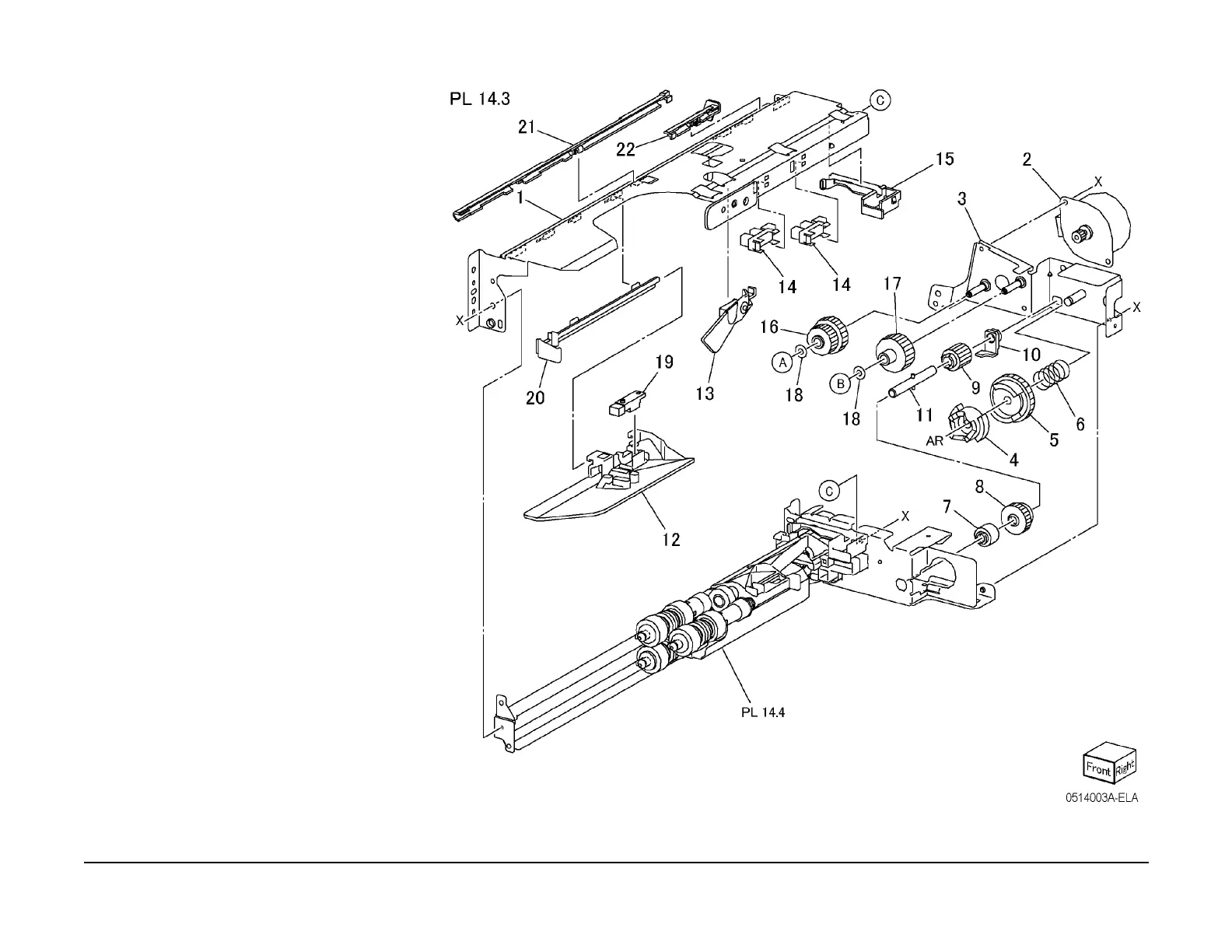

PL 14.3 Feeder 1/2 Assembly 2TM (1
of 2)
Item Part Description
1 – Upper Frame (Not Spared)
2 127K38171 Stepper Motor
3 – Drive Bracket (Not Spared)
4 014E44770 Spacer
5 – Gear (Not Spared)
6 – Spring (Not Spared)
7 – Clutch (Not Spared)
8 – Gear (Not Spared)
9 – Gear Spur (33T) (Not Spared)
10 – Bearing Shaft (Not Spared)
11 – Drive Shaft (Not Spared)
12 – Chute (Not Spared)
13 120E22481 SNR Actuator
14 930W00113 Photo In-Level Sensor, Photo In-No
Paper Sensor
15 – Harness Rear Holder (Not Spared)
16 – Gear (28/21) (Not Spared)
17 – Gear (29T) (Not Spared)
18 – Washer (Not Spared)
19 930W00211 Reflection Sensor
20 – Rail (Not Spared)
21 – Upper Harness Holder (Not
Spared)
22 – Center Harness Holder (Not
Spared)
To Next Page
