January 2007
5-31
WorkCentre 7132
PL 9.3
Parts-list
Reversion 4.0

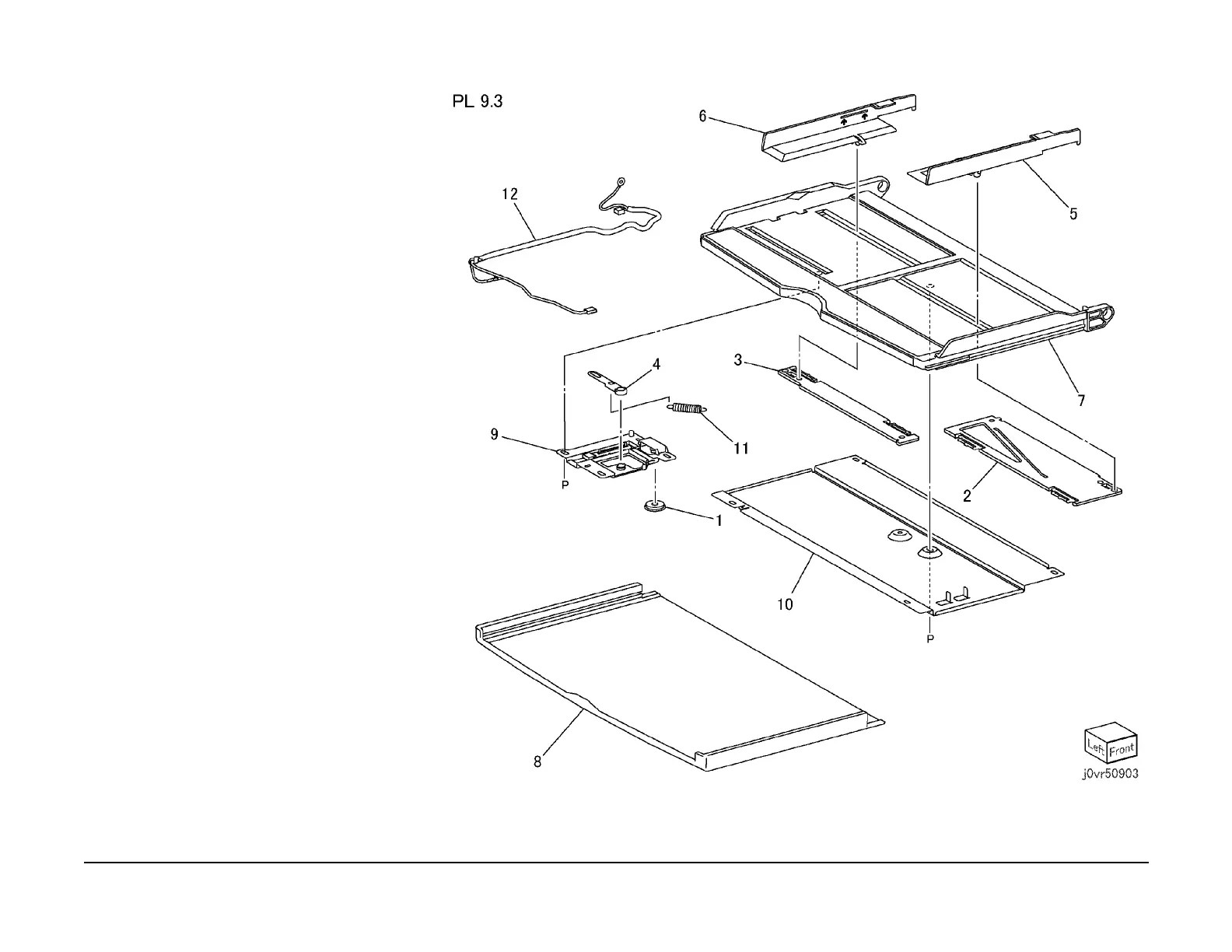

PL 9.3 MSI Tray Assembly
Item Part Description
1 – Pinion Gear (P/O PL 9.1 Item 5)
2 – Front Rack (P/O PL 9.1 Item 5)
3 – Rear Rack (P/O PL 9.1 Item 5)
4 – Link (P/O PL 9.1 Item 5)
5 – Front Side Guide (P/O PL 9.1 Item
5)
6 – Rear Side Guide (P/O PL 9.1 Item
5)
7 – Tray MSI (P/O PL 9.1 Item 5)
8 – Exit Tray (P/O PL 9.1 Item 5)
9 – MSI Sensor (P/O PL 9.1 Item 5)
10 – Tray Cover (P/O PL 9.1 Item 5)
11 – Sensor Spring (P/O PL 9.1 Item 5)
12 962K13120 MSI Harness
