January 2007
5-30
WorkCentre 7132
PL 9.2
Reversion 4.0
Parts-list

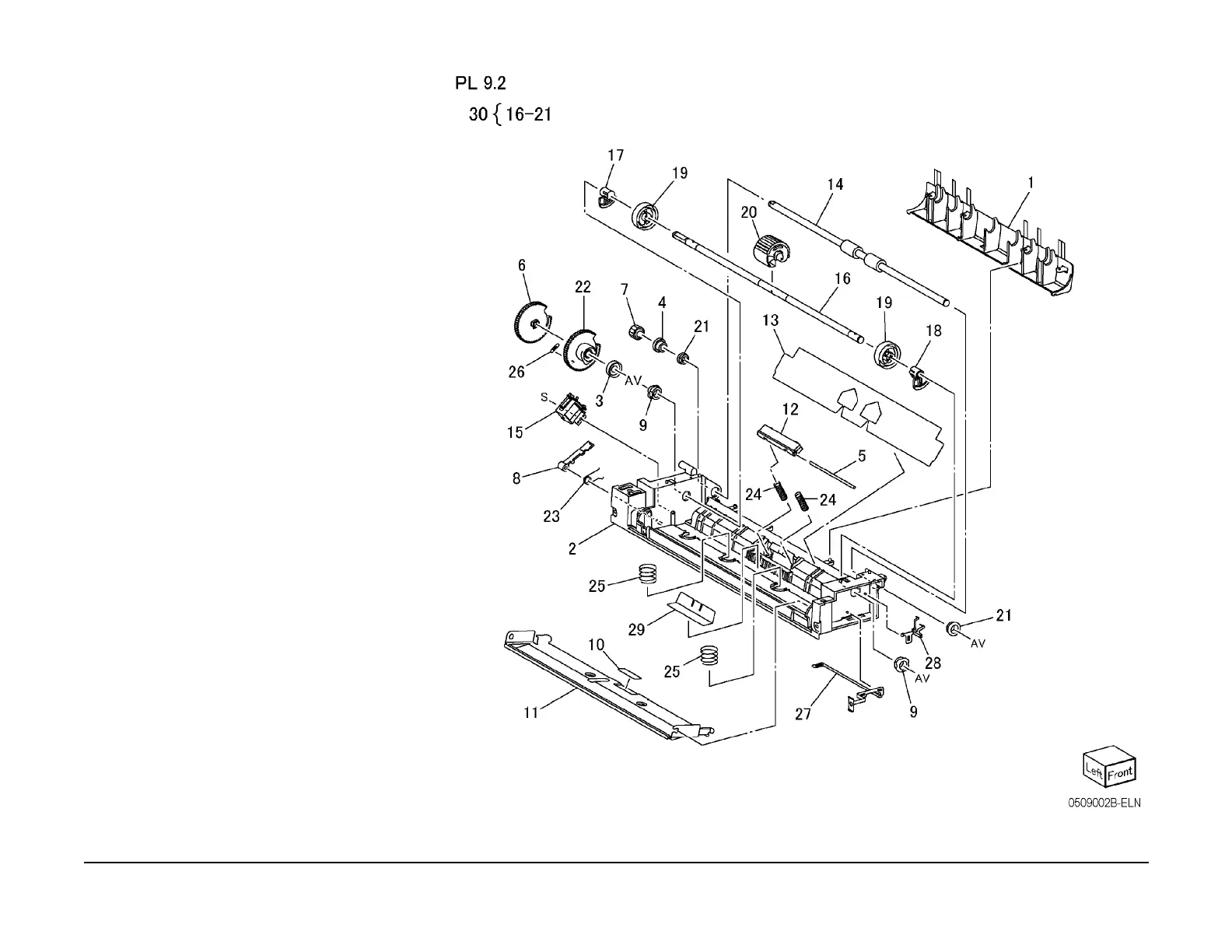

PL 9.2 Lower Frame Assembly
Item Part Description
1 – Low Chute (P/O PL 9.1 Item 14)
2 – MSI Lower Frame (P/O PL 9.1 Item
14)
3 – Stopper Lever (P/O PL 9.1 Item 14)
4 – Collar (P/O PL 9.1 Item 14)
5 – Retard Shaft (P/O PL 9.1 Item 14)
6 – Pick Up Gear (P/O PL 9.1 Item 14)
7 – Gear (18T) (P/O PL 9.1 Item 14)
8 – Gear Lever
9 – Bearing (8) (P/O PL 9.1 Item 14)
10 019E56551 Pad Bottom
11 – Bottom Plate (P/O PL 9.1 Item 14)
12 019K07086 Retard Pad
13 032E21061 Paper Guide
14 059K27141 Drive Roll
15 121E92780 MSI Feed Solenoid
16 – Shaft (P/O PL 9.2 Item 30)
17 – Pick Up Cam (Rear) (P/O PL 9.2
Item 30)
18 – Pick Up Cam (Front) (P/O PL 9.2
Item 30)
19 – Core Roll (P/O PL 9.2 Item 30)
20 059K40654 Feed Roller
21 – Bearing (P/O PL 9.2 Item 30)
22 – Cam Gear (P/O PL 9.2 Item 30)
23 – Lever Gear Spring (P/O PL 9.2 Item
30)
24 – Spring Pad (P/O PL 9.2 Item 30)
25 – Spring (P/O PL 9.2 Item 30)
26 – Gear Cam Spring (P/O PL 9.2 Item
30)
27 – Earth Plate (P/O PL 9.2 Item 30)
28 – Earth Plate (P/O PL 9.2 Item 30)
29 – MSI Paper Guide (P/O PL 9.2 Item
30)
30 059K31390 Feed Roll Assembly (REP 7.2.1)
