January 2007
5-49
WorkCentre 7132
PL 14.4
Parts-list
Reversion 4.0

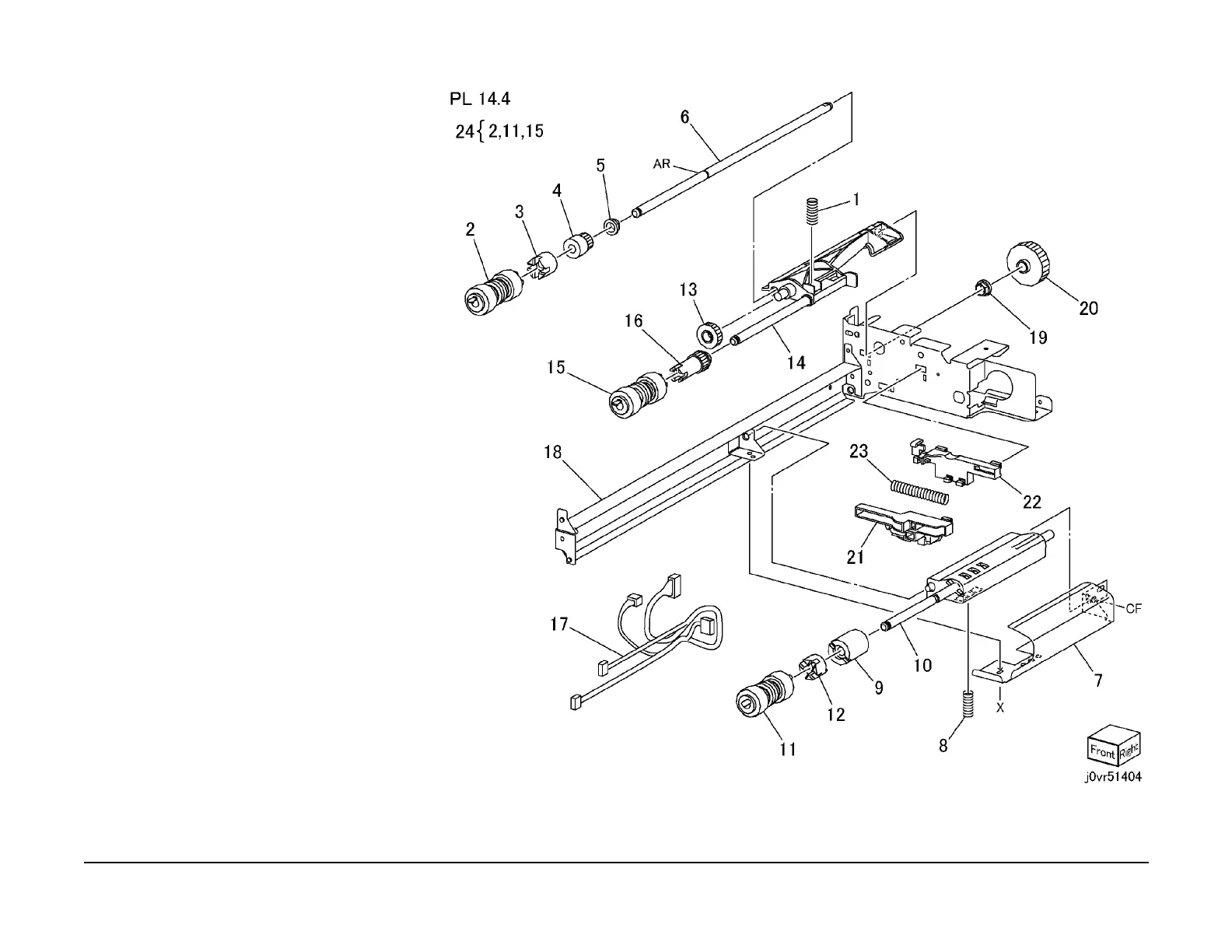

PL 14.4 Feeder 1/2 Assembly 2TM (2
of 2)
Item Part Description
1 – Spring (Not Spared)
2 – Roll (P/O PL 14.4 Item 24)
3 005K05890 Clutch
4 005K06760 Clutch
5 – Bearing (Not Spared)
6 – Feed Shaft (Not Spared)
7 054E23170 Feed In Chute
8 – Retard Spring (Not Spared)
9 005K07010 Friction Clutch
10 – Retard Support (Not Spared)
11 – Roll (P/O PL 14.4 Item 24)
12 – Spacer (Not Spared)
13 – Gear (13T) (Not Spared)
14 – Nudger Support (Not Spared)
15 – Roll (P/O PL 14.4 Item 24)
16 – Gear (25T) (Not Spared)
17 962K18912 Feed Harness
18 – Rear Frame (Not Spared)
19 – Bearing Sleeve (Not Spared)
20 – Gear (34T) (Not Spared)
21 – Lever (Not Spared)
22 – Holder (Not Spared)
23 – Spring (Not Spared)
24 604K20360 Tray Feed Roll Kit (REP 12.3.1)
To Next Page
