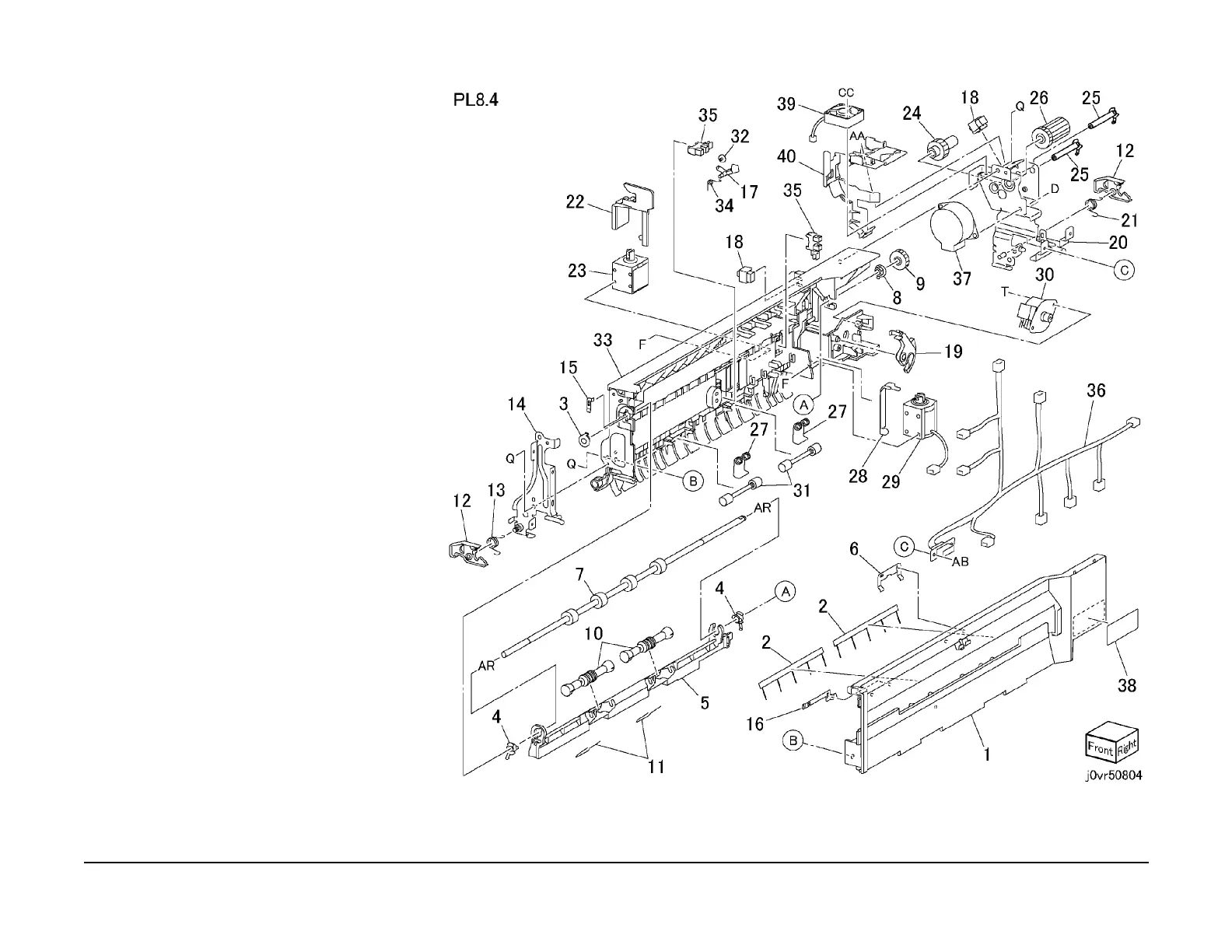

PL 8.4 Tray Guide Assembly (OCT 2)
Item Part Description
1 – Tray 2 Guide (P/O PL 8.1 Item 2)
2 – Exit 2 Eliminator (P/O PL 8.1 Item
2)
3 013E25550 Bearing
4 – Bearing (P/O PL 8.1 Item 2)
5 – OCT2 Chute (P/O PL 8.1 Item 2)
6 – Earth Plate (P/O PL 8.1 Item 2)
7 059K26760 Exit 2 Roll
8 – Bearing Roll (P/O PL 8.1 Item 2)
9 – Gear (22Z) (P/O PL 8.1 Item 2)
10 – Exit Pinch Roll (P/O PL 8.1 Item 2)
11 – Exit Pinch Spring (P/O PL 8.1 Item
2)
12 003E60171 Latch
13 809E50210 Front Latch Spring
14 – Front Plate (P/O PL 8.1 Item 2)
15 – Earth 2 Plate (P/O PL 8.1 Item 2)
16 – Earth 3 Plate (P/O PL 8.1 Item 2)
17 120E22451 Exit Actuator
18 110E11580 Exit 2 Interlock Switch
19 – Offset 2 Gear (P/O PL 8.1 Item 2)
20 – Rear Plate (P/O PL 8.1 Item 2)
21 809E52100 Rear Latch Spring
22 – Link (P/O PL 8.1 Item 2)
23 121K32370 Face Up Gate Solenoid
24 – Gear (33Z) (P/O PL 8.1 Item 2)
25 – Gear Shaft (P/O PL 8.1 Item 2)
26 – Gear (16/47Z) (P/O PL 8.1 Item 2)
27 – Pinch In Spring (P/O PL 8.1 Item 2)
28 – Exit Gate Link (P/O PL 8.1 Item 2)
29 121K37100 Solenoid
30 127K37951 Offset Motor
31 – Pinch Roll (P/O PL 8.1 Item 2)
32 – Actuator Roller (P/O PL 8.1 Item 2)
33 – Lower Chute (P/O PL 8.1 Item 2)
34 809E37332 Actuator Spring
35 930W00113 Photo Sensor
36 – Wire Harness (P/O PL 8.1 Item 2)
37 127K48890 Exit 2 Motor
38 – Label (P/O PL 8.1 Item 2)
39 127K39420 CCD Fan
40 – Inner Cover (P/O PL 8.1 Item 2)
