Xerox WorkCentre 7132

January 2007
4-185
WorkCentre 7132
REP 16.12.1, REP 16.12.2
Repairs/Adjustments
Reversion 4.0
3. Remove the Finisher PWB. (Figure 2)
1. Remove the screws (x5).
2. Remove the Finisher PWB.

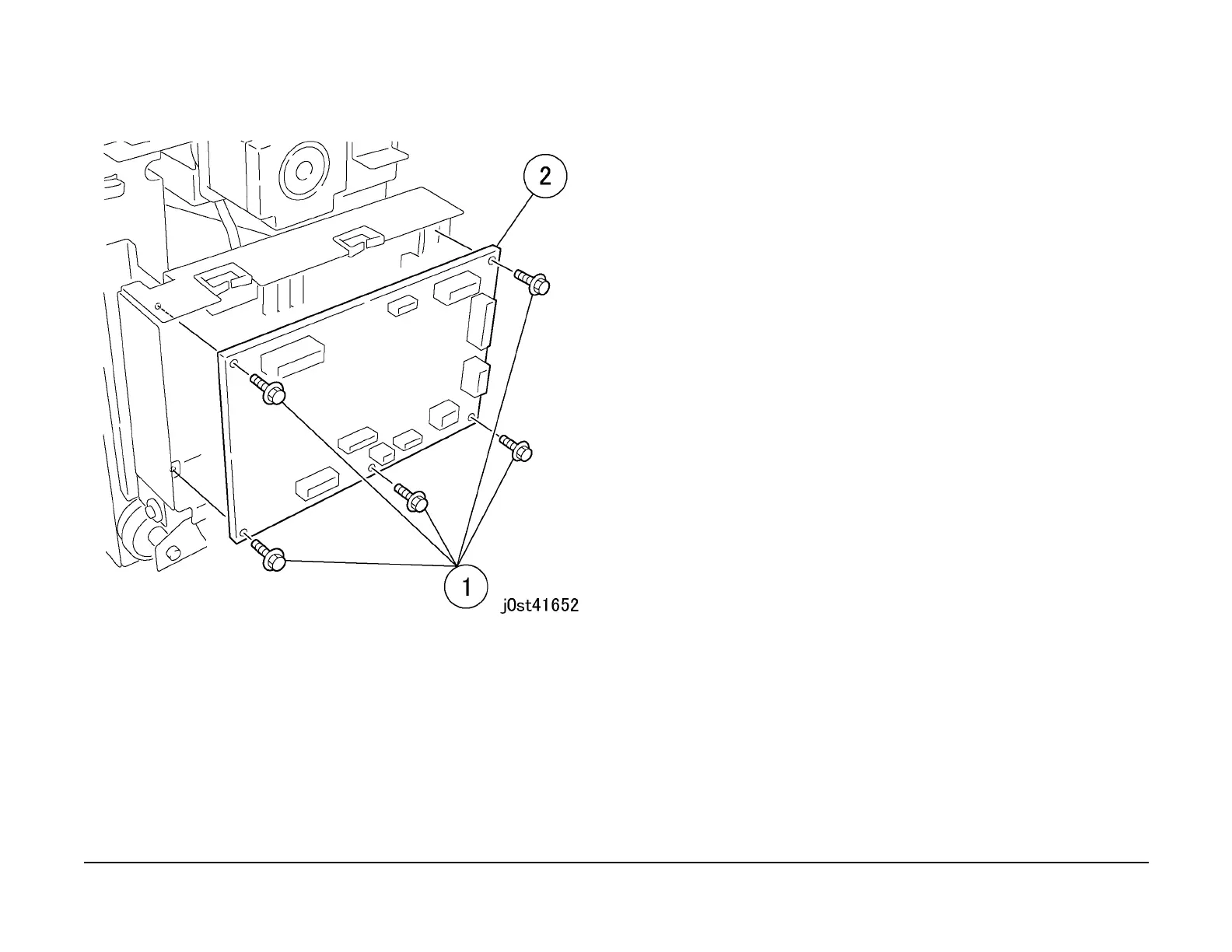

Figure 2 Removing the Finisher PWB
Replacement
1. To install, carry out the removal steps in reverse order taking note of the following:
NOTE: When installing, keep the core shown in Figure 2 inside the box.
REP 16.12.2 Finisher LVPS PWB
Parts List on PL 17.13
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Switch off the power and disconnect the Power Cord.
2. Remove the Front Cover. (REP 16.4.1)
3. Open the Top Cover Assembly.
4. Remove the Rear Cover. (REP 16.4.2)
5. Remove the Stacker Tray. (Figure 1)
1. Remove the screw (1).
2. Remove the Stacker Tray.
