4-216
WorkCentre 7132
REP 22.8.1
Reversion 4.0
Repairs/Adjustments
8. Release the Clamps and the Hook to remove the wire. (Figure 2)
(1)Release Clamps (5).
(2)Remove Wire from Hook.

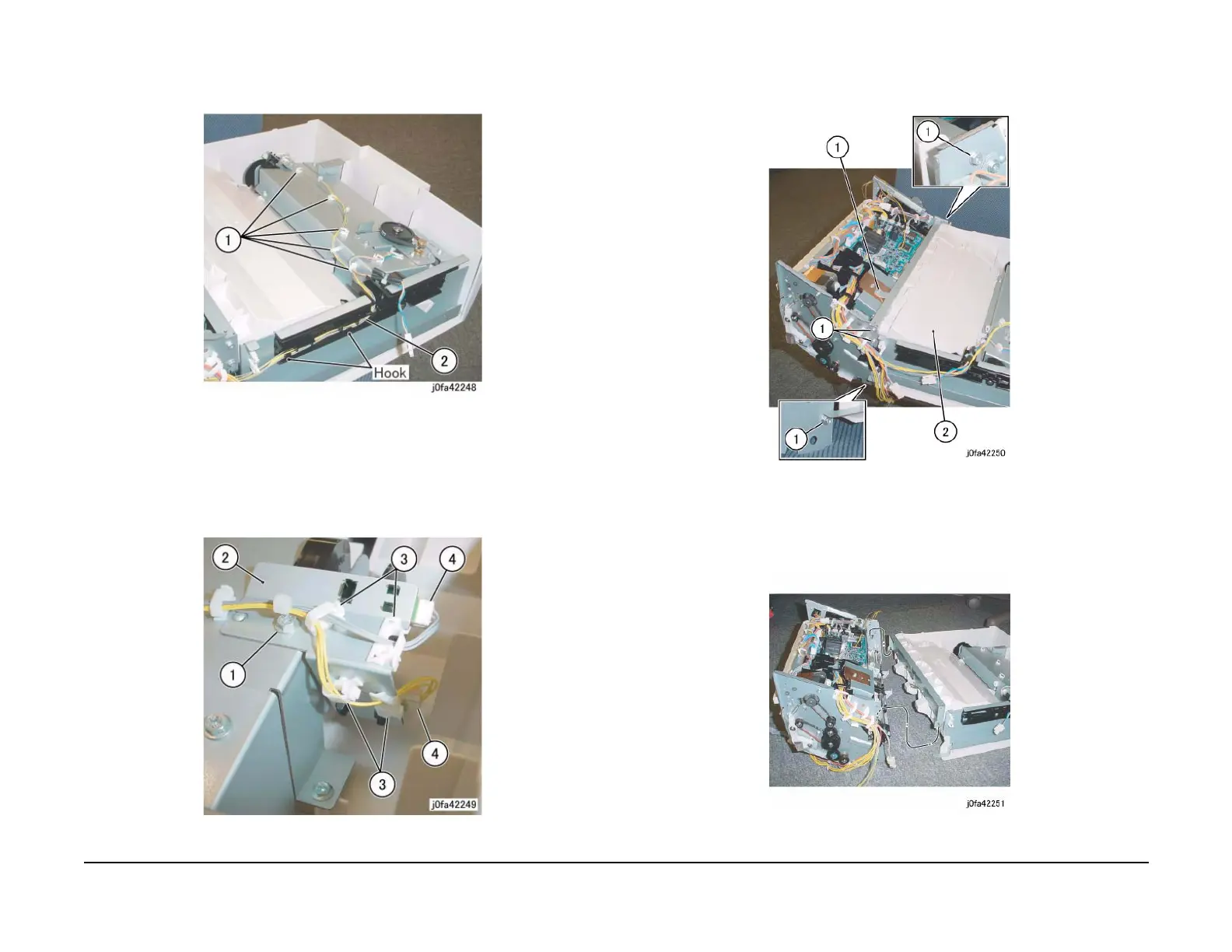

Figure 2 Disconnecting the Wire (j0fa42248)
9. Remove the Stacker Stack Sensor Assembly. (Figure 3)
(1)Remove Screw.
(2)Remove Stacker Stack Sensor Assembly.
(3)Release Clamps (4).
(4)Disconnect Connectors (2).
Figure 3 Removing the Stacker Sensor Assembly (j0fa42249)
10. Remove the Stacker Tray Assembly. (Figure 4)
(1)Remove Screws (5).
(2)Remove Stacker Tray Assembly.
Figure 4 Removing the Stacker Tray Assembly (j0fa42250)
Replacement
1. Reverse the removal procedure for replacement.
2. Install the Stacker Tray Assembly and A-Finisher as shown in the figure. (Figure 5)
Figure 5 Installing the Stacker Tray Assembly (j0fa42251)
