Xerox WorkCentre 7132 Service Documentation

January 2007
5-16
WorkCentre 7132
PL 3.1
Reversion 4.0
Parts-list

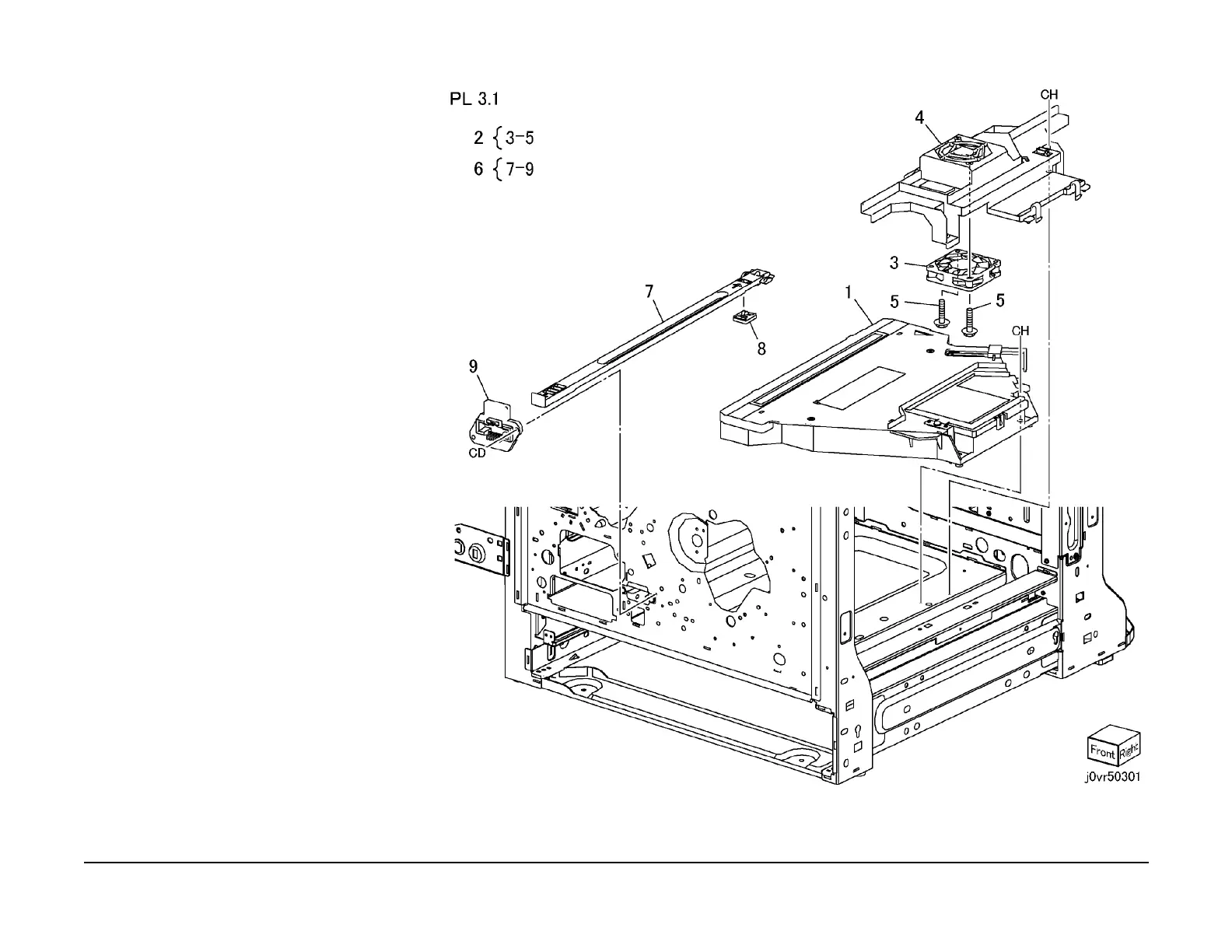

PL 3.1 ROS
Item Part Description
1 062K16371 ROS Assembly (REP 3.1.1)
2 – ROS Fan Assembly (Not Spared)
3 927W00111 ROS Fan
4 – Duct (P/O PL 3.1 Item 2)
5 – Hex Screw (P/O PL 3.1 Item 2)
6 – ROS Cleaner Assembly (Not
Spared)
7 – Cleaner Rod (P/O PL 3.1 Item 6)
8 – Cleaner Base (P/O PL 3.1 Item 6)
9 – Guide Rod (P/O PL 3.1 Item 6)
