January 2007
5-18
WorkCentre 7132
PL 4.2
Reversion 4.0
Parts-list

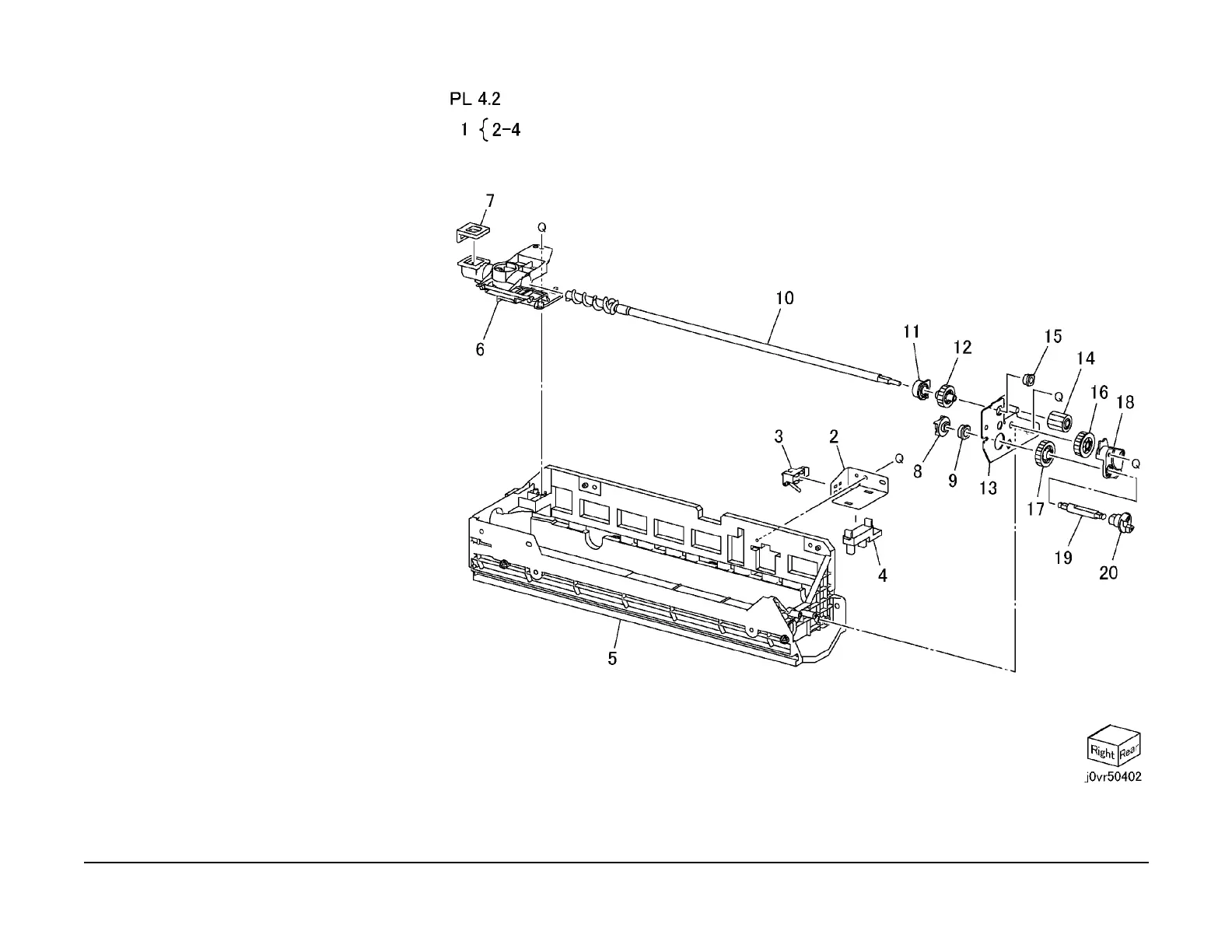

PL 4.2 Waste Bottle Guide Assembly
Item Part Description
1 068K29580 Bracket Sensor Assembly
2 – Bracket Sensor (P/O PL 4.2 Item 1)
3 – Present Sensor (P/O PL 4.2 Item 1)
4 – Toner Full Sensor (P/O PL 4.2 Item
1)
5 – Waste Bottle Guide (P/O PL 4.1
Item 2)
6 – Pipe Collector (P/O PL 4.1 Item 2)
7 835E02121 Toner Seal
8 005E89320 Middle Coupling
9 – Bearing Sleeve (P/O PL 4.1 Item 2)
10 – Auger Shaft (P/O PL 4.1 Item 2)
11 – Auger Bearing (P/O PL 4.1 Item 2)
12 807E12770 Gear (22T)
13 – IB Bracket (P/O PL 4.1 Item 2)
14 807E12760 Gear (17T)
15 – Bearing Sleeve (P/O PL 4.1 Item 2)
16 807E12750 Gear (24T)
17 807E12740 Gear (26T)
18 – Thrust Guide (P/O PL 4.1 Item 2)
19 – Shaft Slide (P/O PL 4.1 Item 2)
20 005E89310 Self Locate Coupling
To Next Page
