Xerox WorkCentre 7132 Service Documentation

January 2007
5-78
WorkCentre 7132
PL 17.5
Reversion 4.0
Parts-list

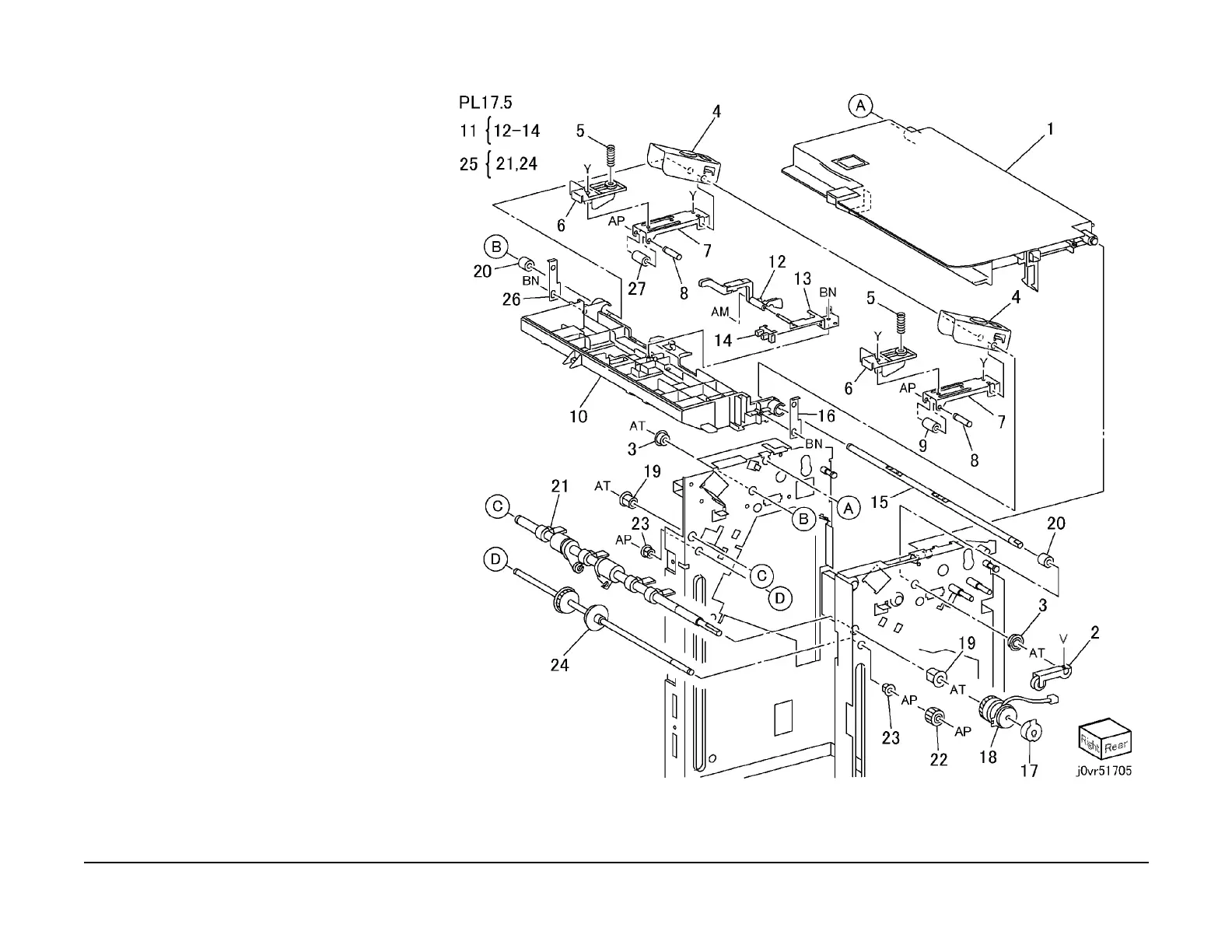

PL 17.5 Top Open Cover and Eject
Roll
Item Part Description
1 802K28571 Top Open Cover Assembly
2 – Arm Assembly (Not Spared)
3 – Bearing (Not Spared)
4 – Bracket (Not Spared)
5 – Spring (Not Spared)
6 – Support (Not Spared)
7 – Bracket (Not Spared)
8 – Shaft (Not Spared)
9 022K61480 Eject Pinch Roll
10 – Eject Chute (Not Spared)
11 130K61920 Stack Height Sensor Assembly
(REP 16.5.1)
12 – Actuator (P/O PL 17.5 Item 11)
13 – Bracket (P/O PL 17.5 Item 11)
14 – Stack Height Sensor (P/O PL 17.5
Item 11)
15 – Shaft (Not Spared)
16 – Link (Not Spared)
17 – Actuator (Not Spared)
18 121K34190 Set Clamp Clutch
19 – Bearing (Not Spared)
20 – Collar (Not Spared)
21 – Eject Roll (P/O PL 17.5 Item 25)
(REP 16.5.2)
22 007K86910 Gear (20T)
23 – Bearing (Not Spared)
24 – Eject Shaft (P/O PL 17.5 Item 25)
25 006K23710 Eject Roll Assembly
26 – Link (Not Spared)
27 022K67800 Eject Pinch Roll (Front)
