WorkCentre 7132
REP 4.2.6
Reversion 4.0
Repairs/Adjustments
NOTE: Note that the Belt Sensor reflector is located toward the outboard end of the IBT
Module. Be sure to install the IBT Belt in this orientation.

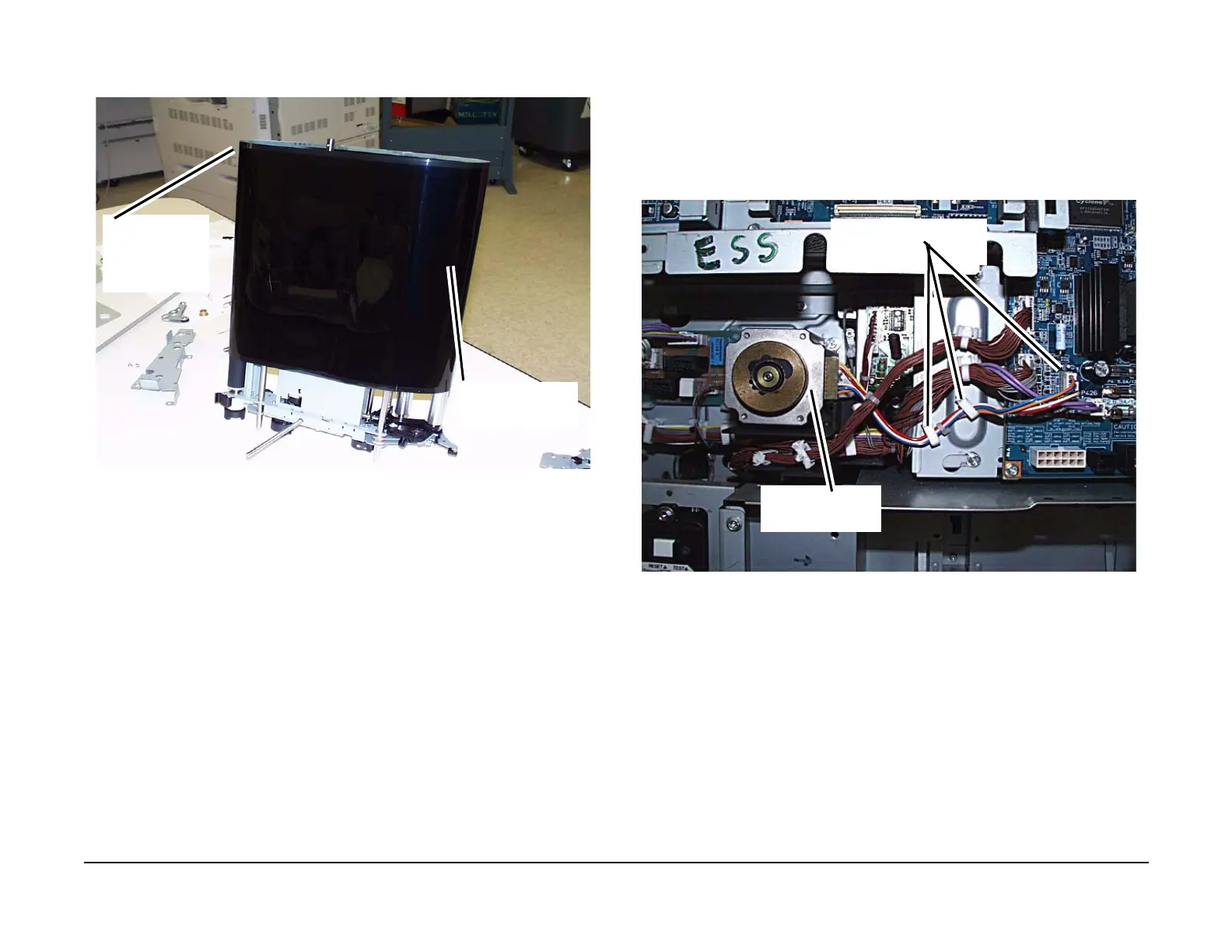

Figure 11 Removing the Belt
Replacement
1. Reassemble the IBT Module in reverse order of removal.
REP 4.2.6 Rotary Drive Motor
Parts List on PL 5.1
Removal
1. Switch off the power and disconnect the power cord.
2. Remove the Upper Rear Cover.
3. Remove the Lower Rear Cover.
4. Disconnect the Motor connector and wire harness clamps. (Figure 1)
Figure 1 Disconnecting the connector and harness
5. Remove the screws (4) and remove the Rotary Motor. (Figure 2)
Remove the Belt in
this direction
NOTE: Notice the
orientation of the
Belt Sensor
Reflector
Disconnect the connector
and wire harness
Rotary Motor
