January 2007
5-72
WorkCentre 7132
PL 16.9
Reversion 4.0
Parts-list

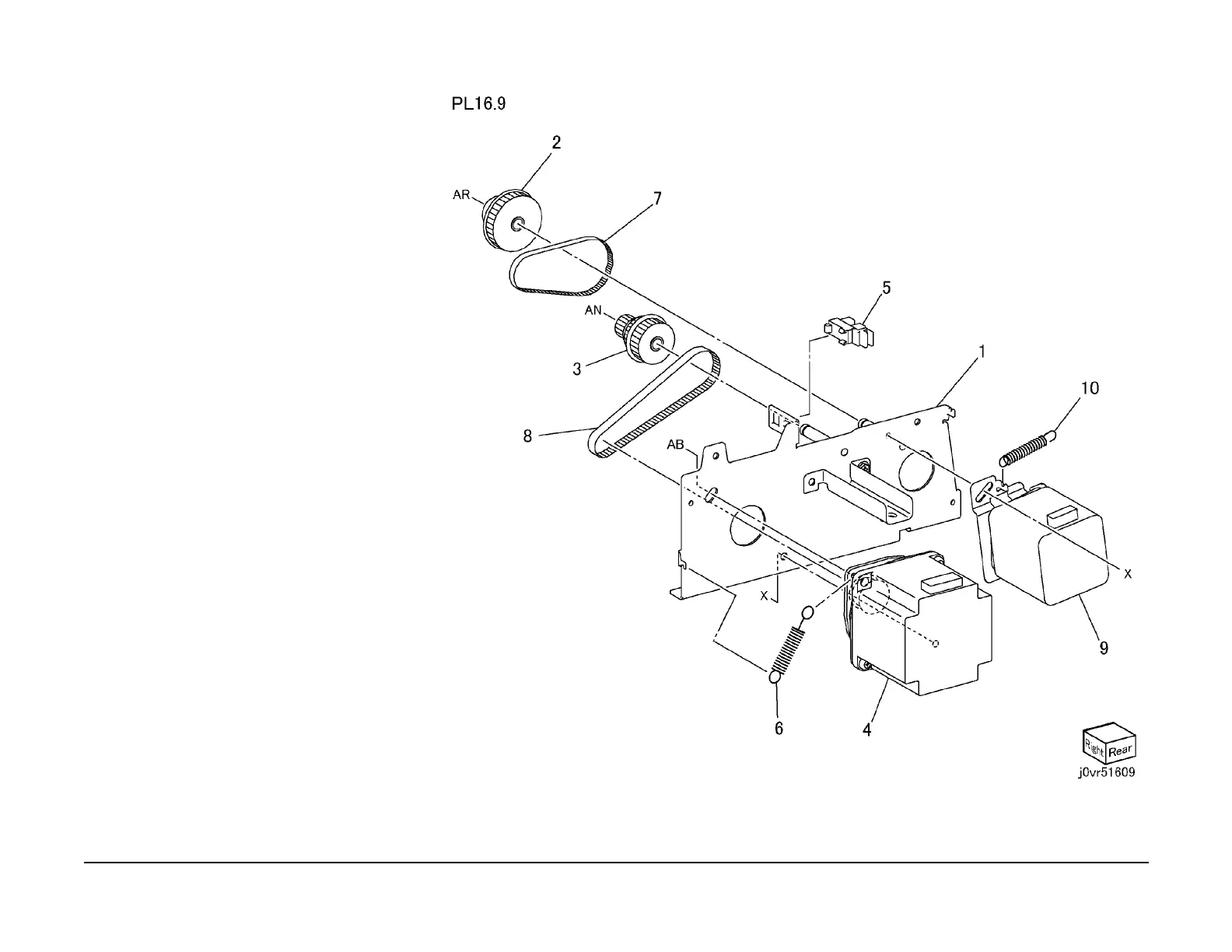

PL 16.9 Motor Unit Assembly
Item Part Description
1 – Motor Bracket (P/O PL 16.8 Item
15)
2 – Gear Pulley (20/50) (P/O PL 16.8
Item 15)
3 – Gear Pulley (14/32/37) (P/O PL
16.8 Item 15)
4 127K38440 DADF Feed Motor
5 930W00111 DADF Feed Out Sensor
6 – Spring (P/O PL 15.8 Item 15)
7 423W08055 Takeaway Belt (4mm)
8 423W29955 Feed Belt (6mm)
9 127K38460 DADF Registration Motor
10 – Spring (Not Spared)
