Xerox WorkCentre 7132 Service Documentation

January 2007
4-142
WorkCentre 7132
REP 15.6.1
Reversion 4.0
Repairs/Adjustments
REP 15.6.1 Nudger Roll, Feed Roll
Parts List on PL 16.6
Removal
NOTE: The Feed, Retard and Nudger Rolls must be replaced at the same time.
1. Open the Top Cover Assembly.
2. Remove the Feed Upper Chute. (Figure 1)
1. Remove the screw (1).
2. Remove the Feed Upper Chute.
3. Precautions during Installation:
A. Insert the Boss into the U-groove.
B. Insert the Tab into the Tab Slot.

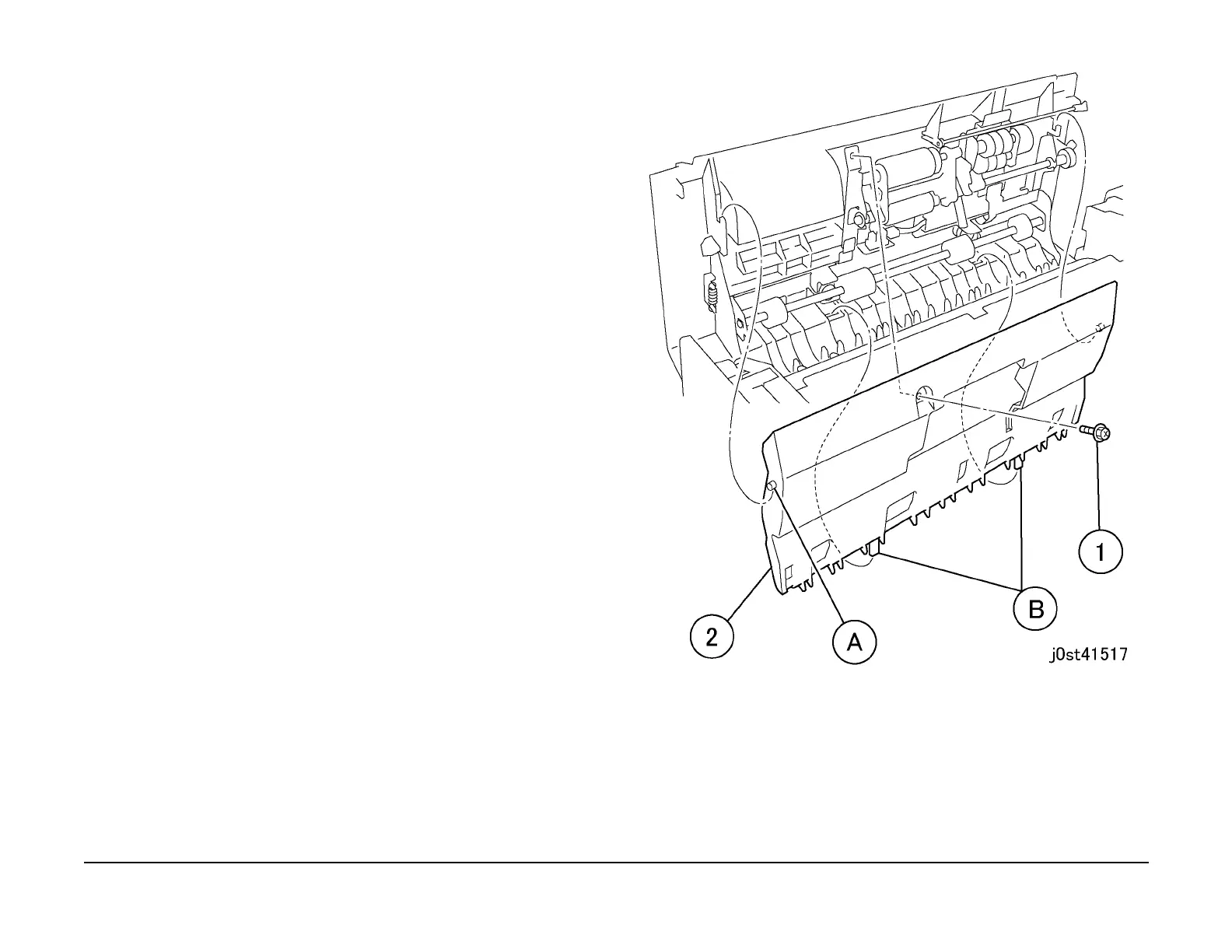

Figure 1 Removing the Feed Upper Chute
3. To remove the Nudger Roll rotate the inboard gear of the Torque Limiter until the Nudger
Roll is fully extended. (Figure 2)
