Xerox WorkCentre 7132 Service Documentation

January 2007
4-143
WorkCentre 7132
REP 15.6.1
Repairs/Adjustments
Reversion 4.0

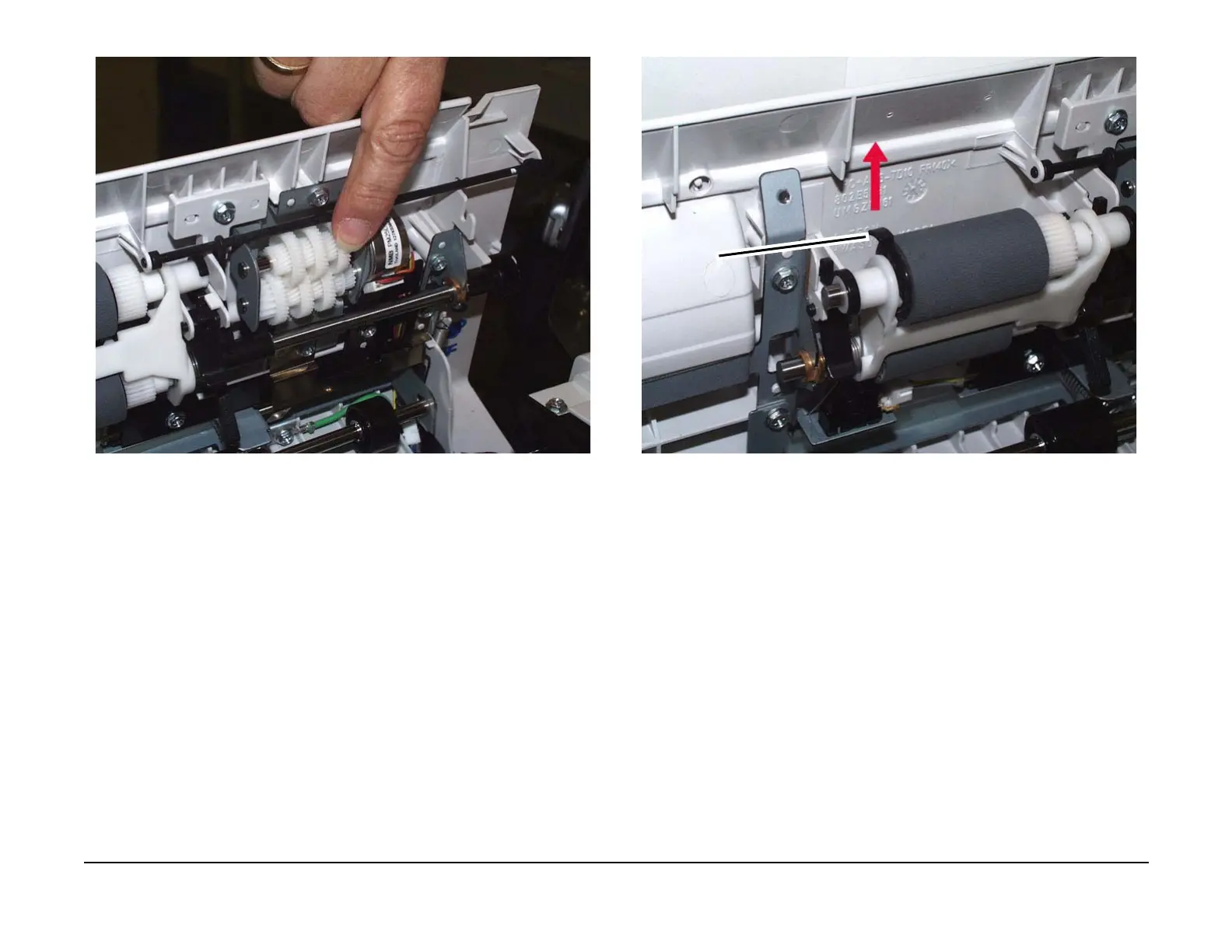

Figure 2 Rotate the gear to extend the Retard Roll
4. Lift the retaining clip from the Nudger Roll. (Figure 3)
Figure 3 Removing the retaining clip from the Nudger Roll
5. Remove the Nudger Roll Shaft and remove the Nudger Roll. (Figure 4)
Retraining
Clip
