January 2007
4-160
WorkCentre 7132
REP 16.5.1, REP 16.5.2
Reversion 4.0
Repairs/Adjustments

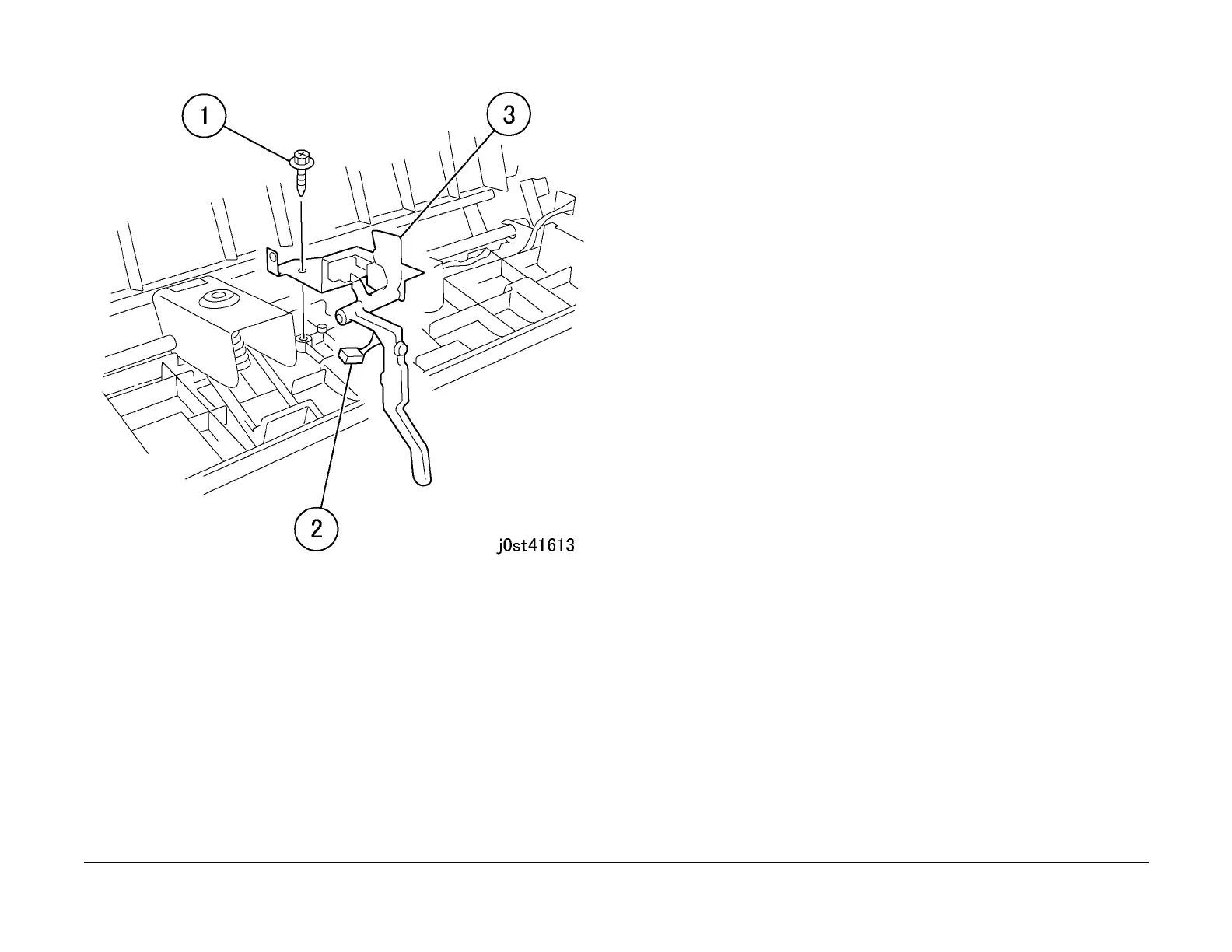

Figure 2 Removing the Stack Height Sensor Assembly
REP 16.5.2 Eject Roll Assembly
Parts List on PL 17.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
Check that “Ready to Copy” is displayed on the Control Panel display.
1. Remove the following parts:
• Rear Cover (REP 16.4.2)
• Front Cover Assembly (REP 16.4.1)
2. Remove the Stacker Tray. (Figure 1)
1. Remove the screw.
2. Remove the Stacker Tray.
To Next Page
