Xerox WorkCentre 7132 Service Documentation

January 2007
5-15
WorkCentre 7132
PL 2.7
Parts-list
Reversion 4.0

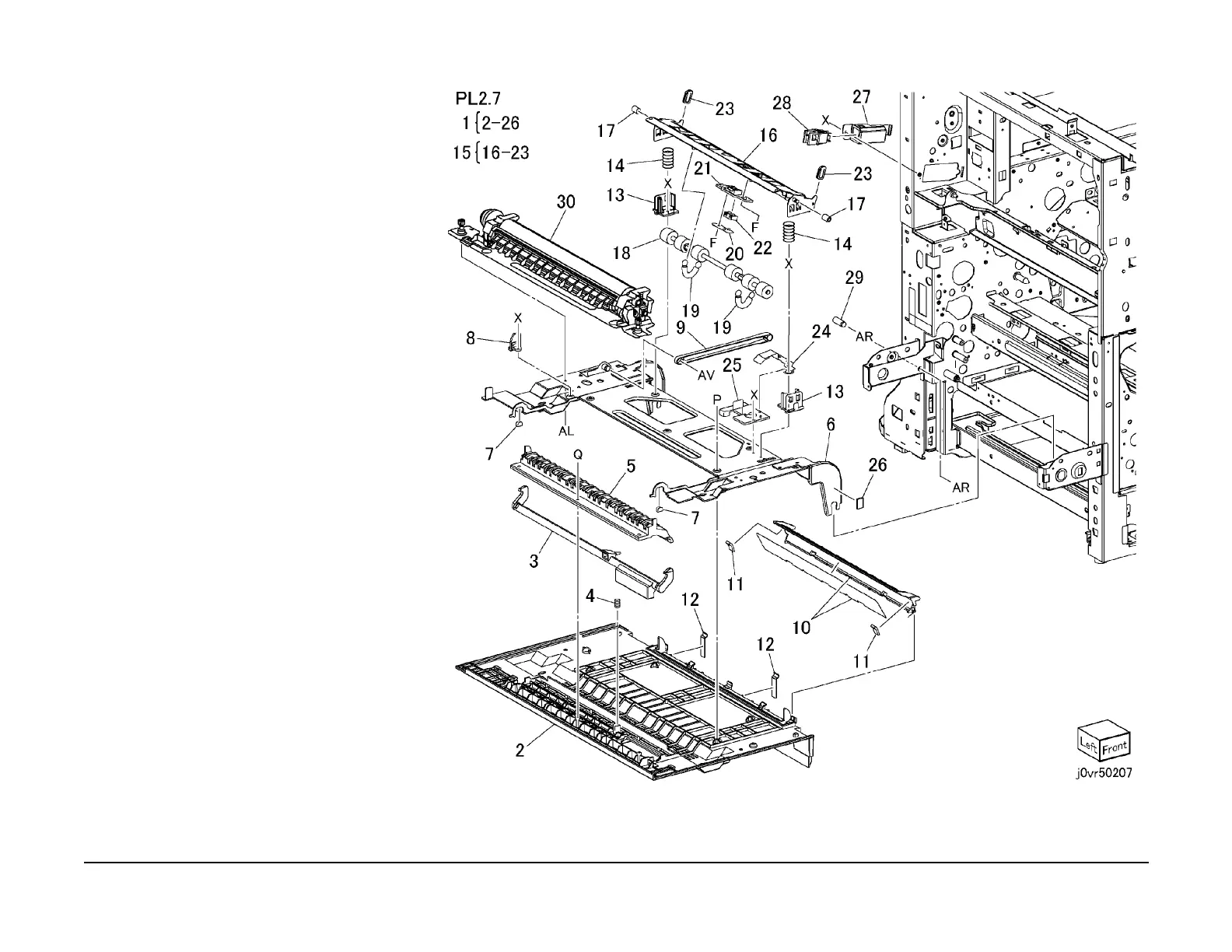

PL 2.7 Left Hand Cover
Item Part Description
1 802K85352 Left Hand Upper Cover Assembly
(REP 2.6.2)
2 – Left Hand Cover (P/O PL 2.7 Item
1)
3 003E65100 Handle
4 – Spring (P/O PL 2.7 Item 1)
5 054E23950 Cover Chute
6 – Frame (P/O PL 2.7 Item 1)
7 – Guide Handle (P/O PL 2.7 Item 1)
8 – Gear (P/O PL 2.7 Item 1)
9 849E67970 Cover Support
10 054K24060 Duplex Chute
11 – Duplex Pad (P/O PL 2.7 Item 1)
12 – Guide (P/O PL 2.7 Item 1)
13 – Chute Support (P/O PL 2.7 Item 1)
14 – Spring (P/O PL 2.7 Item 1)
15 054K30340 Pinch Chute Assembly
16 – Registration Pinch Chute (P/O PL
2.7 Item 15)
17 – Pulley (P/O PL 2.7 Item 15)
18 059K43251 Pinch Roller, Registration
19 – Extension Spring (P/O PL 2.7 Item
15)
20 – Cap (P/O PL 2.7 Item 15)
21 – Holder (P/O PL 2.7 Item 15)
22 – Reflector (P/O PL 2.7 Item 15)
23 – Guide (P/O PL 2.7 Item 15)
24 – Conductor (P/O PL 2.7 Item 1)
25 – Earth Housing (P/O PL 2.7 Item 1)
26 – Seal (P/O PL 2.7 Item 1)
27 – Interlock Switch Bracket (Not
Spared)
28 110E97990 L/H Upper Cover Interlock Switch
29 – Stud (Not Spared)
30 008R13026 2nd BTR Roll Assembly
