Xerox WorkCentre 7132 Service Documentation

January 2007
5-23
WorkCentre 7132
PL 7.1
Parts-list
Reversion 4.0

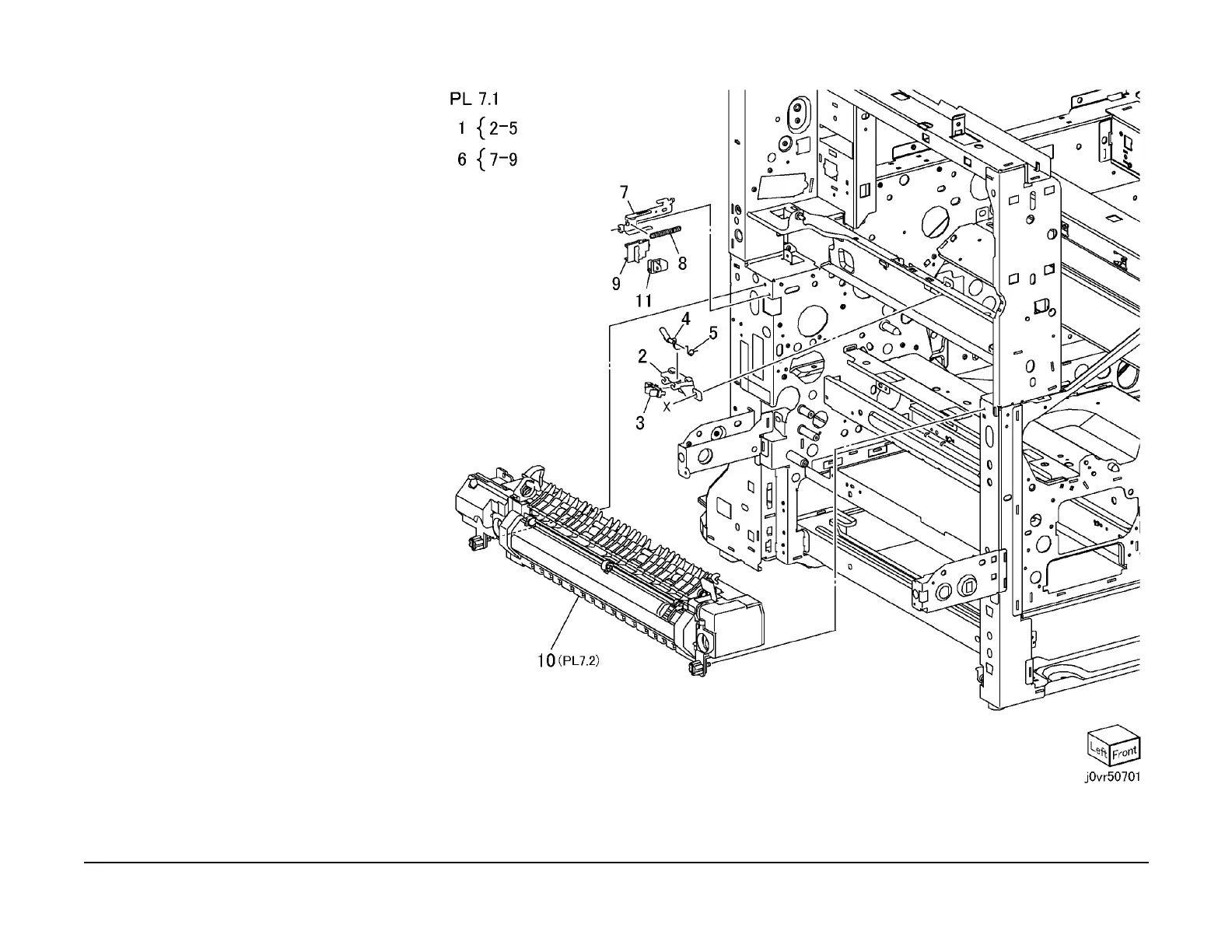

PL 7.1 Fuser Unit
Item Part Description
1 015K71820 Exit Bracket Assembly
2 – Exit Sensor Holder (P/O PL 7.1
Item 1)
3 – Fuser Exit Sensor (P/O PL 7.1 Item
1)
4 – Exit Actuator (P/O PL 7.1 Item 1)
5 – Actuator Spring (P/O PL 7.1 Item 1)
6 012K94820 Drive Link Assembly
7 – Link Housing (P/O PL 7.1 Item 6)
8 – Exit Link Spring (P/O PL 7.1 Item 6)
9 – Drive Link (P/O PL 7.1 Item 6)
10 008R13022 Fuser Assembly (110V) (REP
5.1.1)
– 008R13023 Fuser Assembly (220V) (REP
5.1.1)
11 – Link (Not Spared)
