January 2007
5-74
WorkCentre 7132
PL 17.1
Reversion 4.0
Parts-list

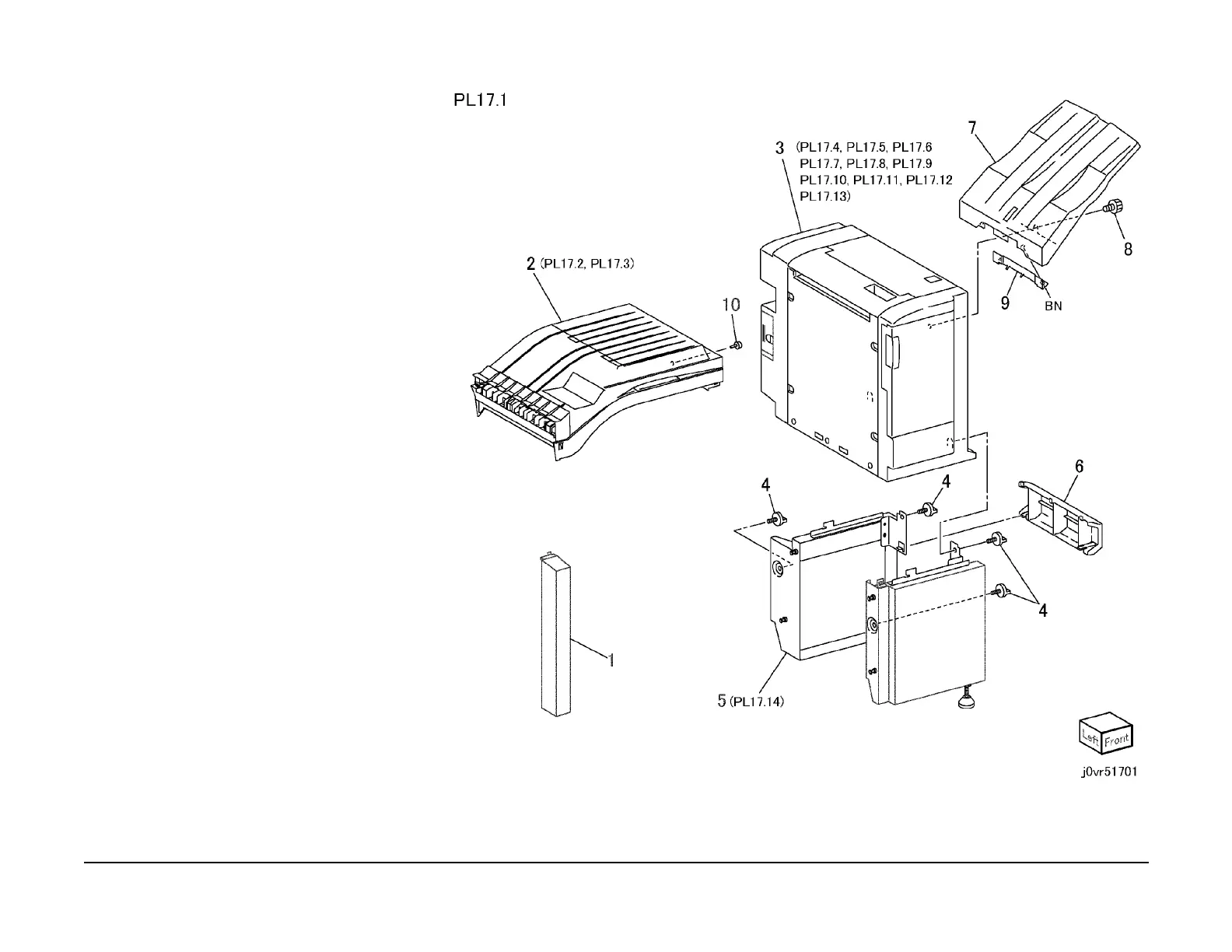

PL 17.1 Finisher Unit
Item Part Description
1 – Cover (Not Spared)
2 022K73591 H-Transport Assembly (REP
16.1.1)
3 – Finisher Assembly (Not Spared)
(REP 16.1.2)
4 – Finisher Knob Kit (Not Spared)
5 – Rack Assembly (Not Spared)
6 – Right Cover (Not Spared)
7 050E19620 Stacker Tray
8 – Screw (Not Spared)
9 – Bracket (Not Spared)
10 – Screw (Not Spared)
